BM 25 TEC2 (095309102) - Black Max Trimmer/Edger, 25.4cc, Rev 03 (2020-12) FIGURE B Parts Diagram

Trimmer/Edger, 25.4cc, Rev 03

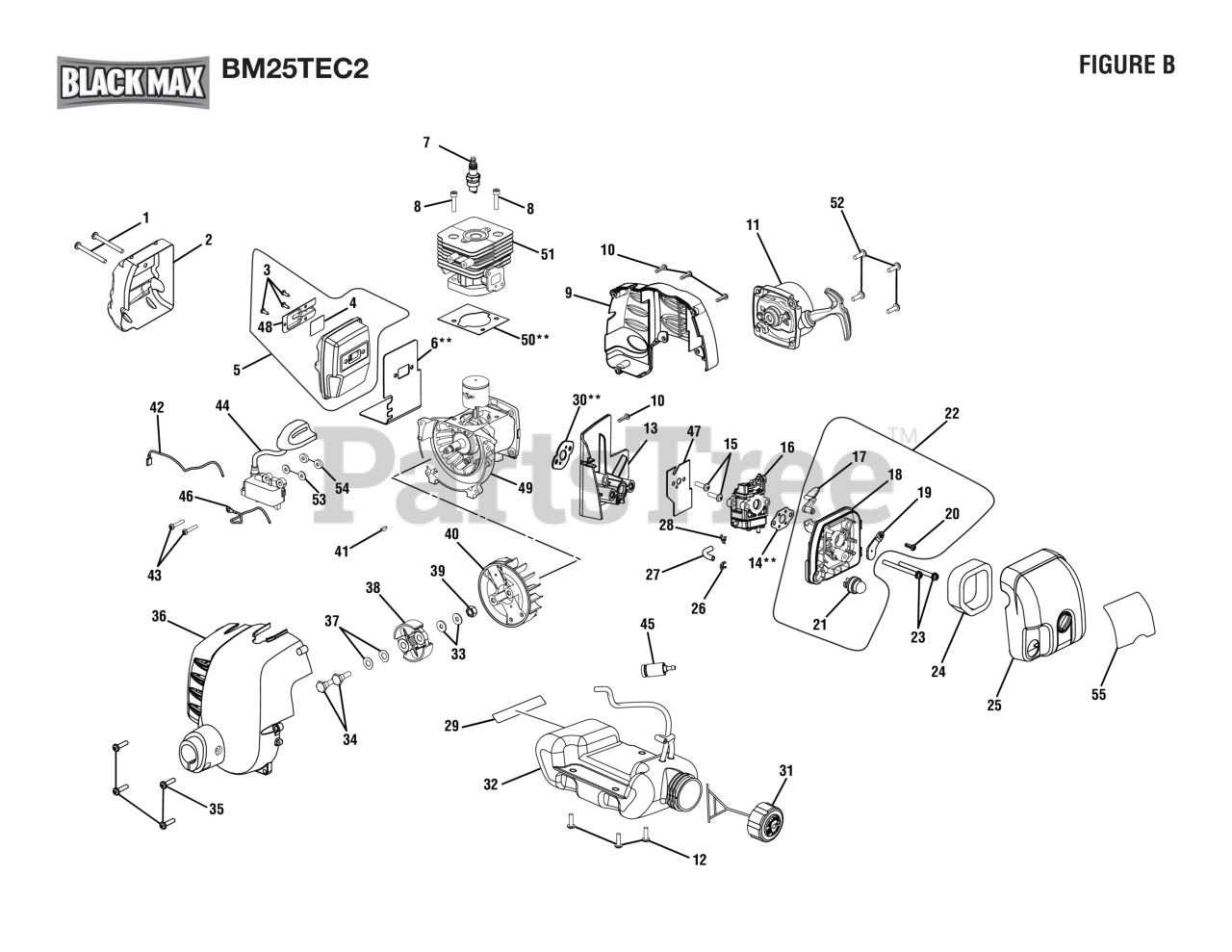

FIGURE B Parts Diagram

  • Title

1

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$1.49

$

In Stock, Qty 5

0

2

Homelite 638027002

HEAT SHIELD

$

$

Not available

3

Homelite 660870001

Screw (6-20 x 1/4 in., T20 Torx Pan Hd. S.T.)
(Superseded to 984759001)

$

$

Not available

4

Homelite 638268001

SCREEN
(Superseded to 984753001)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 300748064

Muffler Assembly

Note: (Inc. Key Nos. 3-4 and 48)

$31.99

$

Usually ships in 3-7 days

0

6

Homelite 630002032

Muffler Gasket

Note: Non-Reuseable Parts - To locate a source for replacement parts, contact us toll free at 1-800-726-5760.

$2.49

$

In Stock, only 2 left!

0

7

Homelite 870174002

Spark Plug (Champion RCJ6Y)
(Superseded to 870170001)

$10.99

$

Usually ships in 3-7 days

0

8

Homelite 660342001

Screw (M5 x 22 mm, T25 Torx Soc. Hd.)

$1.49

$

In Stock, Qty 5

0

9

Homelite 590470001

ENGINE HOUSING, REAR
(Superseded to 5947001)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 310030002

Starter Recoil Assembly

$

$

Not available

12

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.49

$

In Stock, only 4 left!

0

13

Homelite 532001001

Heat Dam

$5.99

$

Usually ships in 3-7 days

0

14

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

Note: Non-Reuseable Parts - To locate a source for replacement parts, contact us toll free at 1-800-726-5760.

$

$

Not available

15

Homelite 662210002

Screw (M5 x 30 mm, Torx T25)

$

$

Currently unavailable

16

Homelite 308480001

CARBURETOR ASSEMBLY

$

$

Not available

17

Homelite 590458027

Choke Lever
(Superseded to 590458001)

$

$

Not available

18

Homelite 518130001

CARBURETOR PLATE

$2.49

$

In Stock, only 1 left!

0

19

Homelite 590946001

Screw (M4 x 12 mm, T20 Torx Pan Hd. S.T.)
(Superseded to 5994601)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.49

$

In Stock, Qty 7

0

21

Homelite 300780002

Primer Bulb Assembly
(Superseded to 01183)

$

$

Not available

22

Homelite 308478015

Filter Housing Assembly
(Superseded to 308478004)

Note: (Inc. Key Nos. 17-21)

$6.49

$

In Stock, only 1 left!

0

23

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$1.49

$

In Stock, only 4 left!

0

24

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

25

Homelite 308207009

Air Box Cover Assembly

Note: (Inc. Key No. 55)

$2.99

$

In Stock, only 1 left!

0

26

Homelite 690699001

CLIP-HOSE (ID 4.9)
(Superseded to 6969901)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 562967010

Fuel Line (45 mm)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 690700001

Clip-hose (Id 4.9)
(Superseded to 6970001)

$1.49

$

In Stock, only 4 left!

0

29

Homelite 940654088

Warning Label (Combustion)

$1.49

$

In Stock, only 3 left!

0

30

Homelite 903279002

Heat Dam Insulator

Note: Non-Reuseable Parts - To locate a source for replacement parts, contact us toll free at 1-800-726-5760.

$

$

Not available

31

Homelite 310816020

Fuel Cap Assembly

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 308675063

Fuel Tank and Cap Assembly

Note: (Inc. Key Nos. 29 & 31)

$15.99

$

Usually ships in 3-7 days

0

33

Homelite 690695001

Washer (ID6 x OD15 x 1.2t)
(Superseded to 983788071)

$

$

Not available

34

Homelite 660353001

Clutch Shoulder Bolt (M6 x 22.5 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 660344001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6634401)

$

$

Not available

36

Homelite 300754037

Front Housing Assembly

$18.99

$

Usually ships in 3-7 days

0

37

Homelite 690696001

Washer (Curved)
(Superseded to 6969601)

$1.49

$

In Stock, only 3 left!

0

38

Homelite 307091001

Clutch Assembly

$

$

Not available

39

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

40

Homelite 640574002

Flywheel

$10.99

$

Usually ships in 3-7 days

0

41

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

42

Homelite 290143001

Lead Wire Assembly, Black
(Superseded to 2914301)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 660968004

Screw (M4 x 22 mm, T20 Torx Slotted Recessed Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 290178035

Coil Boot Assembly

$27.99

$

Usually ships in 3-7 days

0

45

Homelite 310976001

Fuel Filter

$5.99

$

In Stock, Qty 12

0

46

Homelite 290143002

Lead Wire Assembly, Red
(Superseded to 2914302)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 901697001

Gasket

Note: Non-Reuseable Parts - To locate a source for replacement parts, contact us toll free at 1-800-726-5760.

$1.49

$

In Stock, Qty 5

0

48

Homelite 638267001

Trimmer Outlet

$22.99

$

Usually ships in 3-7 days

0

49

Homelite 300749010

Crankcase Assembly.

$72.99

$

In Stock, only 1 left!

0

50

Homelite 900709007

Gasket

Note: Non-Reuseable Parts - To locate a source for replacement parts, contact us toll free at 1-800-726-5760.

$1.49

$

In Stock, Qty 6

0

51

Homelite 642368001

Cylinder

$38.99

$

Usually ships in 3-7 days

0

52

Homelite 660351001

Cap Screw w/Washers (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6635101)

$1.49

$

In Stock, Qty 9

0

53

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$1.49

$

In Stock, Qty 5

0

54

Homelite 590462001

Phenolic Spacer (Ignition Module)

$1.99

$

In Stock, only 2 left!

0

55

Homelite 940686191

Start Instruction Label

$

$

Not available

Homelite 000998216

Spark Arrestor Kit (Inc. Key Nos. 3-4 and 6)
(Superseded to 986179001)

Note: Not Shown | (Inc. Key Nos. 3-4 & 6)

$

$

Not available

Homelite 120900107

High Altitude Kit (Walbro)

Note: Not Shown

$8.99

$

Usually ships in 3-7 days

0
