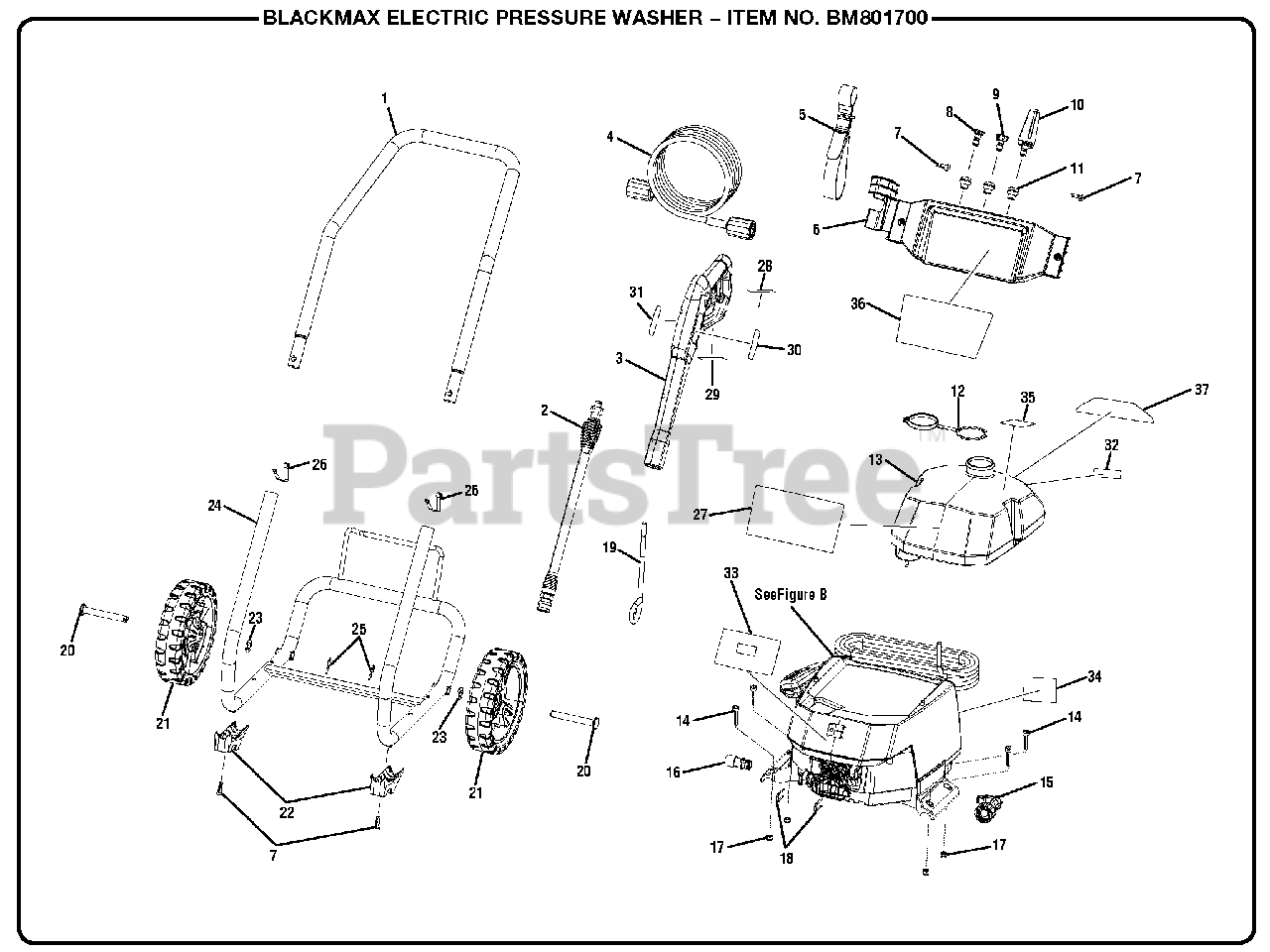

BM 801700 (090079274) - Black Max 3000 PSI Pressure Washer Figure A Parts Diagram

3000 PSI Pressure Washer

Figure A Parts Diagram

  • Title

1

Homelite 310224072

Handle Assembly

Note: (Inc Key No 26)

$

$

Not available

2

Homelite 308494065

Spray Wand
(Superseded to 308494075)

$26.99

$

In Stock, only 2 left!

0

3

Homelite 308760041

Trigger Handle

$

$

Not available

4

Homelite 308835065

Hose

$54.99

$

Usually ships in 3-7 days

0

5

Homelite 310801004

Hose Storage Strap

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 518790022

Performance Panel

$

$

Not available

7

Homelite 660481019

Bolt (M6 x 20 mm, Philips Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

8

Homelite 308706013

Soap Nozzle

$2.49

$

In Stock, only 4 left!

0

9

Homelite 308698028

15deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

10

Homelite 308311014

Turbo Nozzle

$

$

Not available

11

Homelite 561383021

Nozzle Grommet

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 310650007

Soap Tank Cap
(Superseded to 310650004)

$3.49

$

In Stock, Qty 6

0

13

Homelite 580875018

Soap Tank

$

$

Not available

14

Homelite 660481015

Screw (M6 x 40 mm, Hex Hd.)

$

$

Not available

15

Homelite 308861007

Inlet Pump Assembly

$

$

Not available

16

Homelite 308862005

Outlet Pump Assembly
(Superseded to 308862007)

$13.99

$

In Stock, only 2 left!

0

17

Homelite 678460001

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678799013

U Clip

$2.49

$

In Stock, only 4 left!

0

19

Homelite 570728012

Siphon Tube

$

$

Not available

20

Homelite 620599018

Wheel Axle

$

$

Not available

21

Homelite 308451054

Wheel

$

$

Not available

22

Homelite 523406006

Foot Pad

$

$

Not available

23

Homelite 678889003

Washer (OD125 x ID24 x 2t)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 308582062

Frame Tubing

$

$

Not available

25

Homelite 678238002

Hitch Pin
(Superseded to 678238004)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 308421002

Spring Clip w/Button

$

$

Not available

27

Homelite 940779146

Performance Label

$

$

Not available

28

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

29

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 940786028

Trigger Handle Label

$

$

Not available

31

Homelite 940324030

Trigger Handle Warning Label (English)

$

$

Not available

32

Homelite 941486009

Inquires Label

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940698035

On/Off Switch Label

$

$

Not available

34

Homelite 940894025

Danger Icon Label

$

$

Not available

35

Homelite 941608005

Detergent Tank Label

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 940705270

Logo Label

$

$

Not available

37

Homelite 940617148

Quick Start Label

$

$

Not available

Homelite 991000338

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000339

Quick Reference Guide (BM801700)

Note: Not Shown

$

$

Not available
