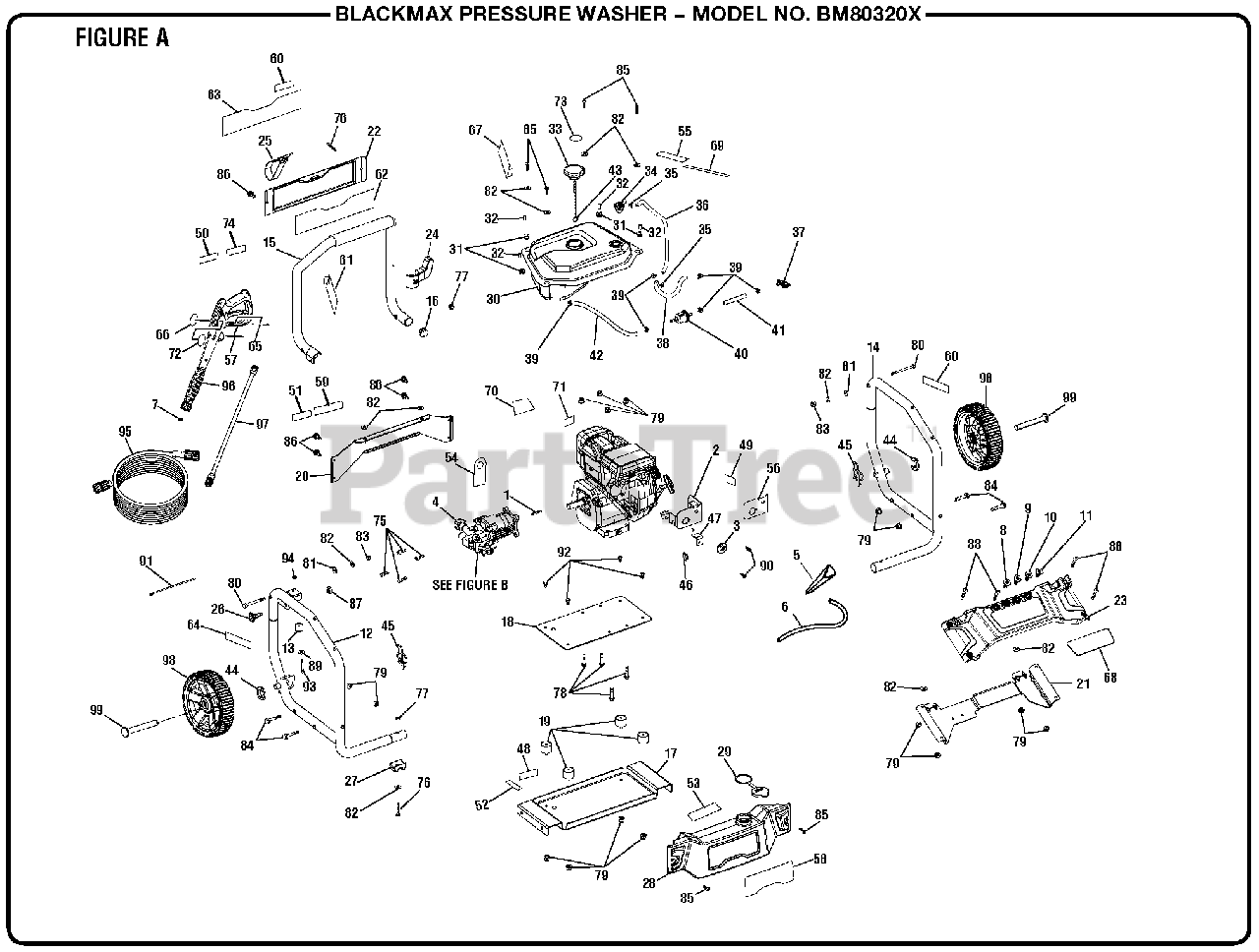

BM 80320 X (090079357) - Black Max Pressure Washer, Rev 01 (2017-07) Figure A Parts Diagram

Pressure Washer, Rev 01

Figure A Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 639139001

Fuel Valve Bracket

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 519813025

Fuel Valve Bezel

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 308653071

Pump

$162.99

$

In Stock, only 1 left!

0

5

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 561399016

Chemical Siphon Tube

$

$

Not available

7

Homelite 570742072

O-Ring

$2.49

$

In Stock, Qty 9

0

8

Homelite 308697028

0deg Nozzle

$4.49

$

In Stock, only 1 left!

0

9

Homelite 308699028

25deg Nozzle

$4.49

$

In Stock, only 1 left!

0

10

Homelite 308700028

40deg Nozzle

$4.49

$

In Stock, only 1 left!

0

11

Homelite 308706011

Soap Nozzle (Blue)

$12.99

$

In Stock, only 2 left!

0

12

Homelite 310703025

Main Frame Assembly (Left)

Note: (Inc. Key Nos. 13, 89 & 93-94)

$

$

Not available

13

Homelite 570712001

Rubber Bumper

$0.99

$

Usually ships in 3-7 days

0

14

Homelite 310704030

Main Frame Assembly (Right)

$40.99

$

Usually ships in 3-7 days

0

15

Homelite 308940010

Handle Assembly

Note: (Inc. Key No. 16)

$25.99

$

Usually ships in 3-7 days

0

16

Homelite 518932001

Tube Cap

$0.99

$

Usually ships in 3-7 days

0

17

Homelite 638662041

Engine Plate

$

$

Not available

18

Homelite 638662042

Spacer Plate

$

$

Not available

19

Homelite 570356012

Isolator

$

$

Not available

20

Homelite 638960014

Fuel Tank Support (Rear)

$

$

Not available

21

Homelite 638960015

Fuel Tank Support (Front)

$

$

Not available

22

Homelite 638671016

Hose Holder Panel

$

$

Not available

23

Homelite 518790025

Faceplate Panel

$14.99

$

Usually ships in 3-7 days

0

24

Homelite 519313018

Upper Wand Holder

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 308350003

Hose Holder Strap

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 308910010

Handle Lock Assembly

$

$

Not available

27

Homelite 561307007

Foot Pad

$

$

Not available

28

Homelite 580875020

Soap Tank

$

$

Not available

29

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

30

Homelite 310711185

Fuel Tank Assembly

Note: (Inc. Key Nos. 31-32)

$53.99

$

Usually ships in 3-7 days

0

31

Homelite 519832003

Fuel Tank Bushing

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 518528002

Fuel Tank Bushing Insert

$

$

Not available

33

Homelite 310720026

Fuel Cap

$23.99

$

In Stock, only 1 left!

0

34

Homelite 310854002

Vapor Vent

$

$

Not available

35

Homelite 678409008

Hose Clamp (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 570358181

Vapor Hose (550 mm)

$

$

Not available

37

Homelite 308459002

Fuel Valve

$19.99

$

Usually ships in 3-7 days

0

38

Homelite 570358164

Fuel Hose (245 mm)

$

$

Not available

39

Homelite 678408006

Hose Clamp (1/2 in.)

$1.99

$

In Stock, only 4 left!

0

40

Homelite 308733003

Fuel Filter

$

$

Not available

41

Homelite 570358078

Fuel Hose (90 mm)

$

$

Not available

42

Homelite 570358159

Fuel Hose (265 mm)

$6.49

$

Usually ships in 3-7 days

0

43

Homelite 678899007

Ring Clip

$1.49

$

In Stock, only 4 left!

0

44

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 678899001

Wheel Axle Ring Clip

$

$

Not available

46

Homelite 308762005

Vapor Adapter

$

$

Not available

47

Homelite 639139003

Vapor Adapter Bracket

$

$

Not available

48

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 940647130

Choke & Engine Switch Label

$

$

Not available

50

Homelite 940947006

Combustion Label (English/Spanish)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940894022

Danger Label

$

$

Not available

52

Homelite 940676032

Data Warnings Label (English/Spanish)

$

$

Not available

53

Homelite 940608028

Soap Dilution Label

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 961454001

Oil Dipstick Hangtag

$1.49

$

Usually ships in 3-7 days

0

55

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

56

Homelite 941494019

Fuel Valve Label

$

$

Not available

57

Homelite 940786047

Trigger Handle Rating Label

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 941714006

Soap Tank Label

$

$

Not available

59

Homelite 940680081

Hot Surface & Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 941486009

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 961039005

Standard Nozzle Hangtag

$

$

Not available

62

Homelite 940779178

Performance Label

$

$

Not available

63

Homelite 940617172

Quick Start Label

$

$

Not available

64

Homelite 940758020

Handle Release Label

$1.49

$

Usually ships in 3-7 days

0

65

Homelite 940654228

Trigger Handle Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 940726016

Black Max Wand Logo Label

$

$

Not available

67

Homelite 940473011

Danger Hangtag

$

$

Not available

68

Homelite 940705343

Black Max Logo Label

$

$

Not available

69

Homelite 941167001

Extended Run Label

$

$

Not available

70

Homelite 940608030

GC190 Label

$

$

Not available

71

Homelite 941176001

Not For Sale In Ca Label

$

$

Not available

72

Homelite 940654084

Trigger Handle Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 940872022

Remove Cap Fuel Stabilizer Label (English)

$

$

Not available

74

Homelite 940872023

Remove Cap Fuel Stabilizer Label (Spanish)

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 660739002

Screw (5/16-24 x 23 mm, Cap Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

76

Homelite 661503015

Bolt (M6 x 48 mm, T30 Torx Pan Hd.)

$

$

Not available

77

Homelite 678610006

Lock Nut (M6)

$

$

Not available

78

Homelite 660764002

Bolt (M8 x 40 mm, Flange Hex Hd.)

$

$

Not available

79

Homelite 678774002

Lock Nut (M8)

$

$

Not available

80

Homelite 678406010

Connection Pin

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 518724003

Spacer

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

83

Homelite 678016006

Lock Nut (1/4-20 in.)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

84

Homelite 660962001

Bolt (M8 x 55 mm, Flange Hex Hd.)
(Superseded to 660969001)

$

$

Not available

85

Homelite 661834005

Bolt (M6 x 25 mm,T30 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

86

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hex Hd.)

$1.49

$

In Stock, Qty 9

0

87

Homelite 678518002

Nut (1/2-20 in.)

$2.99

$

Usually ships in 3-7 days

0

88

Homelite 661554003

Bolt (M8 x 50 mm, Button Hd.)

$1.49

$

Usually ships in 3-7 days

0

89

Homelite 678600002

Washer (M4)

$

$

Not available

90

Homelite 660224013

Bolt (M6 x 16 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

91

Homelite 900333015

Wire Tie

$

$

Not available

92

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

93

Homelite 661555001

Bolt (M4 x 12 mm, Button Hd.)

$

$

Not available

94

Homelite 678610002

Lock Nut (M4)

$

$

Not available

95

Homelite 308835080

Hose (50 Ft.)

$77.99

$

Usually ships in 3-7 days

0

96

Homelite 308760019

Trigger Handle

Note: (Inc. Key Nos. 57 and 72)

$27.99

$

In Stock, only 1 left!

0

97

Homelite 308506014

Wand Assembly

$

$

Not available

98

Homelite 308451065

Wheel

$27.99

$

Usually ships in 3-7 days

0

99

Homelite 620598001

Wheel Axle

$2.49

$

Usually ships in 3-7 days

0

Homelite 991000839

O-Ring Kit Insert

Note: Not Shown

$

$

Not available

Homelite 991000106

Black Max EPA/EVAP Warranty

$

$

Not available

Homelite 991000763

Operator's Manual

$

$

Not available

Homelite 991000764

Quick Reference Guide

$1.49

$

Usually ships in 3-7 days

0
