BM 803300 H VNM (095079452) - Black Max 3300 PSI Pressure Washer, Rev 01 (2020-11) FIGURE A Parts Diagram

3300 PSI Pressure Washer, Rev 01

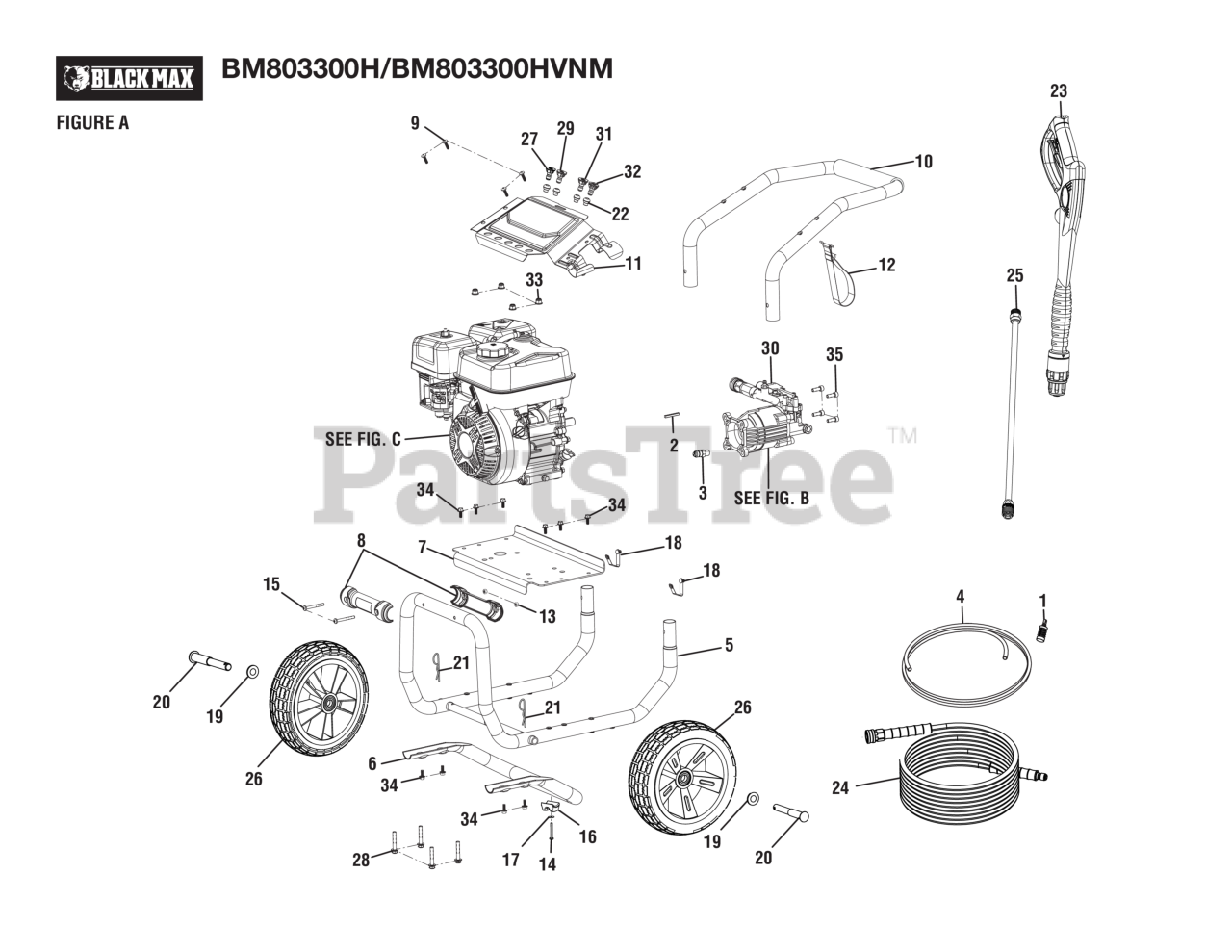

FIGURE A Parts Diagram

  • Title

1

Homelite 308103015

Detergent Injection Filter

$2.99

$

In Stock, only 4 left!

0

2

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 678169004

Thermal Release Valve.

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 561399003

Detergent Injection Tube

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 308471056

Main Frame Assembly

Note: (BM803300HVNM, Inc. Key 18,)

$89.99

$

Usually ships in 3-7 days

0

6

Homelite 308774008

Rear Frame Assembly
(Superseded to 308774007)

Note: (BM803300HVNM, Inc. Key Nos. 14 & 16-17)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite 638662029

ENGINE PLATE

Note: (BM803300HVNM)

$

$

Not available

8

Homelite 522951001

Lower Frame Cover

$

$

Not available

9

Homelite 660481020

Screw (M6 x 20 mm, Phillips Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638662055

Handle Assembly

Note: (BM803300HVNM)

$83.99

$

Usually ships in 3-7 days

0

11

Homelite 638671027

Performance Panel w/Wand Holder

$43.99

$

Usually ships in 3-7 days

0

12

Homelite 308350003

Hose Holder Strap

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

14

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

$

$

Not available

15

Homelite 661834002

Screw (M6 x 55 mm, T3 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 561307007

Rubber Foot

$

$

Not available

17

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

18

Homelite 308421004

Lock Button w/Spring Clip.

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

20

Homelite 620599044

Axle

$11.99

$

In Stock, only 2 left!

0

21

Homelite 678238001

Hitch Pin

$2.49

$

In Stock, Qty 10

0

22

Homelite 561383029

Nozzle Grommet

$2.49

$

In Stock, Qty 18

0

23

Homelite 308760081

Trigger Handle

$122.99

$

In Stock, only 2 left!

0

24

Homelite 308835094

Hose (35 ft.)
(Superseded to 308835101)

$106.99

$

In Stock, only 1 left!

0

25

Homelite 308506014

Extension Wand

$

$

Not available

26

Homelite 308451083

Wheel

$70.99

$

Usually ships in 3-7 days

0

27

Homelite 308697029

Nozzle, 0 deg

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 660764002

Bolt (M8 x 1.25 x 40 mm, Flange Hd.)

$

$

Not available

29

Homelite 308699029

25 deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

30

Homelite 308653098

Pump

$315.99

$

Usually ships in 3-7 days

0

31

Homelite 308700030

40 deg Nozzle

$21.99

$

Usually ships in 3-7 days

0

32

Homelite 308706015

Soap Nozzle

$3.99

$

In Stock, only 1 left!

0

33

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$2.49

$

In Stock, Qty 6

0

34

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

35

Homelite 660739002

Screw (5/16-24 x 23 mm, Hex Soc. Cap Hd.)

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000015

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000592

Emissions Insert

Note: Not Shown

$

$

Currently unavailable
