BM 80721 SB (090079362) - Black Max Pressure Washer, Electric, Rev 01 (2017-09) Figure A Parts Diagram

Pressure Washer, Electric, Rev 01

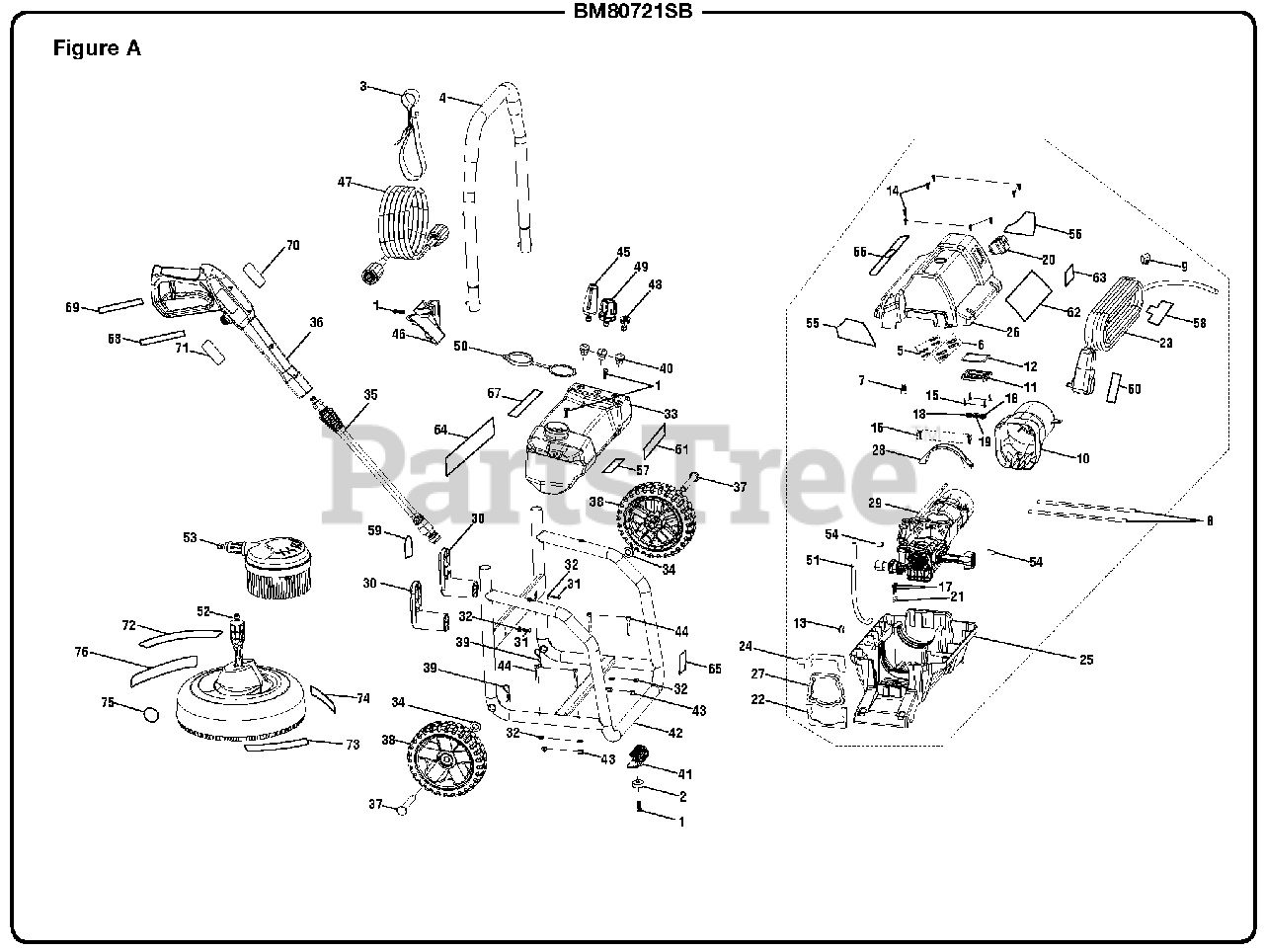

Figure A Parts Diagram

  • Title

1

Homelite 660481019

Bolt (M6 x 20 mm)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 570554018

Rubber Foot

$

$

Not available

3

Homelite 310801004

Hose Storage Strap

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 308638050

Handle Assembly

$14.99

$

Usually ships in 3-7 days

0

5

Homelite 630236004

Terminal Connector

$

$

Not available

6

Homelite 527784005

Plastic Sleeve

$

$

Not available

7

Homelite 870601001

Wire Nut

$

$

Not available

8

Homelite 570113003

Thermal Sleeve

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 528499001

Cord Clip

$

$

Not available

10

Homelite 522038007

Air Shroud

$7.99

$

Usually ships in 3-7 days

0

11

Homelite 570417002

Switch Cover

$

$

Not available

12

Homelite 570740016

Switch Cover Gasket

$

$

Not available

13

Homelite 561383025

Grommet (Housing)

$

$

Not available

14

Homelite 661403016

Screw (M4.2 x 15 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 661403015

Screw (M2.9 x 14 mm, L.H.)

$

$

Not available

16

Homelite 661403014

Screw (M4.2 x 16 mm, Washer Hd.)

$

$

Not available

17

Homelite 661610008

Screw (M3.5 x 20 mm, Button Hd.)

$

$

Not available

18

Homelite 561383012

Grommet (ID7.2 x OD11)

$

$

Not available

19

Homelite 561383024

Motor Grommet

$

$

Not available

20

Homelite 760504007

Main Switch

$12.99

$

Usually ships in 3-7 days

0

21

Homelite 522051003

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 525894001

Gasket

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 290426022

Power Cord

$

$

Not available

24

Homelite 525894002

Gasket

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 522038004

Bottom Housing

$29.99

$

Usually ships in 3-7 days

0

26

Homelite 522032027

Top Housing

$

$

Not available

27

Homelite 980414010

Foam

$

$

Not available

28

Homelite 525893001

Bracket/Motor Strap

$2.49

$

Usually ships in 3-7 days

0

29

Motor and Pump Assembly

Note: Techtronic Industries Power Equipment, Inc. will not provide a complete motor/pump as a replacement part. Contact our service department for assistance.

$

$

Not available

30

Homelite 522037003

Cord Wrap Arm

$4.99

$

Usually ships in 3-7 days

0

31

Homelite 661403019

Screw (M4.8 x 19 mm, Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 678600010

Washer (M6)

$

$

Not available

33

Homelite 580875026

Soap Tank

$

$

Not available

34

Homelite 678889003

Washer (ID12.5 x OD24 x 2t)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 308494075

Spray Wand

$26.99

$

In Stock, only 2 left!

0

36

Homelite 308760059

Trigger Handle

$

$

Not available

37

Homelite 620599029

Wheel Axle

$2.99

$

In Stock, only 4 left!

0

38

Homelite 308603007

Wheel

$8.99

$

Usually ships in 3-7 days

0

39

Homelite 678238004

Cotter Pin

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 561383021

Nozzle Grommet

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 523406008

Plastic Foot

$

$

Not available

42

Homelite 308582071

Main Frame

$47.99

$

Usually ships in 3-7 days

0

43

Homelite 678460001

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 660481015

Bolt (M6 x 40 mm)

$

$

Not available

45

Homelite 308311014

Turbo Nozzle

$

$

Not available

46

Homelite 519313010

Trigger Handle Holder

$2.49

$

In Stock, Qty 6

0

47

Homelite 308835065

High Pressure Hose

$54.99

$

Usually ships in 3-7 days

0

48

Homelite 308698023

15deg Nozzle

$

$

Not available

49

Homelite 308311023

Soap Blaster Nozzle

$22.99

$

Usually ships in 3-7 days

0

50

Homelite 310650004

Detergent Cap

$3.49

$

In Stock, Qty 6

0

51

Homelite 561399009

Detergent Injection Hose

$

$

Not available

52

Homelite 308999035

Surface Cleaner Attachment (11 in.)

$113.99

$

Usually ships in 3-7 days

0

53

Homelite 308073011

Rotary Brush Attachment

$34.99

$

Usually ships in 3-7 days

0

54

Homelite 570570002

Bushing

$

$

Not available

55

Homelite 940654309

Regulatory Danger Label

$

$

Not available

56

Homelite 940707084

Danger Label

$

$

Not available

57

Homelite 941608005

Soap Dilution Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940324013

Cordwrap Warning Label

$2.99

$

Usually ships in 3-7 days

0

59

Homelite 941076001

Cord Unlock Label

$

$

Not available

60

Homelite 940603006

Cord Plug Label

$

$

Not available

61

Homelite 940779203

Performance Label

$

$

Not available

62

Homelite 940705378

Logo Label

$

$

Not available

63

Homelite 940734079

On/Off Switch Label

$

$

Not available

64

Homelite 940617187

Quick Start Label

$

$

Not available

65

Homelite 941486009

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940786041

Nozzle Selection Label

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 940608036

Detergent Tank Label

$

$

Not available

68

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

69

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 940324040

Trigger Handle Warning Label (English)

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 940786057

Trigger Handle Logo Label

$

$

Not available

72

Homelite 940779204

Performance Label

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 940654299

Surface Cleaner Danger Label

$2.49

$

Usually ships in 3-7 days

0

74

Homelite 940324041

Surface Cleaner Rating Label

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 940507002

No Hands Label (Cleaning Deck)

$

$

Not available

76

Homelite 940705289

Logo Label

$

$

Currently unavailable

Homelite 995000132

Operator's Manual

Note: Not Shown

$

$

Not available
