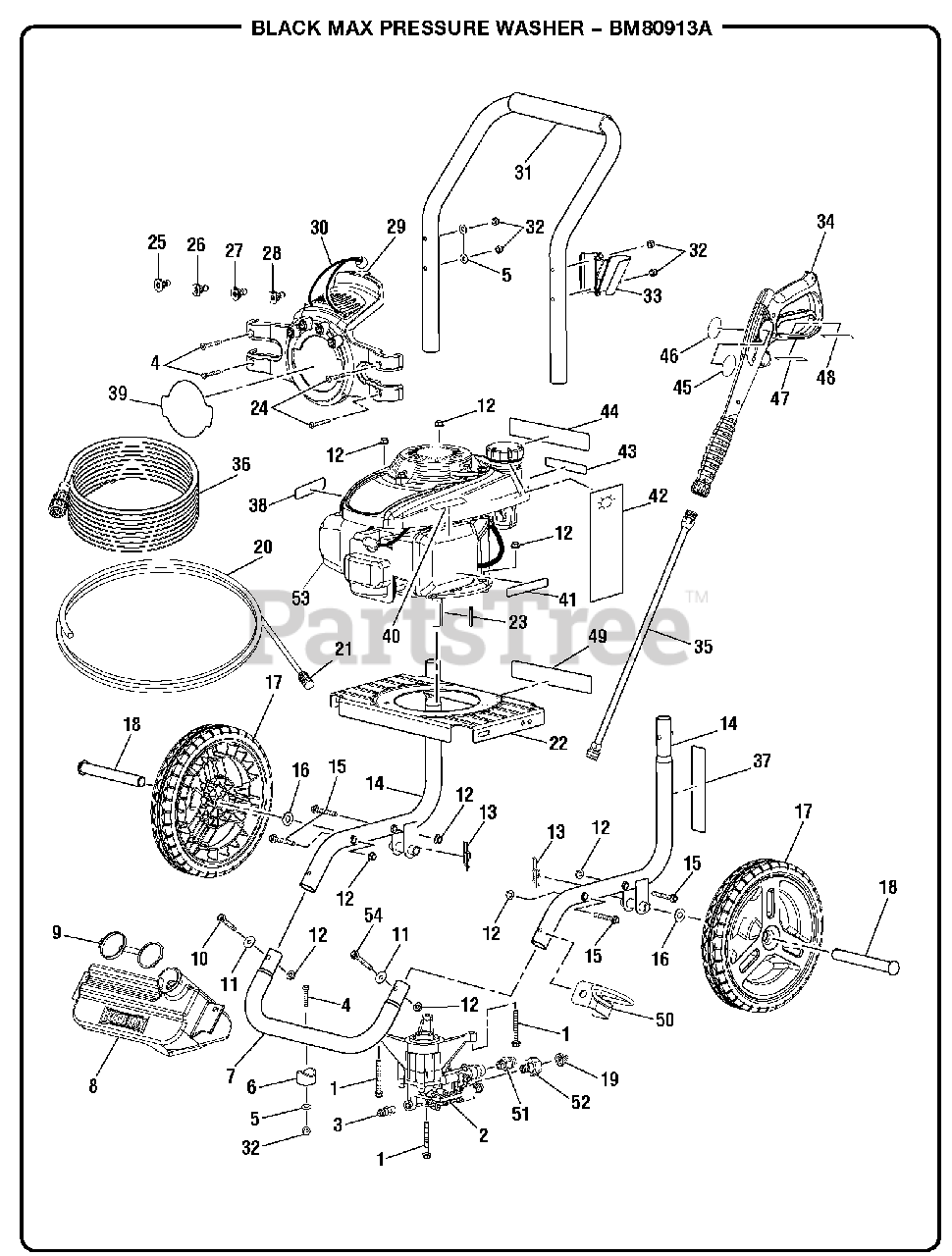

BM 80913 A - Black Max 2600 PSI Pressure Washer General Assembly Parts Diagram

2600 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 12

0

2

Homelite 308653009

Pump
(Superseded to 308653058)

$185.99

$

Usually ships in 3-7 days

0

3

Homelite 678169004

Thermal Release Valve

$

$

Not available

4

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

5

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

6

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

7

Homelite 308659004

Front Frame
(Superseded to 310742001)

$

$

Not available

8

Homelite 518792003

Soap Tank

$

$

Not available

9

Homelite 310650002

Soap Tank Cap

$

$

Not available

10

Homelite 661505004

Bolt (M8 x 45 mm)

$1.49

$

In Stock, only 1 left!

0

11

Homelite 638675001

Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Hex Nut (M8 x 1-1/4 in.)

$

$

Not available

13

Homelite 678899001

Ring Clip

$

$

Not available

14

Homelite 308471010

Main Frame Assembly

$

$

Not available

15

Homelite 660962001

Bolt w/Washer (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$

$

Not available

16

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 308451019

Wheel

$

$

Not available

18

Homelite 620599007

Axle

$2.49

$

In Stock, only 2 left!

0

19

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

20

Homelite 561399003

Chemical Siphon Tube

$1.99

$

In Stock, only 1 left!

0

21

Homelite 518391001

Chemical Siphon Filter

$1.49

$

In Stock, only 3 left!

0

22

Homelite 638662003

Engine Plate

$32.99

$

Usually ships in 3-7 days

0

23

Homelite 678041003

Output Shaft Key (3/16 in. x 40 mm)
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 661501002

Screw (1/4-20 x 2.27 in., T30 Torx Hd.)
(Superseded to 660592006)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 308706003

Soap Nozzle

$

$

Not available

27

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

28

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

29

Homelite 310673005

Hose and Nozzle Holder Assembly

$

$

Not available

30

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 308638004

Handle w/Foam

$

$

Not available

32

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

33

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

35

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

36

Homelite 308907005

Hose (25 ft., 3000 psi)
(Superseded to 308835006)

$33.99

$

Usually ships in 3-7 days

0

37

Homelite 940617040

Label (Pump Quick Start)

$

$

Not available

38

Homelite 940680027

Label (Hot Muffler)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940779013

Label (Performance)

$

$

Not available

40

Homelite 941486001

Label (Inquires)

$

$

Not available

41

Homelite 940617045

Label (Engine Quick Start)

$

$

Not available

42

Homelite 940971021

Label (Oil Hang Tag)

$

$

Not available

43

Homelite 940654088

Label (UL Fire Warning)

$1.49

$

In Stock, only 3 left!

0

44

Homelite 940654081

Label (Warning)

$

$

Not available

45

Homelite 940654084

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940726016

Label (Wand Logo)

$

$

Not available

47

Homelite 940654089

Label (Warning)

$1.49

$

In Stock, only 1 left!

0

48

Homelite 940786006

Label (Wand Rating)

$

$

Not available

49

Homelite 940599012

Data Label

$

$

Currently unavailable

50

Homelite 678243005

Wand Holder

$

$

Not available

51

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

52

Homelite 308861003

Inlet Tube

$12.99

$

Usually ships in 3-7 days

0

53

Engine

$

$

Not available

54

Homelite 661505003

Bolt (M8 x 50 mm, Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

Homelite 308452002

Detergent Suction Kit

Note: (Not Shown)

$3.49

$

Usually ships in 3-7 days

0

Homelite 987000485

Operator's Manual

$

$

Not available

Homelite 987000970

Replacement Parts List

$

$

Currently unavailable
