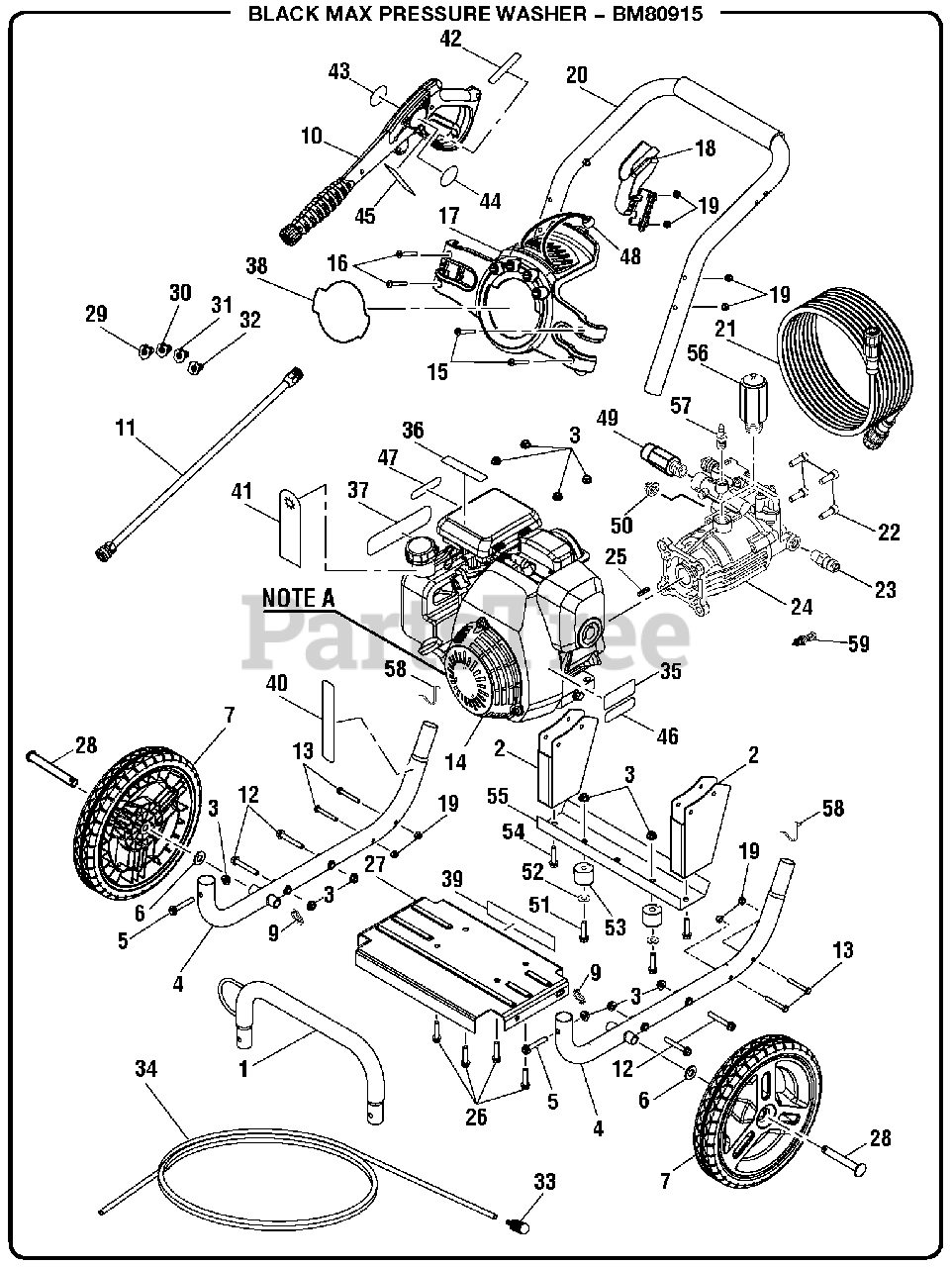

BM 80915 - Black Max 3000 PSI Pressure Washer General Assembly Parts Diagram

3000 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308659006

Front Frame

$27.99

$

Usually ships in 3-7 days

0

2

Homelite 638236005

Rear Foot
(Superseded to 308909006)

$25.99

$

Usually ships in 3-7 days

0

3

Homelite 678774001

Hex Nut (M8 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 308471013

Main Frame Assembly

$

$

Not available

5

Homelite 661505003

Bolt (M8 x 50 mm, Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

7

Homelite 308451006

Wheel
(Superseded to 308451019)

$

$

Not available

8

Homelite 678189004

Acorn Nut

$

$

Not available

9

Homelite 519857001

Wheel Bushing (5/8 in.)

$

$

Not available

10

Homelite 308413009

Trigger Handle Assembly
(Superseded to 308760019)

$

$

Not available

11

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

12

Homelite 660962001

Bolt w/Washer (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 660869005

Bolt (1/4-20 x 52 mm Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Engine (Honda GC190)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

15

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

16

Homelite 661501002

Screw (1/4-20 x 2.27 in., T30 Torx Hd.)
(Superseded to 660592006)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 310673005

Hose and Nozzle Holder Assembly

$

$

Not available

18

Homelite 519313001

Wand Holder.

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$

$

Not available

20

Homelite 308638004

Handle w/Foam

$

$

Not available

21

Homelite 308835006

Hose (25 ft., 3000 psi)

$67.99

$

Usually ships in 3-7 days

0

22

Homelite 660739002

Screw (5/16-24 x 23 mm Soc Hd.)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 678169004

Thermal Release Valve

$16.99

$

Usually ships in 3-7 days

0

24

Homelite 309515003

Pump

$463.99

$

Usually ships in 3-7 days

0

25

Homelite 678041003

Output Shaft Key (3/16 in. x 40 mm)
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 661505005

Bolt (M8 x 36 mm, Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 638662006

Engine Plate

$

$

Not available

28

Homelite 620599005

Axle

$

$

Not available

29

Homelite 308697013

0deg Nozzle

$21.99

$

In Stock, only 1 left!

0

30

Homelite 308699013

25deg Nozzle

$11.99

$

Usually ships in 3-7 days

0

31

Homelite 308700013

40deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 308706006

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 518391001

Detergent Injection Filter

$2.49

$

In Stock, only 1 left!

0

34

Homelite 561399003

Detergent Injection Tube

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 940778007

Label (Hot Surface)

$

$

Not available

36

Homelite 940617039

Label (Engine Quick Start)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 940654081

Label (Warning)

$

$

Not available

38

Homelite 940779011

Label (Performance)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 940599013

Data Label

$

$

Currently unavailable

40

Homelite 940617038

Label (Pump Quick Start)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 940971021

Label (Oil Hang Tag)

$

$

Not available

42

Homelite 940786006

Label (Wand Rating)

$

$

Not available

43

Homelite 940726016

Label (Wand Logo)

$

$

Not available

44

Homelite 940654084

Label (Wand Warning)

$3.49

$

In Stock, only 1 left!

0

45

Homelite 940654089

Label (Warning)

$1.49

$

In Stock, only 1 left!

0

46

Homelite 940654088

Label (UL Fire Warning)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940486001

Label (Inquires)

$

$

Currently unavailable

48

Homelite 310664001

Bungee Cord and Bead Assembly

$4.49

$

In Stock, only 2 left!

0

49

Homelite 308862003

Outlet Tube

$10.99

$

In Stock, only 1 left!

0

50

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

51

Homelite 661503001

Bolt (1/4-20 x 25 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

53

Homelite 561307002

Rubber Foot
(Superseded to 308909006)

$25.99

$

Usually ships in 3-7 days

0

54

Homelite 661503002

Bolt (1/4-20 x 19 mm)

$1.49

$

Usually ships in 3-7 days

0

55

Homelite 678299003

Crossbar

$

$

Currently unavailable

56

Homelite 310606001

Vent Cap

$7.99

$

Usually ships in 3-7 days

0

57

Homelite 308452002

Detergent Suction Kit

$6.99

$

In Stock, Qty 6

0

58

Homelite 308421004

Lock Button w/Spring Clip.

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 310924003

Unloader Valve

$35.99

$

In Stock, only 2 left!

0

Engine Oil (SAE 30 or SAE 10W30)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY, Not Shown

$

$

Not available

Homelite 310764004

Engine Air Cleaner

$

$

Currently unavailable

Homelite 987000488

Operator's Manual

$

$

Not available

Homelite 987000489

Replacement Parts List

$2.49

$

Usually ships in 3-7 days

0
