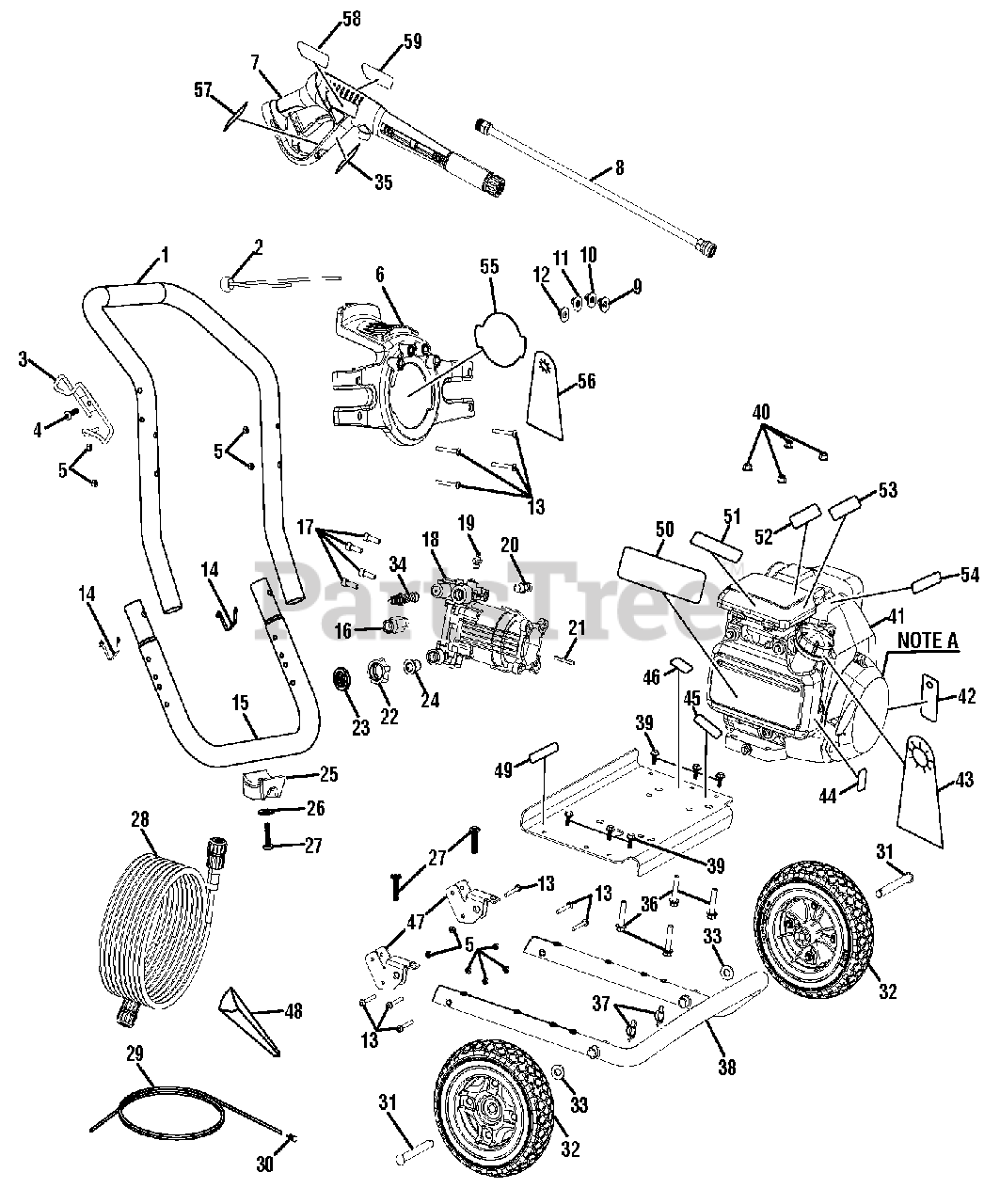

BM 80915 E - Black Max 3000 PSI Pressure Washer General Assembly Parts Diagram

3000 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308638047

Handle w/Foam

$

$

Currently unavailable

2

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 638701027

Wand Holder

$

$

Not available

4

Homelite 660224013

Screw (M6 x16 mm, Phillips Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Nut (M6)

$

$

Not available

6

Homelite 310673005

Hose and Nozzle Holder

Note: (Assembly Inc. Key No. 2)

$

$

Not available

7

Homelite 308760009

Trigger Handle Assembly

$

$

Not available

8

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

9

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

10

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

11

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

13

Homelite 661503015

Screw, (M6 x 48 mm T30 Torx Hd)

$

$

Not available

14

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

15

Homelite 308774003

Rear Frame Assembly

Note: (Inc. Key Nos. 14 and 25-27)

$

$

Not available

16

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

17

Homelite 660739002

Screw (5/16-24 x 23 mm, Hex Soc. Cap Hd.)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 308653060

Pump

$226.99

$

Usually ships in 3-7 days

0

19

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

20

Homelite 678169004

Thermal Release Valve

$

$

Not available

21

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 310993003

Collar

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

24

Homelite 642058001

Spindle

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 561307007

Rubber Foot

$

$

Not available

26

Homelite 638128004

Washer

$1.49

$

In Stock, Qty 5

0

27

Homelite 660224009

Bolt (M6 x 25 mm, Flange Hd.)

$

$

Not available

28

Homelite 308835006

Hose (25 ft., 3000 psi)

$33.99

$

Usually ships in 3-7 days

0

29

Homelite 561399003

Detergent Injection Tube

$1.99

$

In Stock, only 1 left!

0

30

Homelite 308103015

Detergent Injection Filter

$1.49

$

In Stock, only 1 left!

0

31

Homelite 620599024

Axle

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 308451018

Wheel

$

$

Not available

33

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 310924003

Pump Unloader Valve

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 940786020

Label (Trigger Guard Warning)
(Superseded to 940786006)

$

$

Not available

36

Homelite 660764002

Bolt (M8 x 40 mm, Hex Hd.)

$

$

Not available

37

Homelite 678899001

Ring Clip

$

$

Not available

38

Homelite 308471046

Main Frame Assembly

Note: (Inc. Key Nos. 5, 13, 27 & 47)

$

$

Not available

39

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$1.49

$

In Stock, Qty 9

0

40

Homelite 678774002

Nut (M8 x 1.25 mm, Flange)

$

$

Not available

41

Engine (Honda GC 190)

$

$

Not available

42

Homelite 961454001

Label (Oil Hang Tag)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940473011

Label (Notice Hang Tag)

$

$

Not available

44

Homelite 940899002

Label (Do Not Mix)

$

$

Not available

45

Homelite 940947006

Label (Combustion Eng/Sp)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940871002

Label (Add Oil)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 638578002

Frame Connector

$4.99

$

Usually ships in 3-7 days

0

48

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 940617038

Label (Pump Quick Start)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 940894011

Label (Danger - Bilingual)

$

$

Currently unavailable

51

Homelite 941486001

Label (Inquires)

$

$

Not available

52

Homelite 940872003

Label (E85)

$1.49

$

In Stock, only 2 left!

0

53

Homelite 940617039

Label (Engine Quick Start)

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 940680058

Label (Hot Surface)

$

$

Currently unavailable

55

Homelite 940779011

Label (Performance)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 961039005

Nozzle Hang Tag

$

$

Not available

57

Homelite 940654089

Label (Wand Rating)

$1.49

$

In Stock, only 1 left!

0

58

Homelite 940726029

Label (Wand Logo)

$

$

Currently unavailable

59

Homelite 940654083

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

Homelite 990000702

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
