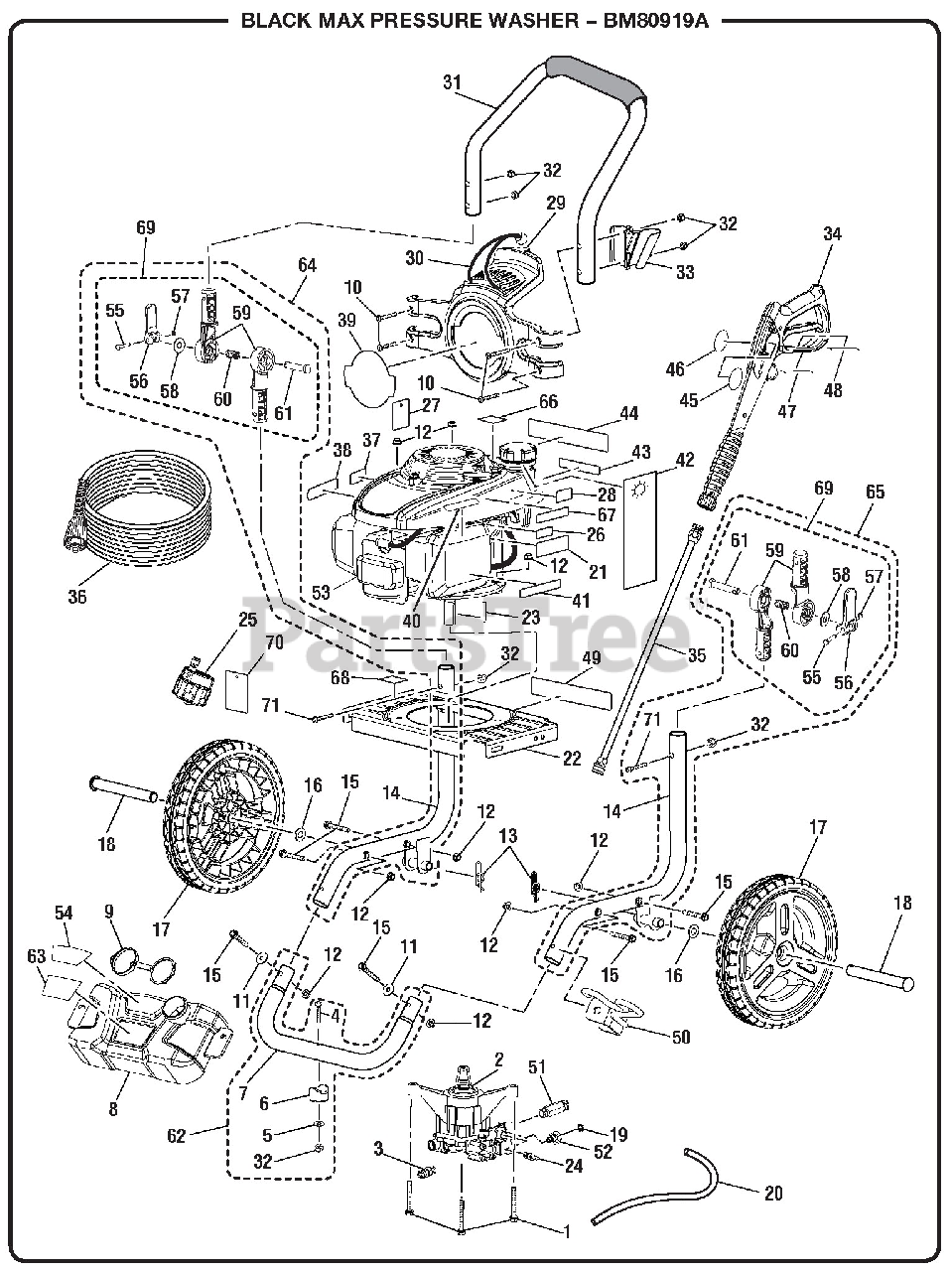

BM 80919 A - Black Max 2700 PSI Pressure Washer General Assembly Parts Diagram

2700 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd)

$1.99

$

In Stock, Qty 12

0

2

Homelite 308653036

Pump

$278.99

$

Usually ships in 3-7 days

0

3

Homelite 678169004

Thermal Release Valve

$

$

Not available

4

Homelite 661501001

Screw (1/4-20 x 185 in, T30 Torx Hd)

$

$

Not available

5

Homelite 638128004

Washer (1/4 in)

$1.49

$

In Stock, Qty 5

0

6

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

7

Homelite 308659020

Front Frame

$

$

Not available

8

Homelite 580875015

Soap Tank
(Superseded to 580875008)

$

$

Not available

9

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

10

Homelite 660592006

Screw (1/4-20 x 227 mm, Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 638275002

Washer (5/16 in)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Hex Nut (M8 x 1-1/4 in)

$

$

Not available

13

Homelite 678899001

Ring Clip

$

$

Not available

14

Homelite 308582029

Main Frame Assembly

$

$

Not available

15

Homelite 660962001

Bolt w/Washer (M8 x 55 mm, Hex Hd)
(Superseded to 660969001)

$

$

Not available

16

Homelite 638275002

Washer (1/2 in)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 308451019

Wheel

$

$

Not available

18

Homelite 620599007

Axle

$2.49

$

In Stock, only 2 left!

0

19

Homelite 308862001

Filter Screen (Pump Inlet)

$

$

Currently unavailable

20

Homelite 570728007

Chemical Siphon Tube
(Superseded to 561399003)

$1.99

$

In Stock, only 1 left!

0

21

Homelite 940698019

Choke Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 638662003

Engine Plate

$32.99

$

Usually ships in 3-7 days

0

23

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 310667007

6-in-1 Nozzle
(Superseded to 310667012)

$45.99

$

Usually ships in 3-7 days

0

26

Homelite 941550005

Engine ON/OFF Label

$

$

Not available

27

Homelite 961454001

Dipstick Hang Tag

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 940899002

Do Not Mix Label

$

$

Not available

29

Homelite 310673012

Hose and Nozzle Holder Assembly

$13.99

$

Usually ships in 3-7 days

0

30

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 308638031

Handle w/Foam

$19.99

$

Usually ships in 3-7 days

0

32

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

33

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

35

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

36

Homelite 308907005

Hose (25 ft, 3000 psi)
(Superseded to 308835006)

$33.99

$

Usually ships in 3-7 days

0

37

Homelite 940517007

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 940680027

Hot Muffler Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940779062

Performance Label

$

$

Not available

40

Homelite 941486001

Inquires Label

$

$

Not available

41

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940473005

Warning Hang Tag

$

$

Not available

43

Homelite 940947003

UL Fire Warning Label

$

$

Not available

44

Homelite 940894004

Warning Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940654084

Wand Warning Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940726016

Wand Logo Label

$

$

Not available

47

Homelite 940947003

Warning Label

$

$

Not available

48

Homelite 940786006

Wand Rating Label

$

$

Not available

49

Homelite 941531017

Data Label

$

$

Currently unavailable

50

Homelite 678243014

Wand Holder

$

$

Not available

51

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

52

Homelite 308861003

Inlet Tube

$12.99

$

Usually ships in 3-7 days

0

53

Engine (Honda GVC160)

Note: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

54

Homelite 941608003

Soap Dilution Label

$1.99

$

In Stock, only 1 left!

0

55

Homelite 638844001

Cam Pin

$

$

Not available

56

Homelite 523942001

Handle Lock Lever

$

$

Not available

57

Homelite 678815009

E-Clip

$

$

Not available

58

Homelite 678889002

Washer

$

$

Not available

59

Homelite 523400001

Locking Pivot Bracket

$

$

Not available

60

Homelite 678857009

Spring

$

$

Not available

61

Homelite 679423001

Locking Cam Pin

$

$

Not available

62

Homelite 310742010

Front Frame Assembly

Note: (Inc Key Nos 4-7 and 32)

$13.99

$

Usually ships in 3-7 days

0

63

Homelite 941608002

Powered By Honda Label

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 310703006

Frame Assembly w/Lock Lever, Left

$

$

Not available

65

Homelite 310704006

Frame Assembly w/Lock Lever, Right

$

$

Not available

66

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

67

Homelite 941613003

Release Pressure Label

$

$

Not available

68

Homelite 940871002

Engine Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 310910002

Lock Lever Assembly

$

$

Not available

70

Homelite 941609002

6-in-1 Nozzle Hang Tag

$

$

Not available

71

Homelite 661503013

Screw (1/4-20 x 43 mm)

$

$

Not available

Homelite 310764004

Engine Air Cleaner

Note: Not Shown

$

$

Currently unavailable

Homelite 988000806

Operator's Manual

$

$

Not available
