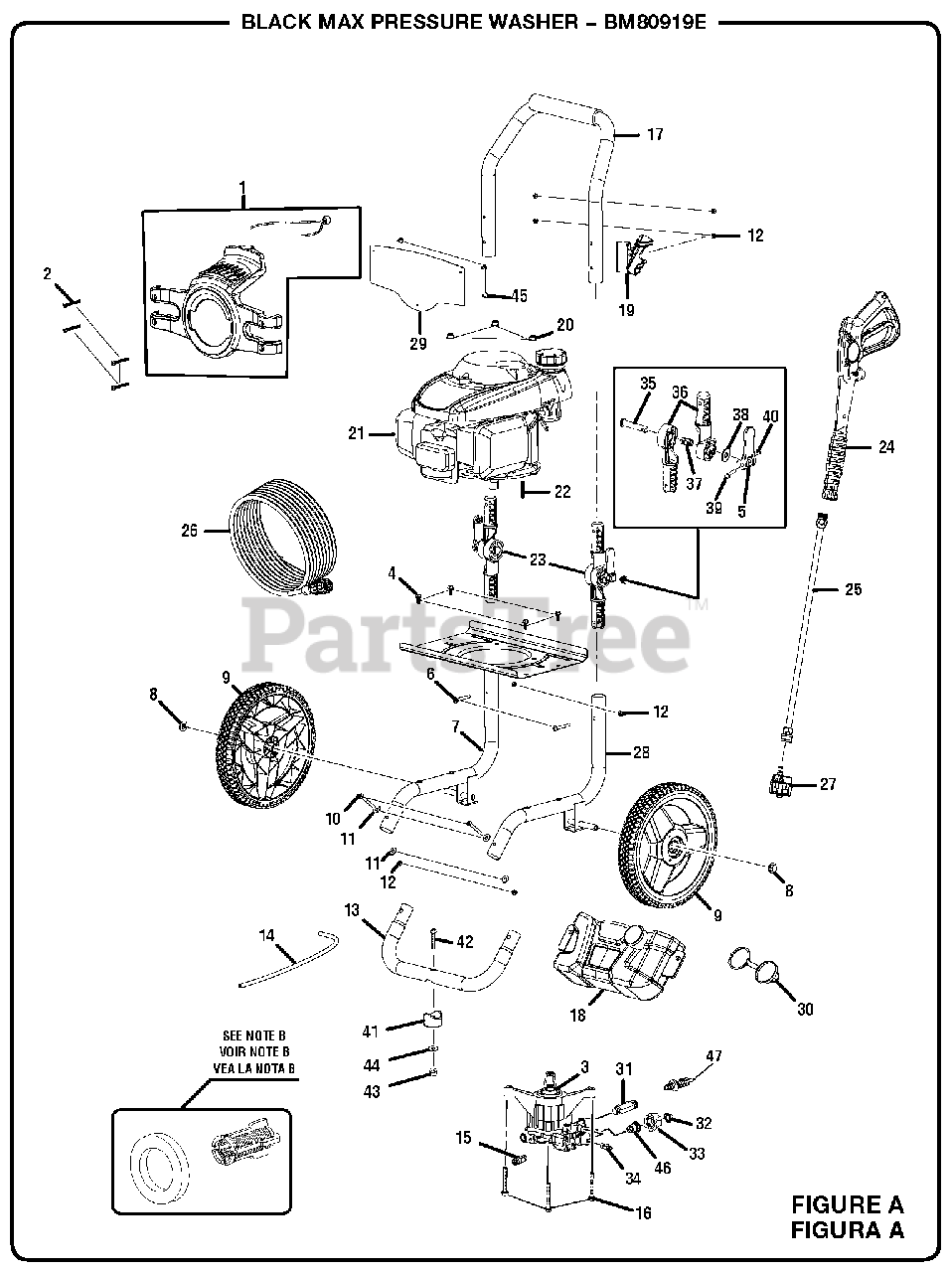

BM 80919 E - Black Max 2800 PSI Pressure Washer Figure A Parts Diagram

2800 PSI Pressure Washer

Figure A Parts Diagram

  • Title

1

Homelite 310673016

Accessoires Panel and Bungee Cord

$

$

Not available

2

Homelite 661834001

Screw (M6 x 48 mm, Button Hd.)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308653058

Pump Assembly

Note: (Inc. Key Nos. 15, 31-34, & 46)

$185.99

$

Usually ships in 3-7 days

0

4

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$1.49

$

In Stock, Qty 9

0

5

Homelite 523942001

Lock Handle

$

$

Not available

6

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$

$

Not available

7

Homelite 310703009

Frame Assembly (Left)

$

$

Not available

8

Homelite 679957001

Cap Nut

$1.49

$

In Stock, only 3 left!

0

9

Homelite 308451039

Wheel

$

$

Not available

10

Homelite 661834002

Screw (M6 x 55 mm, T30 Torx Hd.)

$1.49

$

In Stock, only 1 left!

0

11

Homelite 638128004

Washer (1/4)

$1.49

$

In Stock, Qty 5

0

12

Homelite 678610006

Lock Nut (M6)

$

$

Not available

13

Homelite 310742010

Front Frame Assembly

$13.99

$

Usually ships in 3-7 days

0

14

Homelite 570728007

Siphon Tube (350 mm)
(Superseded to 561399003)

$1.99

$

In Stock, only 1 left!

0

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 12

0

17

Homelite 308638031

Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

18

Homelite 580875015

Soap Tank
(Superseded to 580875008)

$

$

Not available

19

Homelite 519313009

Upper Wand Holder

$

$

Not available

20

Homelite 678774002

Flange Lock Nut (M8 x 1.25)

$

$

Not available

21

Engine (Honda GVC 160cc)

Note: Techtronic Industries North America, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

22

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 310910002

Lock Lever Assembly

Note: (Inc. Key Nos. 5 & 35-41)

$

$

Not available

24

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

25

Homelite 308506006

Spray Wand
(Superseded to 308506014)

$

$

Not available

26

Homelite 308835006

Hose (25 Ft.)

$33.99

$

Usually ships in 3-7 days

0

27

Homelite 310667010

6-in-1 Nozzle
(Superseded to 310667012)

$45.99

$

Usually ships in 3-7 days

0

28

Homelite 310704010

Frame Assembly (Right)

$

$

Not available

29

Homelite 524408005

Instruction Panel

$

$

Currently unavailable

30

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

31

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

32

Homelite 308662001

Water Filter

$

$

Not available

33

Homelite 310993003

Collar

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 679423001

Locking Cam Pin

$

$

Not available

36

Homelite 523400001

Lock Lever

$

$

Not available

37

Homelite 678857009

Compression Spring

$

$

Not available

38

Homelite 678889002

Washer (ID12 x OD30 x 2t)

$

$

Not available

39

Homelite 638844001

Rotating Cam Pin

$

$

Not available

40

Homelite 678815009

E-Clip

$

$

Not available

41

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

42

Homelite 661501001

Screw (1/4-20 x 1.85 in, T30 Torx Pan Hd.)

$

$

Not available

43

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

44

Homelite 638128004

Washer (1/4)

$1.49

$

In Stock, Qty 5

0

45

Homelite 660923015

Screw (M3 x 5 mm, T10 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 642058001

Spindle

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 310924003

Unloader Valve

$17.99

$

Usually ships in 3-7 days

0

Homelite 990000394

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 900333015

Wire Tie

Note: NOT SHOWN

$

$

Not available
