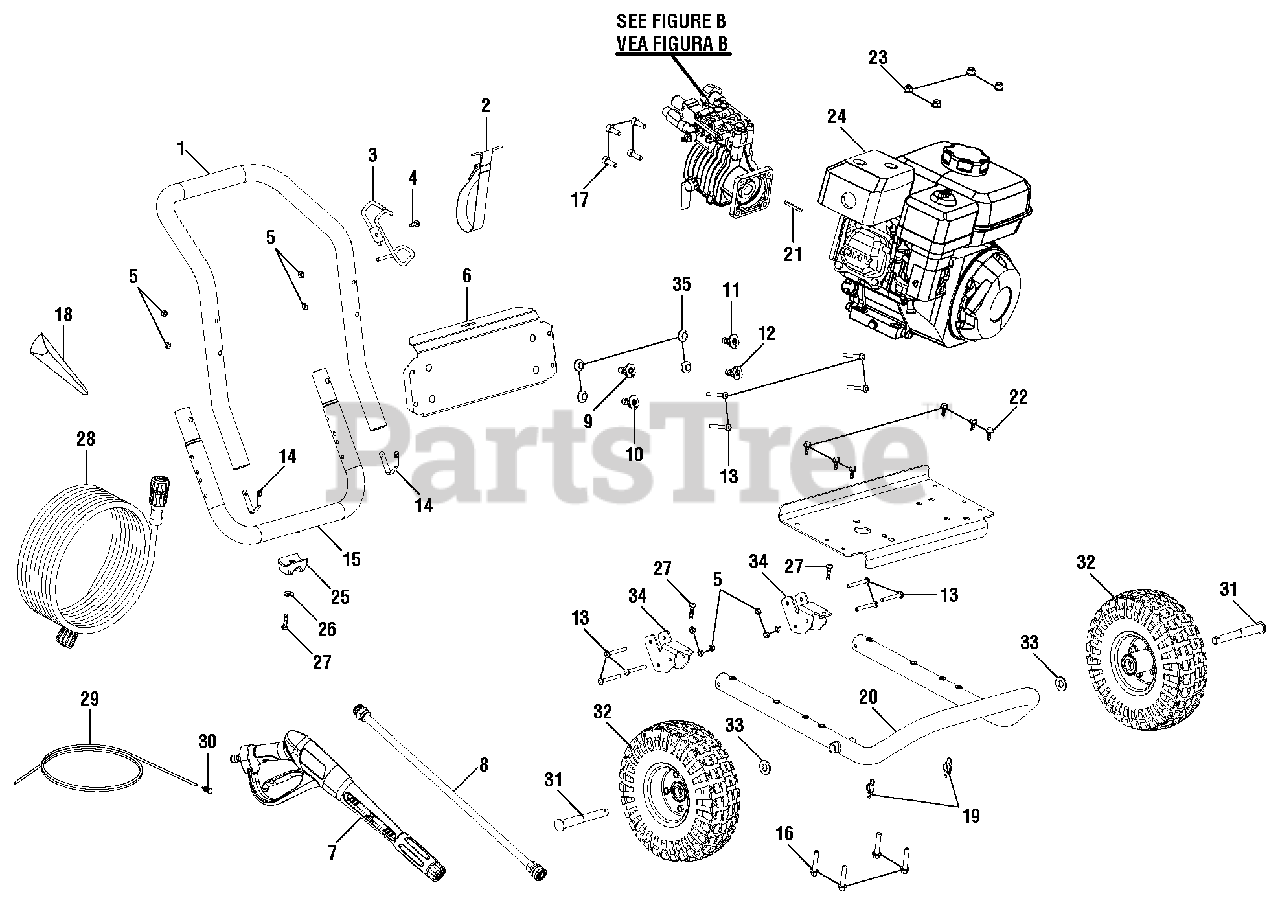

BM 80930 - Black Max 3200 PSI Pressure Washer Figure A Parts Diagram

3200 PSI Pressure Washer

Figure A Parts Diagram

  • Title

1

Homelite 308638058

Handle w/Foam

$

$

Not available

2

Homelite 308350001

Velcro Strap

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 638701030

Wand Holder

$

$

Not available

4

Homelite 660224013

Screw (M6 x16 mm, Phillips Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 638677011

Hose and Nozzle Holder

$

$

Not available

7

Homelite 308760047

Trigger Handle Assembly

$

$

Not available

8

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

9

Homelite 308697030

0deg Nozzle

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 308699030

25deg Nozzle

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 308700015

40deg Nozzle

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

13

Homelite 661503015

Screw, (M6 x 48 mm, T30 Torx Hd.)

$

$

Not available

14

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

15

Homelite 308774003

Rear Frame Assembly

Note: (Inc. Key Nos. 14 & 25-27)

$

$

Not available

16

Homelite 660764002

Bolt (M8 x 40 mm, Hex Hd.)

$

$

Not available

17

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$5.49

$

Usually ships in 3-7 days

0

18

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678899001

Retaining Ring

$

$

Not available

20

Homelite 308471046

Main Frame Assembly

Note: (Inc. Key Nos. 5, 13, 27 & 34)

$

$

Not available

21

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$1.49

$

In Stock, Qty 9

0

23

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

24

Engine (Honda GX200)

$

$

Not available

25

Homelite 561307007

Rubber Foot

$

$

Not available

26

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

27

Homelite 660224009

Bolt (M6 x 25 mm, T30 Torx Hd.)

$

$

Not available

28

Homelite 308835059

Hose (25 ft.)

$

$

Not available

29

Homelite 561399003

Detergent Injection Tube

$1.99

$

In Stock, only 1 left!

0

30

Homelite 308103015

Detergent Injection Filter

$1.49

$

In Stock, only 1 left!

0

31

Homelite 620598002

Axle

$3.49

$

Usually ships in 3-7 days

0

32

Homelite 308451010

Wheel

$

$

Not available

33

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 638578002

Frame Connector

$4.99

$

Usually ships in 3-7 days

0

35

Homelite 561383004

Rubber Grommet

$

$

Not available

Homelite 991000020

Oil (SAE 30 or SAE 10W30)

Note: Not Shown

$

$

Not available

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000021

Assembly Guide

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000132

Operator's Manual Pump Insert

Note: Not Shown

$

$

Not available
