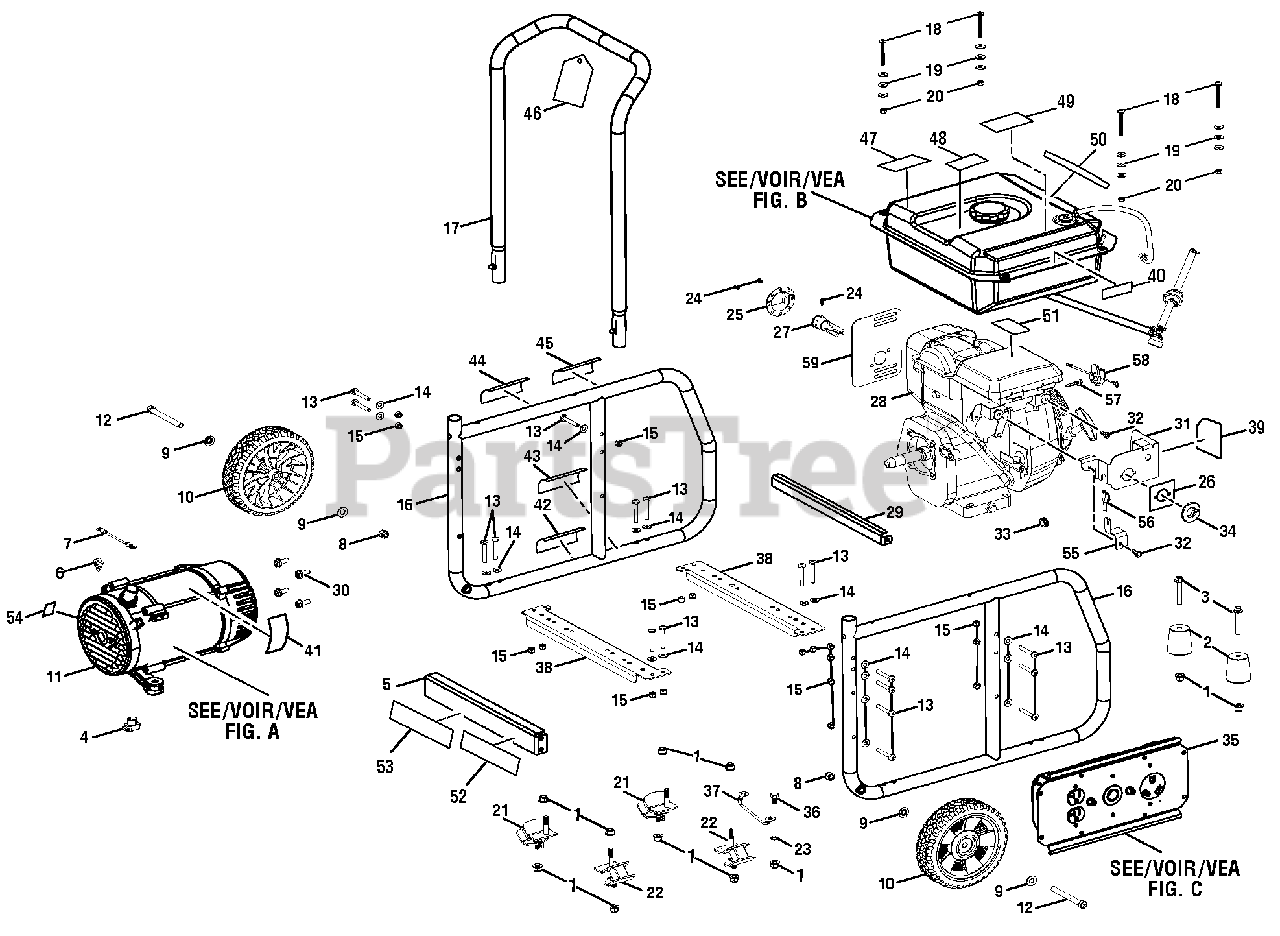

BM 903000 A - Black Max 3000 Watt Generator General Assembly Parts Diagram

3000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 678774002

Nut (M8 x 1.25 in.)

$2.49

$

In Stock, only 1 left!

0

2

Homelite 562856010

Rubber Foot

$

$

Not available

3

Homelite 661505003

Bolt (M8 x 50 mm)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 570766008

Rubber Plug

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 638960006

Fuel Tank Support (Rear)

$

$

Not available

6

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290404001

Bonding Wire

$

$

Not available

8

Homelite 678659001

Nut (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 638386003

Washer (3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 308451046

Wheel

$

$

Not available

11

Homelite 310227046

Generator Head Assembly (See Fig. A)

$

$

Not available

12

Homelite 661558006

Axle Bolt

$

$

Not available

13

Homelite 661400003

Bolt (1/4-20 x 1.675 in.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 638387005

Washer (1/4 in.)

$

$

Not available

15

Homelite 678074002

Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 308581047

Frame Assembly

$

$

Not available

17

Homelite 310224050

Handle

$

$

Not available

18

Homelite 660224010

Bolt (M6 x 50 mm, T-30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 673154001

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 678460008

Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 679940008

Engine Isolator (Left)

$11.99

$

Usually ships in 3-7 days

0

22

Homelite 679940007

Engine Isolator (Right)

$11.99

$

Usually ships in 3-7 days

0

23

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 661306001

Screw (8-32 x 3/8 in.)

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 638147010

Exhaust Deflector

$

$

Not available

26

Homelite 941494014

Fuel Valve Label

$

$

Not available

27

Homelite 638147009

Spark Screen

$

$

Not available

28

Engine (Honda GC190)

Note: NOTE A: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

29

Homelite 638959006

Fuel Tank Support (Front)

$

$

Not available

30

Homelite 660599006

Bolt (5/16-24 x 0.75 in.)

$

$

Currently unavailable

31

Homelite 639139001

Bracket

$21.99

$

Usually ships in 3-7 days

0

32

Homelite 660224013

Bolt (M6 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 561383023

Rubber Grommet

$

$

Not available

34

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, only 4 left!

0

35

Homelite 290403041

Control Panel Assembly (See Fig. C)

$176.99

$

Usually ships in 3-7 days

0

36

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

37

Homelite 290404001

Ground Wire Assembly

$

$

Not available

38

Homelite 638735029

Engine Brace

$

$

Not available

39

Homelite 940474006

Engine Switch Label

$

$

Currently unavailable

40

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 940678303

Data Label

$

$

Currently unavailable

42

Homelite 941486006

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 940828004

Check Oil Label

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 940680040

Hot Surface Label

$3.49

$

Usually ships in 3-7 days

0

45

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable

47

Homelite 940654112

Warning Label

$

$

Not available

48

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

49

Homelite 940515021

CPSC Label

$

$

Not available

50

Homelite 940752017

Logo Label

$

$

Not available

51

Homelite 940734138

Engine Start Label

$

$

Not available

52

Homelite 940513013

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 940947006

Combustion Label

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 940513002

Ground Label

$3.49

$

Usually ships in 3-7 days

0

55

Homelite 639139003

Vapor Adaptor Bracket

$

$

Not available

56

Homelite 308762005

Vapor Adaptor

$

$

Not available

57

Homelite 661306003

Screw (#10-16 x 3/4 in.)

$

$

Not available

58

Homelite 270290009

Engine Switch

$7.49

$

Usually ships in 3-7 days

0

59

Homelite 638497030

Heat Shield

$17.99

$

Usually ships in 3-7 days

0

Homelite 990000403

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000475

Quick Reference Guide

Note: Not Shown

$2.49

$

Usually ships in 3-7 days

0
