BM 903000 - Black Max 3000 Watt Generator Figure A Parts Diagram

3000 Watt Generator

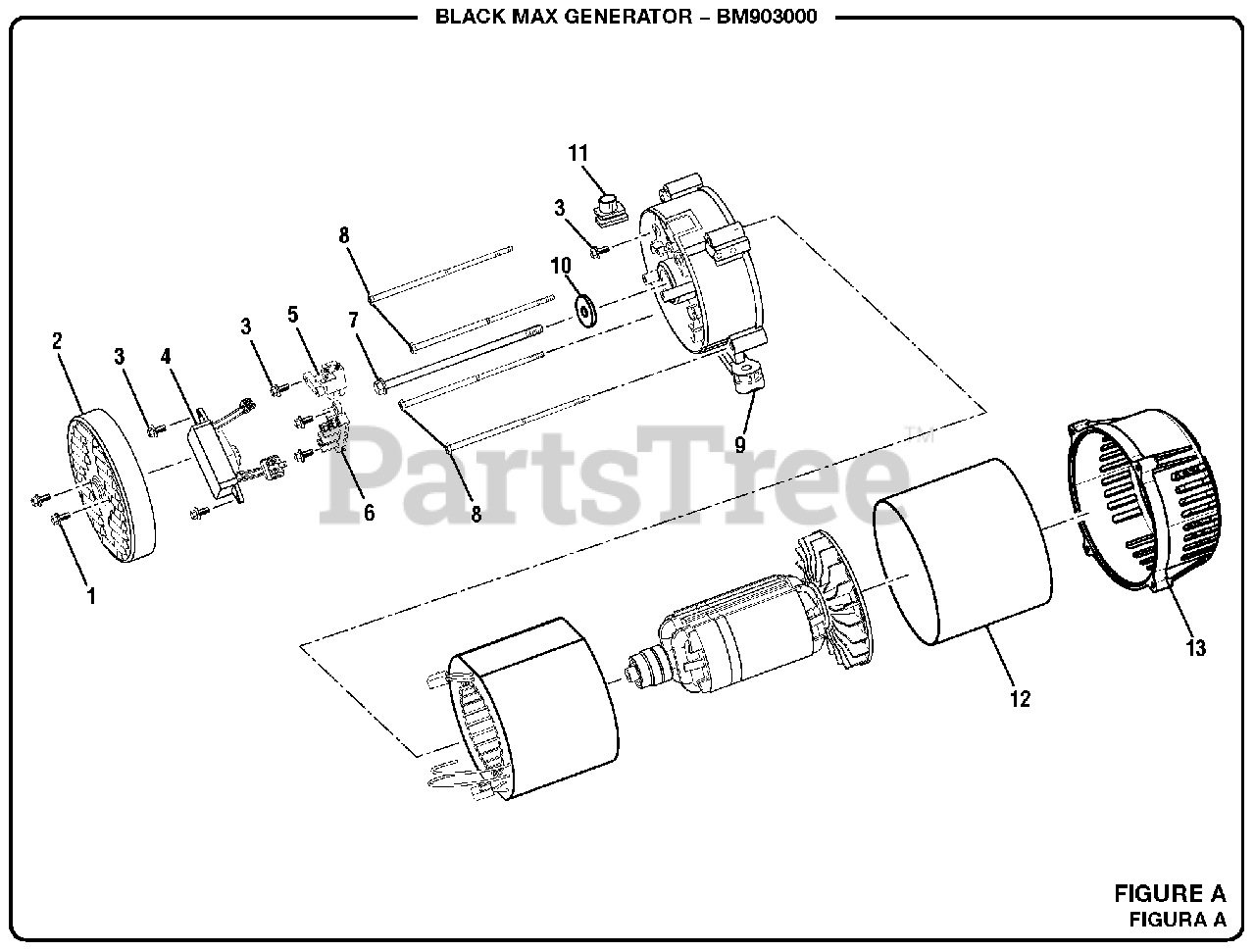

Figure A Parts Diagram

  • Title

1

Homelite 660938027

Bolt (M5 x 10 mm, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296006

Brush Cover

$

$

Not available

3

Homelite 660938026

Bolt (M5 x 16 mm, Hex Hd)

$

$

Not available

4

Homelite 290440009

Automatic Voltage Regulator
(Superseded to 290440011)

$105.99

$

Usually ships in 3-7 days

0

5

Homelite 290441008

Brush Assembly

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 290602008

Terminal Block

$

$

Not available

7

Homelite 661557021

Bolt (5/16-24 x 182 mm, Hex Hd)

$

$

Not available

8

Homelite 661603016

Bolt (M6 x 180 mm, Hex Hd)

$

$

Not available

9

Homelite 678865006

Bearing Housing

$55.99

$

Usually ships in 3-7 days

0

10

Homelite 638678012

Washer (ID84 x OD251 x 3t)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 570766008

Rubber Boot

$7.99

$

Usually ships in 3-7 days

0

12

Homelite 638624011

Generator Head Cover

$

$

Not available

13

Homelite 640331008

Adaptor Housing

$

$

Not available
