BM 903500 (090930202) - Black Max 3500 Watt Generator, Rev 06 (2017-04) Figure A Parts Diagram

3500 Watt Generator, Rev 06

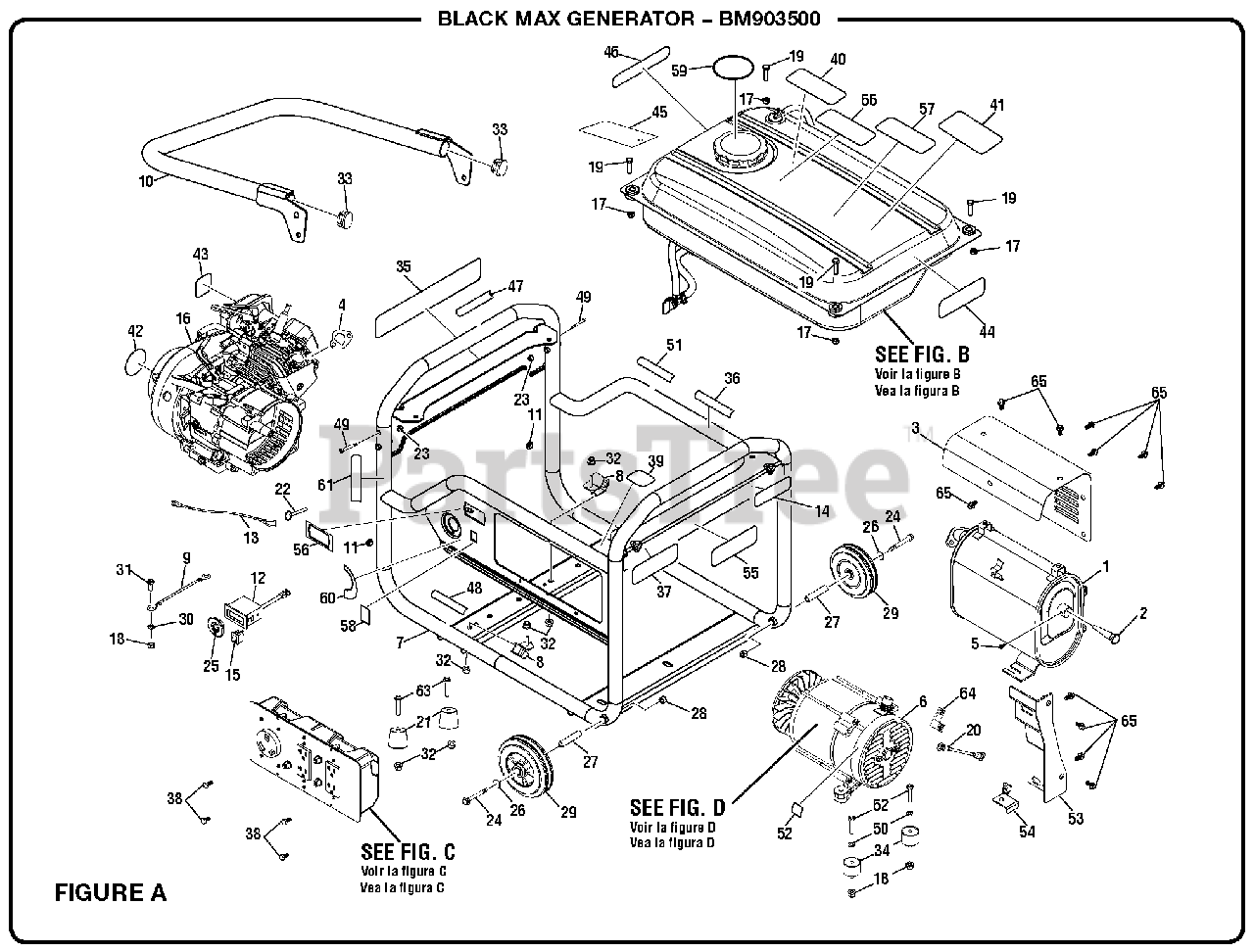

Figure A Parts Diagram

  • Title

1

Homelite 309322025

Muffler

$92.99

$

Usually ships in 3-7 days

0

2

Homelite 638147007

Spark Screen

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 638539004

Heat Shield

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 678728004

Exhaust Gasket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 661404001

Set Screw (Spark Arrestor)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 310227052

Generator Head Assembly

$408.99

$

Usually ships in 3-7 days

0

7

Homelite 308581055

Carrier Assembly

$

$

Not available

8

Homelite 679940001

Isolators (45deg)

$21.99

$

Usually ships in 3-7 days

0

9

Homelite 290404001

Ground Wire Assembly

$

$

Not available

10

Homelite 310224055

Handle Assembly

$25.99

$

Usually ships in 3-7 days

0

11

Homelite 570371008

Handle Bumper

$

$

Not available

12

Homelite 290492001

Digital Display

$46.99

$

Usually ships in 3-7 days

0

13

Homelite 310715001

Lanyard.

$

$

Not available

14

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

16

Engine (Ducar DJ170F)

Note: NOTE A: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

17

Homelite 411071001

Lock Nut (M6)

$

$

Currently unavailable

18

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 660154001

Bolt (M6 x 20 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 290455003

Bonding Wire

$11.99

$

Usually ships in 3-7 days

0

21

Homelite 562856010

Foot Assembly

$

$

Not available

22

Homelite 310712001

Lock Pin

$1.99

$

In Stock, only 4 left!

0

23

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$

$

Not available

24

Homelite 661558008

Bolt (3/8-16 x 4-1/4 in.)

$6.99

$

Usually ships in 3-7 days

0

25

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, only 4 left!

0

26

Homelite 638386003

Washer (3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 638498001

Spacer

$5.99

$

Usually ships in 3-7 days

0

28

Homelite 678659001

Lock Nut (3/8-16)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 308451030

Wheel (7 in.)

$

$

Not available

30

Homelite 638704001

Star Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 661502005

Bolt (5/16-18 x 19 mm)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 678774002

Flange Nut (M8).

$2.49

$

In Stock, only 1 left!

0

33

Homelite 519712007

End Cap

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 570356014

Isolator (Generator)

$19.99

$

Usually ships in 3-7 days

0

35

Homelite 940705211

Logo Label

$

$

Not available

36

Homelite 940680040

Hot Surface Label

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 940947006

Combustion Label (Eng/Sp)

$3.49

$

Usually ships in 3-7 days

0

38

Homelite 660598001

Screw (#6-20 x 9.65 mm, Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

39

Homelite 940678347

Data Label

$

$

Not available

40

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

41

Homelite 940515020

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

42

Homelite 940633012

Recoil Housing Label

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 940647078

Choke Label

$

$

Not available

44

Homelite 940513028

Ground Warning Label

$3.49

$

Usually ships in 3-7 days

0

45

Homelite 940971086

Danger Hang Tag

$

$

Currently unavailable

46

Homelite 940617093

Engine Start Label

$

$

Not available

47

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

48

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 661503003

Bolt (1/4-20 x 1.5 in., Flange Hex Hd.)

$2.99

$

In Stock, only 2 left!

0

50

Homelite 638678002

Lock Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 941486006

Inquiries Label.

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940513002

Ground Label.

$3.49

$

Usually ships in 3-7 days

0

53

Homelite 638777012

Mounting Bracket (Left)

$7.49

$

Usually ships in 3-7 days

0

54

Homelite 638777011

Mounting Bracket (Right)

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 941486007

Mexico Support Label

$

$

Not available

56

Homelite 940040041

Hour Meter Label

$

$

Not available

57

Homelite 940654255

Icon Label.

$7.49

$

Usually ships in 3-7 days

0

58

Homelite 940698028

On/Off Label..

$

$

Not available

59

Homelite 940872022

Fuel Stabilizer Label (Eng)

$

$

Not available

60

Homelite 941494015

Fuel Valve Label

$

$

Not available

61

Homelite 940514008

Lock Pin Label

$6.49

$

Usually ships in 3-7 days

0

62

Homelite 660591006

Bolt (5/16-18 x 1.5 in., Hex Hd.)

$2.49

$

In Stock, only 3 left!

0

63

Homelite 661836007

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

64

Homelite 638703001

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 660973020

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.49

$

In Stock, Qty 6

0

66

Homelite 940872023

Fuel Stabilizer Label (Sp)

$3.99

$

Usually ships in 3-7 days

0

Homelite 120302020

Hardware Kit

Note: NOT SHOWN

$29.99

$

Usually ships in 3-7 days

0

Homelite 991000352

Operator's Manual

$

$

Not available

Homelite 991000353

Quick Reference Guide

$8.99

$

Usually ships in 3-7 days

0
