BM 905000 - Black Max 5000 Watt Generator Figure A Parts Diagram

5000 Watt Generator

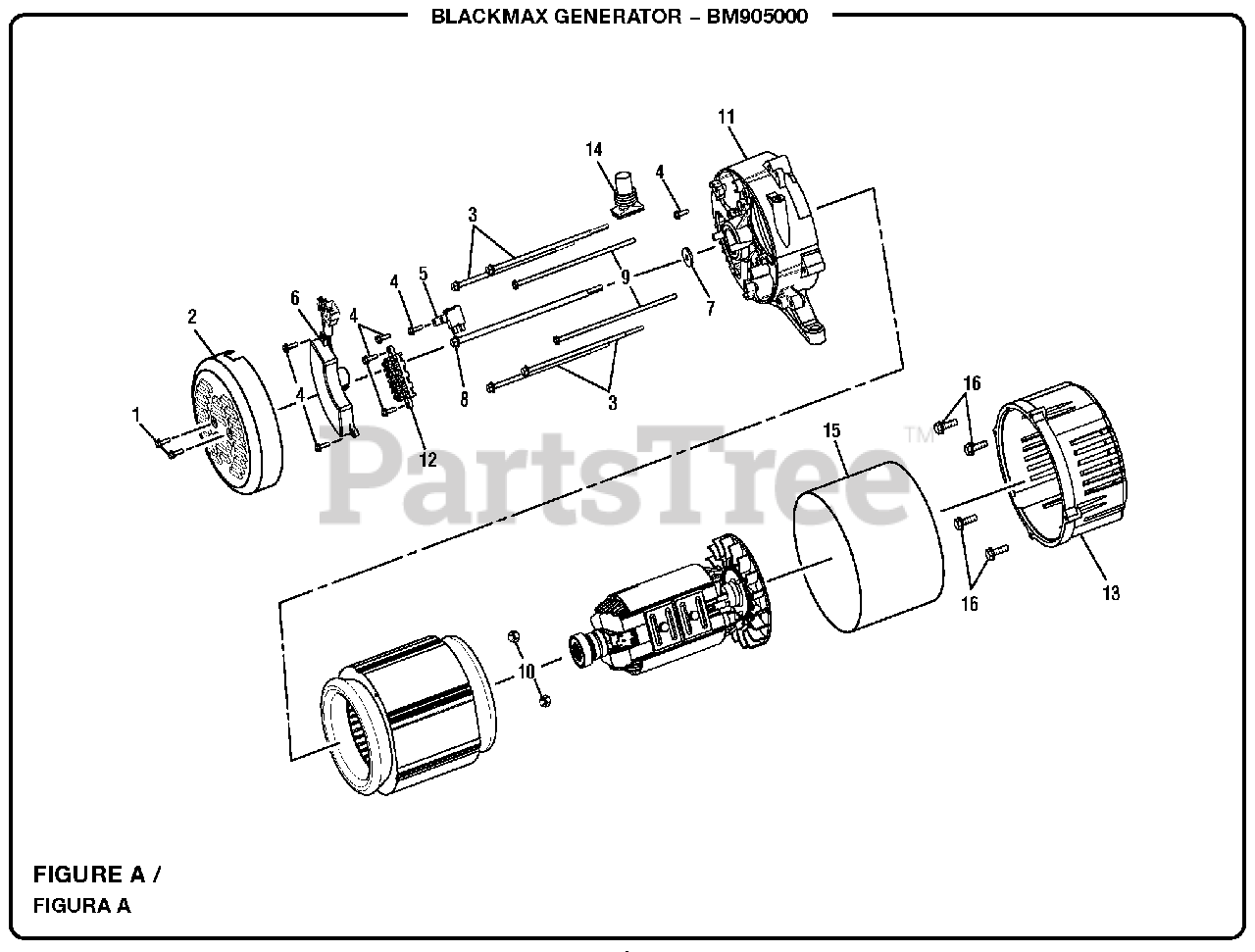

Figure A Parts Diagram

  • Title

1

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

2

Homelite 678296002

Brush Cover

$

$

Not available

3

Homelite 660869012

Bolt (1/4-20 x 6 in., Hex Hd.)

$

$

Currently unavailable

4

Homelite 661603002

Bolt (M5 x 16 mm, Flange Hex Hd.)

$

$

Not available

5

Homelite 290441001

Brush Assembly

$

$

Not available

6

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

7

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

8

Homelite 661557027

Bolt (5/16-24 x 230 mm, Hex. Hd.)
(Superseded to 661557009)

$

$

Not available

9

Homelite 661603024

Bolt (5/16-24 x 230 mm, Hex. Hd.)

$

$

Currently unavailable

10

Homelite 690840002

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 678865002

Bearing Support

$58.99

$

Usually ships in 3-7 days

0

12

Homelite 290602002

Terminal Block

$

$

Not available

13

Homelite 640331002

Engine Adapter

$37.99

$

Usually ships in 3-7 days

0

14

Homelite 570766002

Rubber Boot

$

$

Not available

15

Homelite 638545003

Cover

$

$

Currently unavailable

16

Homelite 660596002

Bolt (3/8-16 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0
