BM 905530 (099930634) - Black Max 5500 Watt Generator, Rev 01 (2020-05) FIGURE C Parts Diagram

5500 Watt Generator, Rev 01

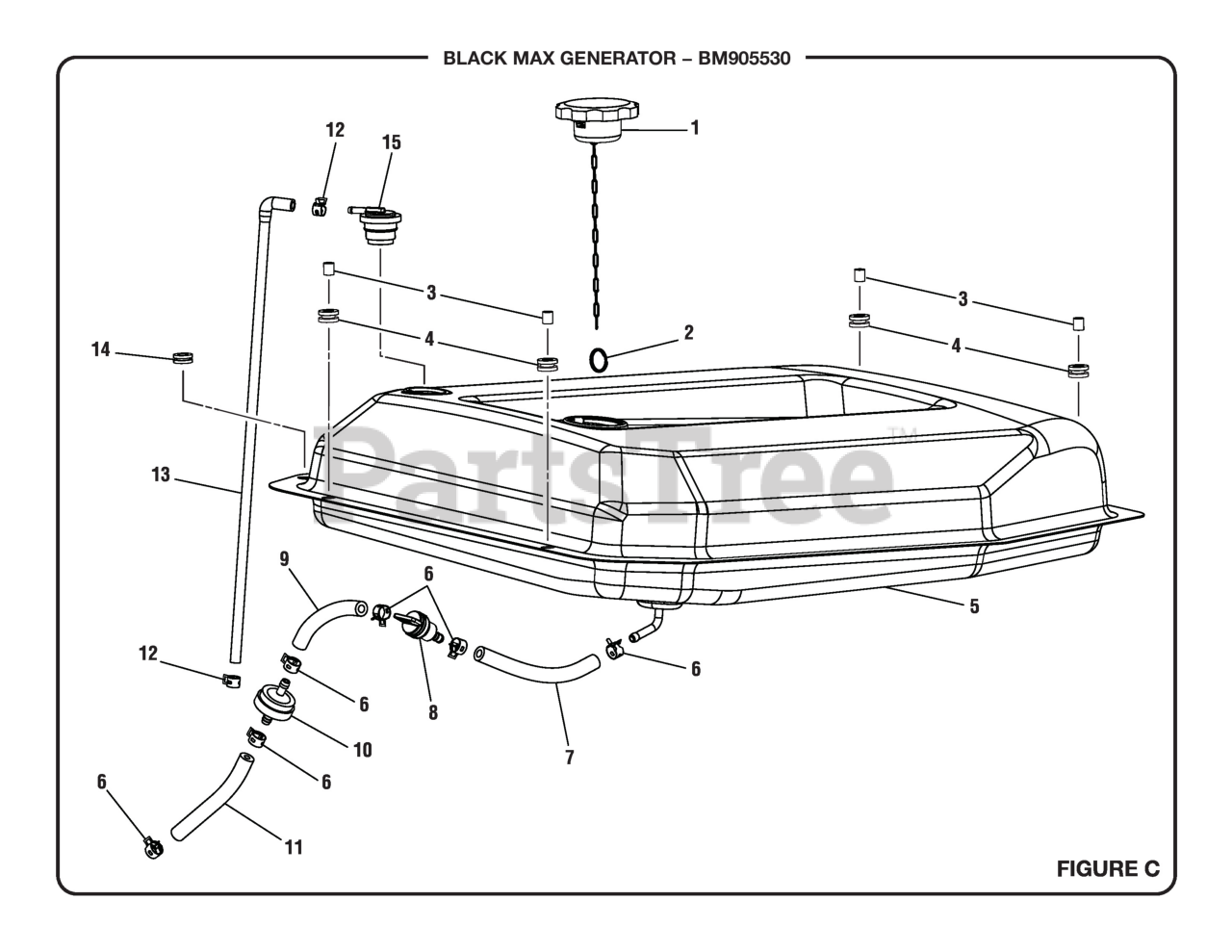

FIGURE C Parts Diagram

  • Title

1

Homelite 310720026

Fuel Cap Assembly

$47.99

$

Usually ships in 3-7 days

0

2

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 1 left!

0

3

Homelite 518528002

Spacer (Fuel Tank Isolator)

$

$

Not available

4

Homelite 519832003

Bushing (Fuel Tank Isolator)

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 310711125

Fuel Tank

$

$

Not available

6

Homelite 678408006

Fuel Line Clamp (1/2 in.).

$3.99

$

In Stock, only 1 left!

0

7

Homelite 570358071

Fuel Line (6.4 mm x 72 mm)

$

$

Not available

8

Homelite 308459002

Fuel Shut Off Valve

$38.99

$

In Stock, only 2 left!

0

9

Homelite 570358219

Fuel Line (115 mm)

$

$

Currently unavailable

10

Homelite 308733001

Fuel Filter Inline (1/4 in.)
(Superseded to 308733008)

$8.99

$

In Stock, only 2 left!

0

11

Homelite 570358220

Fuel Line (173 mm)

$

$

Currently unavailable

12

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$2.49

$

In Stock, only 2 left!

0

13

Homelite 570358076

Vapor Hose (410 mm)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 570358091

Fuel Hose Protector

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 310854006

Fuel Tank Vapor Vent

$25.99

$

Usually ships in 3-7 days

0
