BM 905700 P - Black Max 5700 Watt Generator General Assembly Parts Diagram

5700 Watt Generator

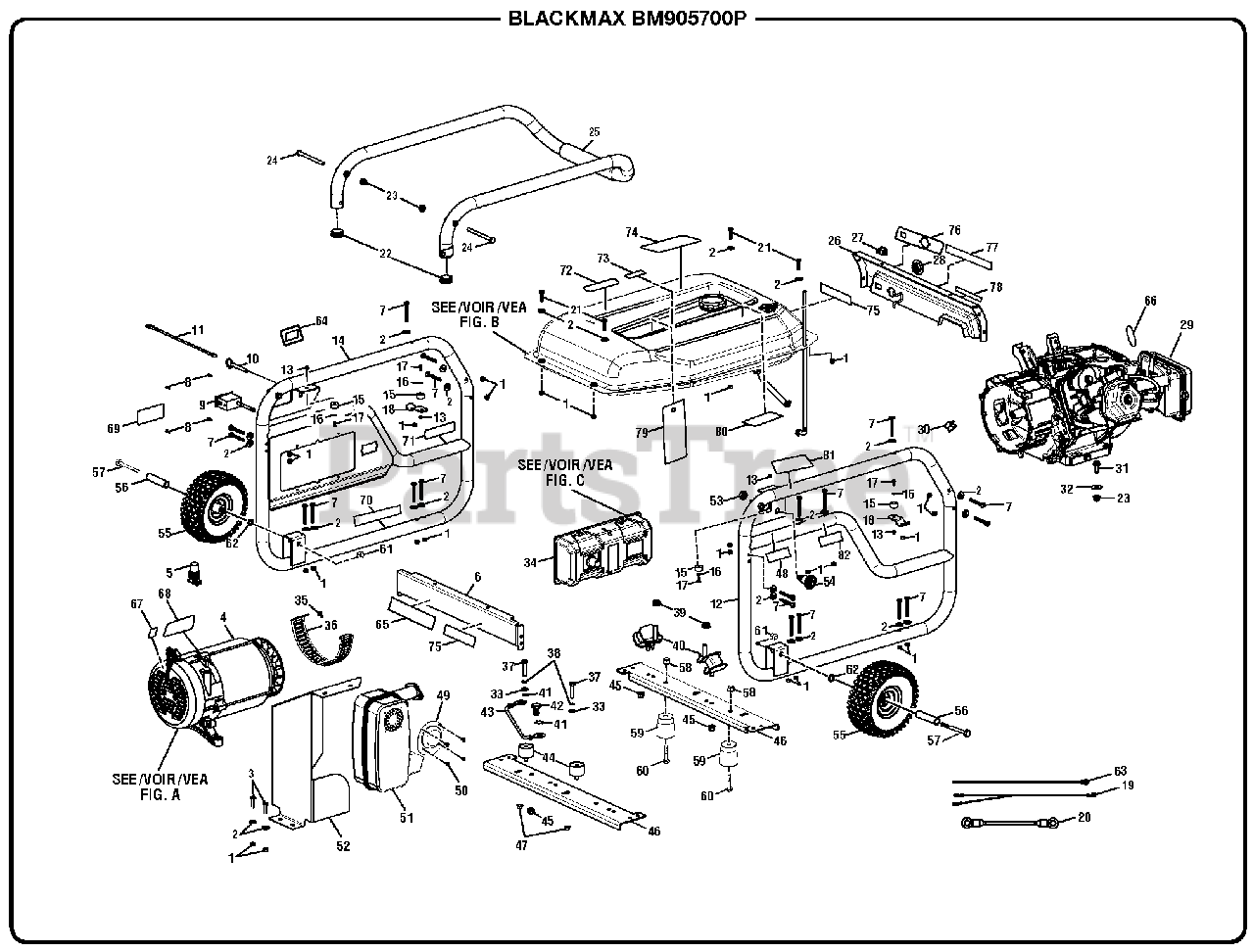

General Assembly Parts Diagram

  • Title

1

Homelite 678610006

Lock Nut (M6)

$

$

Not available

2

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

3

Homelite 661505021

Bolt (M6 x 16 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 310227044

Generator Head Assembly (See Figure A)
(Superseded to 310227037)

$497.99

$

Usually ships in 3-7 days

0

5

Homelite 570766002

Rubber Boot

$

$

Not available

6

Homelite 638960004

Fuel Tank Support (Rear)

$

$

Not available

7

Homelite 660224010

Screw (M6 x 50 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 660598001

Screw (6-20 x 3/8 in.)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 290492001

Analog Hour Meter

$23.99

$

In Stock, only 2 left!

0

10

Homelite 310712001

Pin Release

$1.99

$

In Stock, Qty 5

0

11

Homelite 310715001

Lanyard

$

$

Not available

12

Homelite 308581039

Frame (Left)

$

$

Not available

13

Homelite 678610002

Lock Nut (M4)

$

$

Not available

14

Homelite 308581043

Frame (Right)

$

$

Not available

15

Homelite 570712001

Rubber Bumper

$0.99

$

Usually ships in 3-7 days

0

16

Homelite 673156001

Washer (M4)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 661850001

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678285004

Handle Bracket

$

$

Not available

19

Homelite 290405003

Assembly Wire (Black)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 290455001

Bonding Wire

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660224009

Screw (M6 x 25 mm, T-30 Torx Pan Hd.)

$

$

Not available

22

Homelite 519712003

End Cap (Handle)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 678774003

Lock Nut (M8 x 1.25)

$1.49

$

In Stock, Qty 5

0

24

Homelite 661851001

Screw (M8 x 98 mm, Flat Hd.)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 310224042

Handle Assembly

$30.99

$

Usually ships in 3-7 days

0

26

Homelite 638959004

Fuel Tank Support (Front)

$

$

Not available

27

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$2.99

$

In Stock, Qty 6

0

28

Homelite 519813017

Fuel Valve Bezel

$1.99

$

In Stock, only 3 left!

0

29

Engine (LCT)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

30

Homelite 563030001

Rubber Plug

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 660973019

Bolt (M8 x 40 mm, Hex Hd.)

$

$

Not available

32

Homelite 638675001

Washer (5/16)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 673153001

Washer (M8)

$

$

Not available

34

Homelite 290403035

Control Panel Assembly (See Fig. C)

$

$

Not available

35

Homelite 661603001

Bolt (M5 x 10 mm, Hex Hd.)

$

$

Not available

36

Homelite 638983001

Fan Cover

$

$

Not available

37

Homelite 660591006

Bolt (5/16-18 x 1.5 in., Hex Hd.)

$1.49

$

In Stock, only 3 left!

0

38

Homelite 673155001

Lock Washer (M8)

$1.99

$

In Stock, only 1 left!

0

39

Homelite 678297001

Lock Nut (M10)

$

$

Not available

40

Homelite 679940003

Isolator (Large)

$7.49

$

In Stock, Qty 8

0

41

Homelite 673157001

Star Washer (M8)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

43

Homelite 290404001

Ground Wire Assembly

$

$

Not available

44

Homelite 570356001

Isolator (Small)

$

$

Not available

45

Homelite 678774002

Flange Nut (M8)

$

$

Not available

46

Homelite 638735025

Reversible Cross Plate

$

$

Not available

47

Homelite 678145002

Hex Nut (5/16-18)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 940947006

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 638147003

Spark Arrestor Screen

$

$

Not available

50

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 309322023

Muffler

$

$

Not available

52

Homelite 638497029

Heat Shield

$24.99

$

Usually ships in 3-7 days

0

53

Homelite 678518002

Hex Nut (1/2-20)

$2.99

$

Usually ships in 3-7 days

0

54

Homelite 308910010

Handle Release Pin

$

$

Not available

55

Homelite 308451045

Wheel

$17.99

$

Usually ships in 3-7 days

0

56

Homelite 638498003

Spacer

$2.49

$

In Stock, only 3 left!

0

57

Homelite 661836001

Axle Bolt

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 678774004

Lock Nut (M8 x 1.25)

$1.49

$

In Stock, only 4 left!

0

59

Homelite 562856010

Rubber Foot

$

$

Not available

60

Homelite 661836007

Bolt (M8 x 45 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 678774005

Lock Nut (M10)

$1.49

$

In Stock, Qty 5

0

62

Homelite 638422004

Washer (M10)

$

$

Not available

63

Homelite 290427001

Wire Assembly (Green)

$1.49

$

Usually ships in 3-7 days

0

64

Homelite 940040027

Systems Monitor Label

$

$

Not available

65

Homelite 940513013

Ground Warning Label

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 940633023

Recoil Housing Label

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 940513002

Ground Label

$1.99

$

Usually ships in 3-7 days

0

68

Homelite 940678285

Data Label

$

$

Currently unavailable

69

Homelite 940514008

Lock and Pin Label

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 940828004

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

71

Homelite 941486004

Inquires label

$

$

Not available

72

Homelite 940974004

Fire Danger Label

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

74

Homelite 940515020

CPSC Label

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 940974090

Fire Distance Label

$1.49

$

Usually ships in 3-7 days

0

76

Homelite 940474003

Fuel Label

$

$

Not available

77

Homelite 940705184

Logo Label

$3.99

$

Usually ships in 3-7 days

0

78

Homelite 940734126

Start Label

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 940971086

Warning Hang Tag

$

$

Currently unavailable

80

Homelite 940654205

Danger Label

$1.99

$

Usually ships in 3-7 days

0

81

Homelite 940758020

Handle Release Label

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 940680040

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 120302011

Hardware Kit

Note: Not Shown; (Inc. Key Nos. 57-62)

$

$

Not available

Homelite 990000401

Operator's Manual

$

$

Currently unavailable
