BM 907000 B (090930270) - Black Max 7000 Watt Generator, Rev 03 (2018-10) Figure A Parts Diagram

7000 Watt Generator, Rev 03

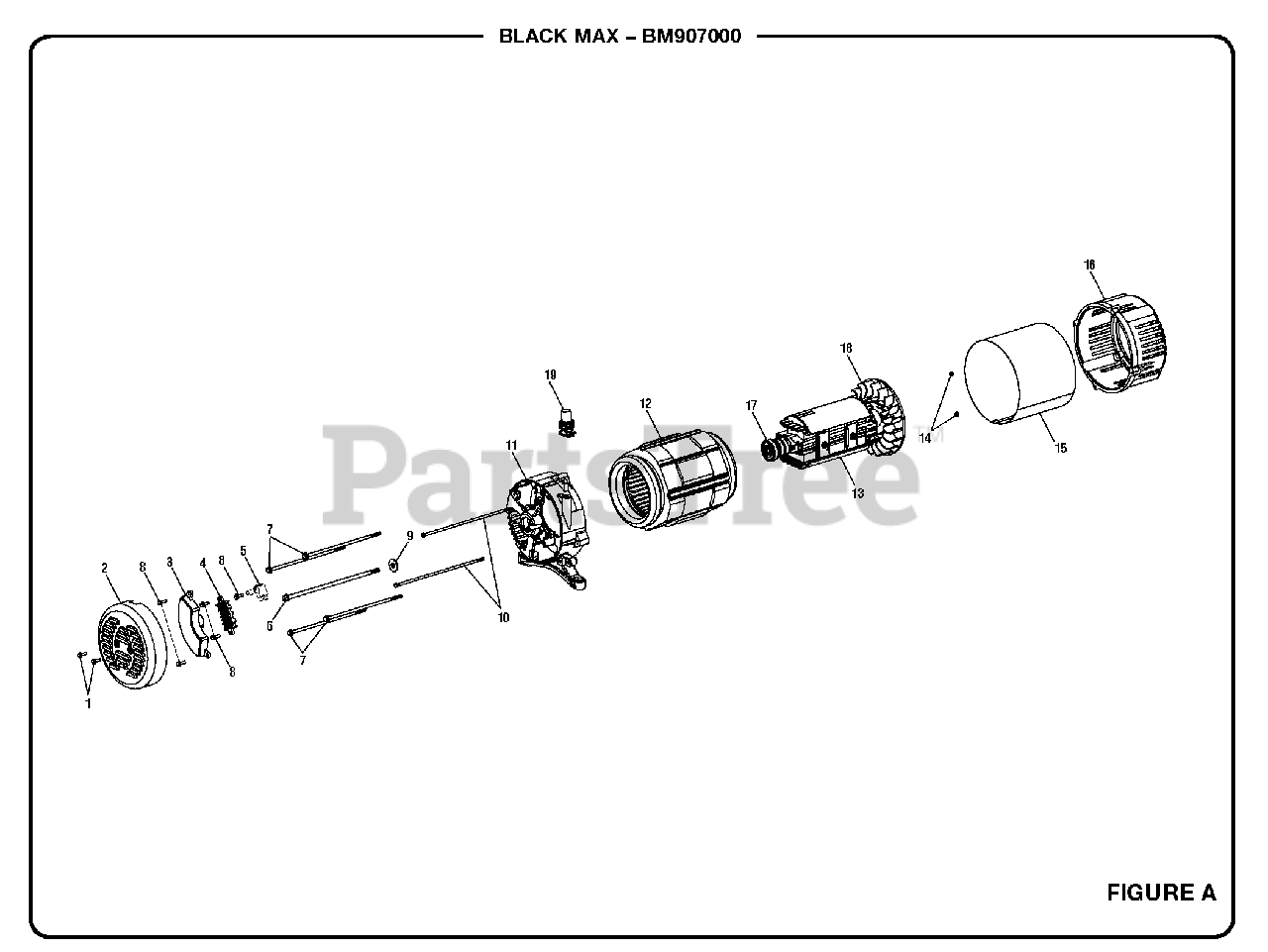

Figure A Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

4

Homelite 290602003

Terminal Block

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly

$

$

Not available

6

Homelite 661603021

Rotor Bolt

$4.99

$

Usually ships in 3-7 days

0

7

Homelite 661603020

Stator Bolt

$

$

Not available

8

Homelite 660938012

Bolt (M5 x 12 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 638623002

Rotor Washer

$

$

Not available

10

Homelite 661603032

Stator Bolt

$

$

Currently unavailable

11

Homelite 678865003

Bearing Housing

$

$

Not available

12

Homelite 310772032

Stator Assembly

$

$

Currently unavailable

13

Homelite 310771032

Rotor Assembly

Note: (Inc. Key Nos. 17-18)

$

$

Currently unavailable

14

Homelite 690840002

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 638624016

Cover

$5.49

$

Usually ships in 3-7 days

0

16

Homelite 640331005

Engine Adaptor

$

$

Not available

17

Homelite 681963001

Bearing

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan

$

$

Not available

19

Homelite 570766004

Rubber Boot

$1.99

$

Usually ships in 3-7 days

0
