BM 907015 (090930287) - Black Max 7000 Watt Generator, Rev 06 (2018-10) Figure A Parts Diagram

7000 Watt Generator, Rev 06

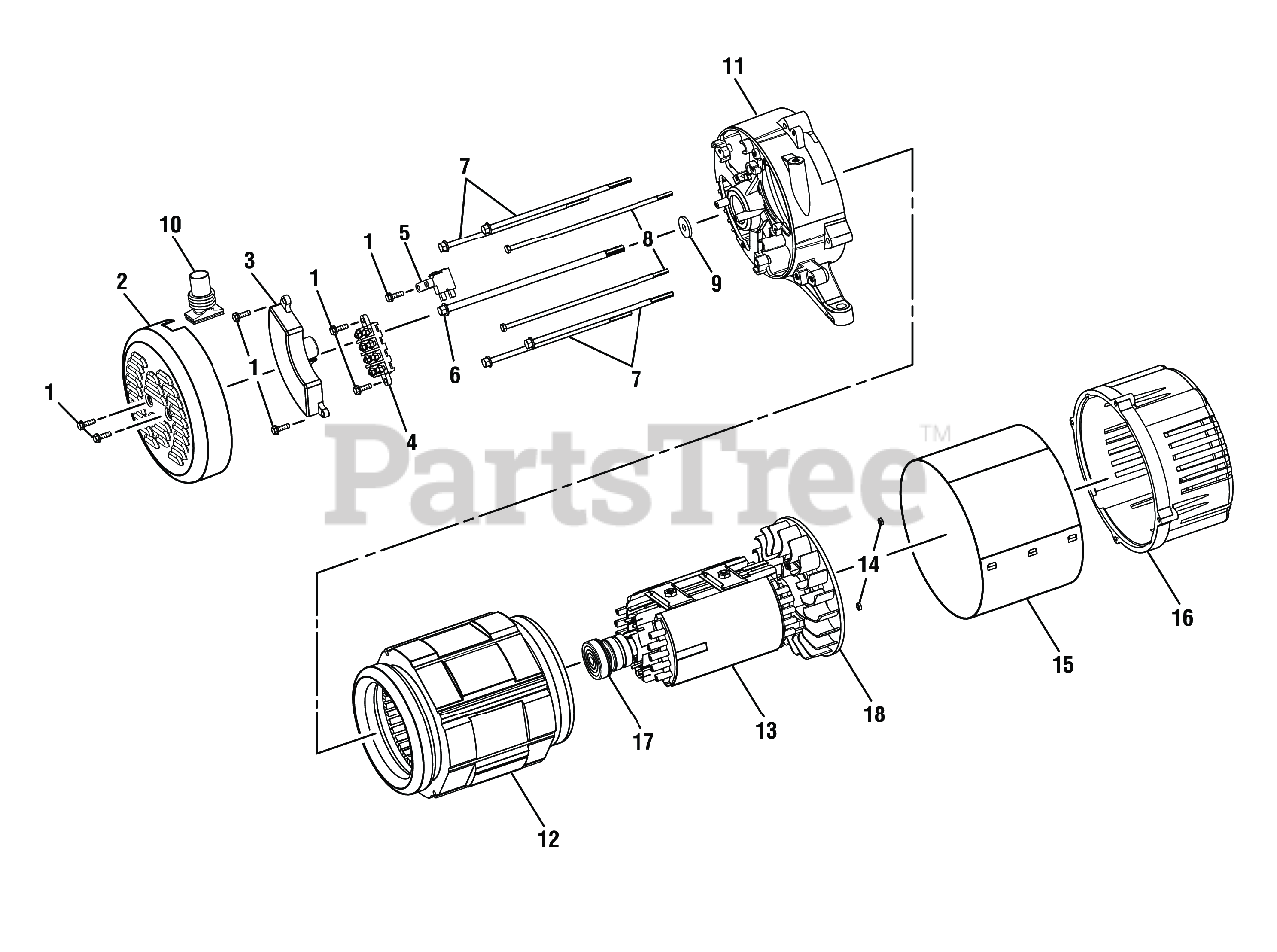

Figure A Parts Diagram

  • Title

1

Homelite 660938033

Bolt (M5 x 170 mm, Hex Washer Hd.)
(Superseded to 660938012)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440008

Automatic Voltage Regulator (5000 Watt)
(Superseded to 290440012)

$

$

Not available

4

Homelite 290602003

Terminal Block

$12.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 661603021

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$9.99

$

Usually ships in 3-7 days

0

7

Homelite 661603020

Bolt (M6 x 188 mm, Hex Washer Hd.)

$

$

Not available

8

Homelite 660938032

Bolt (M5 x 210 mm, Hex Washer Hd.)

$

$

Not available

9

Homelite 638623002

Washer (ID10.5 x OD25 x 2t)

$

$

Not available

10

Homelite 570766002

Rubber Boot

$

$

Not available

11

Homelite 678865003

Bearing Housing'

$

$

Not available

12

Homelite 310772058

Stator Assembly

$472.99

$

Usually ships in 3-7 days

0

13

Homelite 310771058

Rotor Assembly

$493.99

$

Usually ships in 3-7 days

0

14

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 638624016

Generator Head Cover

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 640331005

Generator Head Cover

$

$

Not available

17

Homelite 681963001

Ball Bearing (190 mm)

$20.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan (190 mm)

$

$

Not available
