BM 907015 (090930310) - Black Max 7000 Watt Generator, Rev 01 (2018-03) Figure A Parts Diagram

7000 Watt Generator, Rev 01

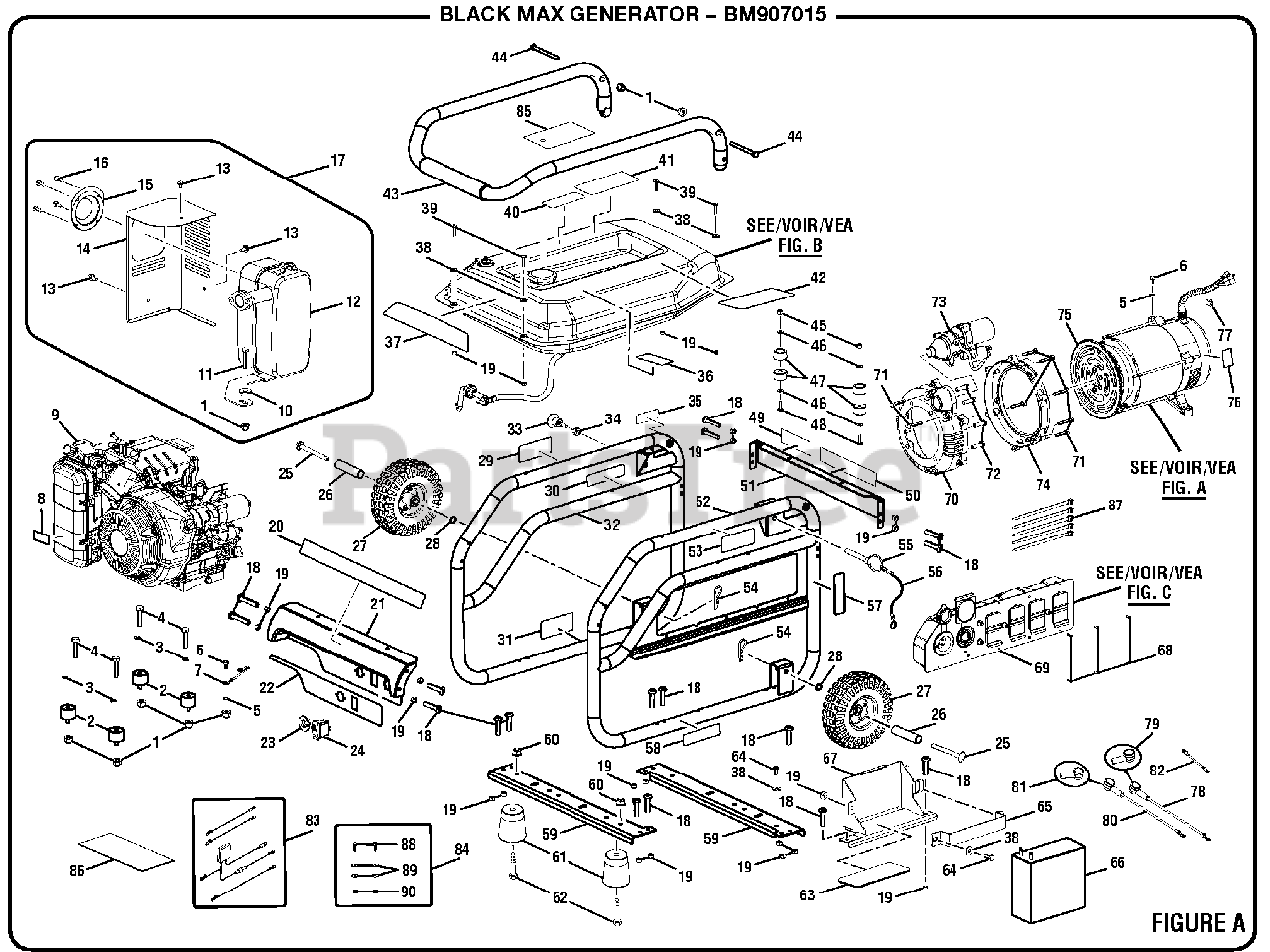

Figure A Parts Diagram

  • Title

1

Homelite 678774012

Lock Nut (M8 x 1.25 in.)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 570356012

Isolator

$

$

Not available

3

Homelite 673155001

Lock Washer (OD14.8 x ID8.5 x 1t)

$3.49

$

In Stock, only 1 left!

0

4

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

7

Homelite 290404001

Ground Wire Assembly

$

$

Not available

8

Homelite 940617105

Electric Start Label

$3.49

$

Usually ships in 3-7 days

0

9

Engine (Honda GX 390)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

10

Homelite 638675001

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 660599002

Bolt (5/16-24 x 5/8 in., Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 309322003

Muffler w/Brackets

$

$

Not available

13

Homelite 660975009

Bolt (M6 x 9 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 638497041

Heat Shield

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 638147003

Spark Arrestor

$

$

Not available

16

Homelite 6627750001

Screw (8-32 x 3/8 in., Pan Hd.)

$

$

Currently unavailable

17

Homelite 309322046

Muffler Assembly

Note: (Inc. Key Nos. 1 and 10-16)

$

$

Not available

18

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Hd.)

$3.49

$

In Stock, only 2 left!

0

19

Homelite 678460009

Lock Nut (M6)

$

$

Not available

20

Homelite 940705185

Logo Label (Honda)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 638959005

Fuel Tank Support (Front)

$35.99

$

Usually ships in 3-7 days

0

22

Homelite 940734158

Start Label

$

$

Not available

23

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, Qty 5

0

24

Homelite 270290008

Engine Switch

$

$

Not available

25

Homelite 681866006

Axle (M10 x 99 mm, Pan Hd.)

$

$

Not available

26

Homelite 638498003

Spacer

$3.49

$

In Stock, only 3 left!

0

27

Homelite 308451010

Wheel (10 in. x 3 in.)

$76.99

$

In Stock, Qty 6

0

28

Homelite 638422004

Washer (OD19.75 x ID10.5 x 1t)

$

$

Not available

29

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940680083

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 940947006

Combustion Label

$3.49

$

Usually ships in 3-7 days

0

32

Homelite 308581051

Frame (Left)

$

$

Not available

33

Homelite 308910010

Handle Release Pin

$

$

Not available

34

Homelite 678518002

Hex Jam Nut (1/2-20)

$5.49

$

Usually ships in 3-7 days

0

35

Homelite 940758020

Handle Release Label

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

37

Homelite 940608012

Black Max Label

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 673154002

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 661834005

Bolt (M6 x 25 mm,T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940872023

Fuel Stabilizer Label (Spanish)

$3.99

$

Usually ships in 3-7 days

0

41

Homelite 940515020

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

42

Homelite 940654255

Danger Icon Label

$7.49

$

Usually ships in 3-7 days

0

43

Homelite 310224044

Handle Assembly

$

$

Not available

44

Homelite 661851004

Handle Pivot Bolt (M8 x 98 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 678827003

Lock Nut (M4)

$

$

Not available

46

Homelite 673156001

Washer (OD9 x ID4.3 x 1t)

$

$

Not available

47

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 661850001

Screw (M4 x 12 mm, Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 941486006

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940513028

Ground Warning Label

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 638960011

Fuel Tank Support (Back)

$

$

Not available

52

Homelite 308581054

Frame (Right)

$

$

Not available

53

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

55

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, only 4 left!

0

56

Homelite 310715001

Lanyard

$

$

Not available

57

Homelite 940514008

Lock Pin Label

$6.49

$

Usually ships in 3-7 days

0

58

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 638735046

Frame Crossbar

$25.99

$

Usually ships in 3-7 days

0

60

Homelite 678774004

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 4 left!

0

61

Homelite 562856010

Rubber Foot

$

$

Not available

62

Homelite 661836007

Bolt (M8 x 45 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

63

Homelite 570630004

Gasket

$3.49

$

In Stock, only 1 left!

0

64

Homelite 661505030

Bolt (M6 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 308681009

Battery Bracket

$6.49

$

In Stock, only 1 left!

0

66

Homelite 750400010

Battery

$203.99

$

Usually ships in 3-7 days

0

67

Homelite 678714015

Battery Tray

$20.99

$

Usually ships in 3-7 days

0

68

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

69

Homelite 290403079

Control Panel Assembly See Figure C)

$368.99

$

Usually ships in 3-7 days

0

70

Homelite 640331009

Front Housing

$88.99

$

Usually ships in 3-7 days

0

71

Homelite 660973019

Bolt (M8 x 40 mm, Hex Hd.)

$

$

Not available

72

Homelite 660596002

Bolt (3/8-16 x 1 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

73

Homelite 230417008

Electric Starter (12V)

$211.99

$

Usually ships in 3-7 days

0

74

Homelite 640331010

Adaptor Housing

$

$

Not available

75

Homelite 310227075

Generator Head (See Figure A)

$

$

Not available

76

Homelite 940513002

Ground Label

$3.49

$

Usually ships in 3-7 days

0

77

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 290419006

Battery Cable (Black)

$10.99

$

Usually ships in 3-7 days

0

79

Homelite 570766014

Rubber Battery Cable Boot (Black)

$3.99

$

Usually ships in 3-7 days

0

80

Homelite 290418004

Battery Cable (Red)

$9.99

$

Usually ships in 3-7 days

0

81

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

82

Homelite 290455001

Bonding Wire

$2.99

$

Usually ships in 3-7 days

0

83

Homelite 290435009

Wiring Harness

$13.99

$

Usually ships in 3-7 days

0

84

Homelite 120302012

Fastener Kit

Note: (Inc. Key Nos. 88-90)

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable

86

Homelite 560878003

Rubber Sheet

$

$

Not available

87

Homelite 930717003

Zip Tie (5-1/2 in.)

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 661603001

Bolt (M5 x 10 mm, Hex Flange Hd.)

$

$

Not available

89

Homelite 638623010

Washer (OD12 x ID5.2 x 0.5t)

$

$

Currently unavailable

90

Homelite 678390001

Hex Nut (M5)

$

$

Not available

Homelite 991000484

Operator's Manual

Note: NOT SHOWN

$

$

Not available

Homelite 991000485

Quickstart Guide

$2.49

$

Usually ships in 3-7 days

0

Homelite 120302014

Hardware Kit

Note: (Inc. Key Nos. 25 28, 54, 60, and 61-62)

$37.99

$

Usually ships in 3-7 days

0
