BM 907500 BT (090930345) - Black Max 7500 Watt Generator, Rev 04 (2018-07) Figure A Parts Diagram

7500 Watt Generator, Rev 04

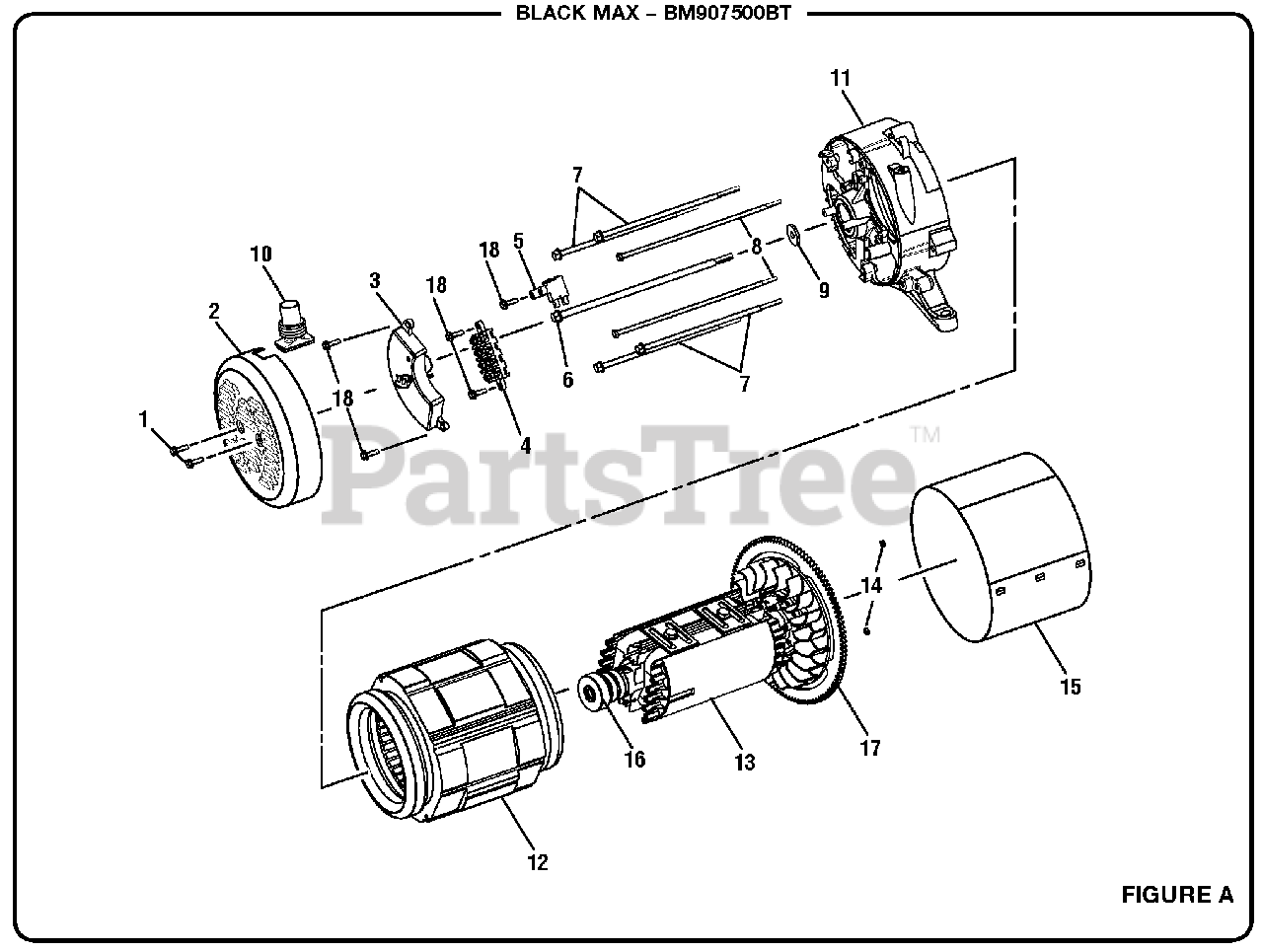

Figure A Parts Diagram

  • Title

1

Homelite 660938012

Bolt (M5 x 16 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440005

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

3

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

4

Homelite 290602003

Terminal Block

$12.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly

$

$

Not available

6

Homelite 661603030

Bolt (5/16-24 x 260 mm, Hex Washer Hd.)

$18.99

$

Usually ships in 3-7 days

0

7

Homelite 661603003

Bolt (M6 x 260 mm, Hex Washer Hd.)

$

$

Not available

8

Homelite 660938033

Bolt (M5 x 170 mm, Hex Washer Hd.)
(Superseded to 660938012)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 638623002

Washer (OD28 x ID10 x 3t)

$

$

Not available

10

Homelite 570766002

Rubber Boot

$

$

Not available

11

Homelite 678865003

Bearing Housing

$

$

Not available

12

Homelite 310772049

Stator Assembly

$

$

Not available

13

Homelite 310771065

Rotor Assembly

$

$

Not available

14

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 638624020

Generator Head Cover

$11.99

$

Usually ships in 3-7 days

0

16

Homelite 681963001

Ball Bearing

$20.99

$

Usually ships in 3-7 days

0

17

Homelite 310693002

Starter Gear

$

$

Not available

18

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0
