BM 907500 BT (090930345) - Black Max 7500 Watt Generator, Rev 04 (2018-07) Figure C Parts Diagram

7500 Watt Generator, Rev 04

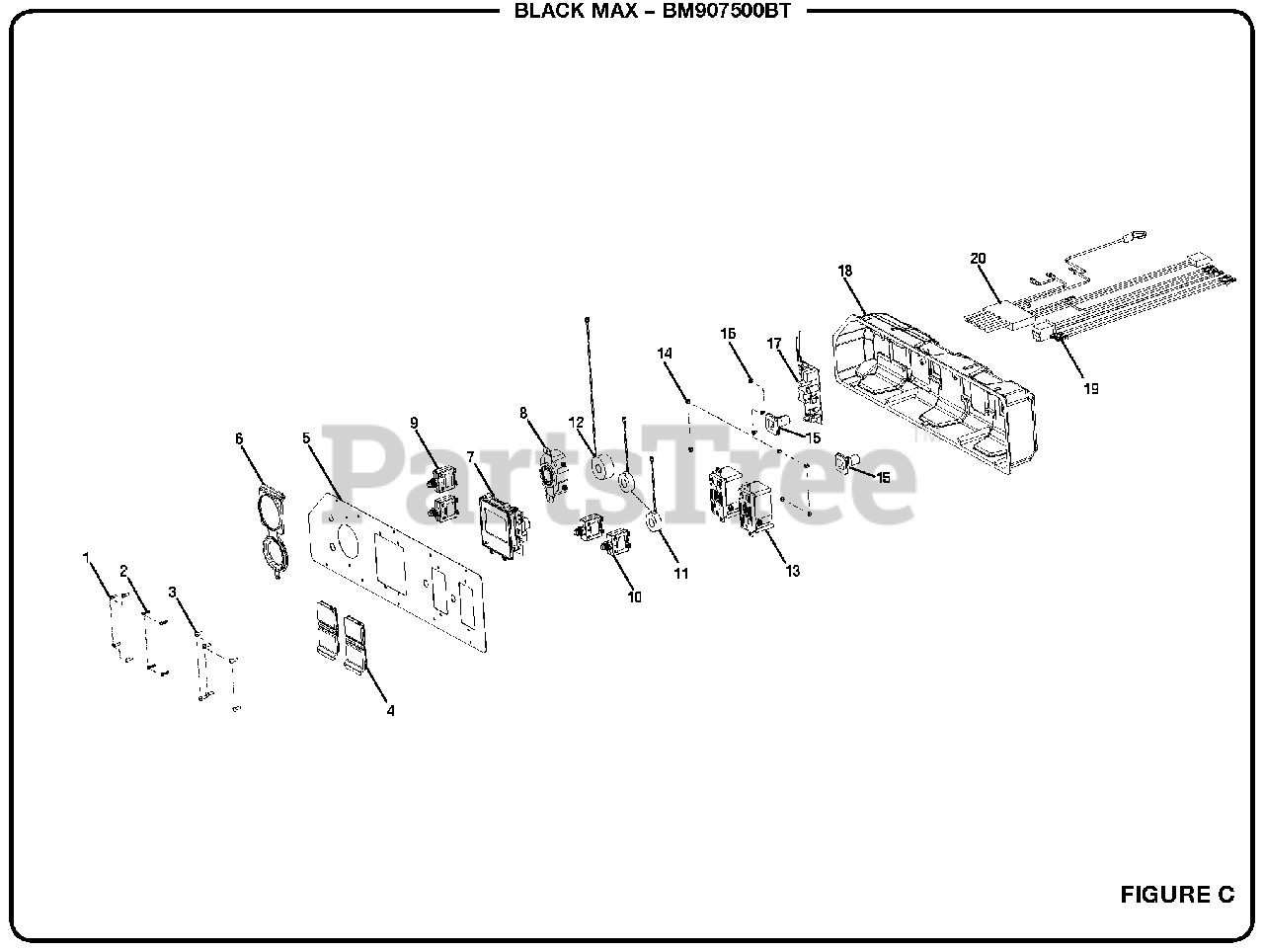

Figure C Parts Diagram

  • Title

1

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 660975016

Screw (M3.1 x 10 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 660212048

Screw (M4 x 10 mm, T10 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 570412002

120V Duplex Receptacle Cover

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 638496053

Control Panel Faceplate

$

$

Currently unavailable

6

Homelite 570412005

Twist Lock Receptacle Cover

$

$

Not available

7

Homelite 290432021

Display Assembly

$156.99

$

Usually ships in 3-7 days

0

8

Homelite 290401001

120/240V Receptacle (30A)

$15.99

$

In Stock, only 2 left!

0

9

Homelite 780351019

Circuit Breaker (30A)

$5.99

$

Usually ships in 3-7 days

0

10

Homelite 780350009

Circuit Breaker (20A)

$

$

Not available

11

Homelite 710013004

Circuit Current Transformer Type A- 20V

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 710013005

Circuit Current Transformer Type B- 240V

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 290400023

120V GFCI Duplex Receptacle

$45.99

$

Usually ships in 3-7 days

0

14

Homelite 678720001

Lock Nut (6-32, Hex Hd.)

$1.49

$

In Stock, only 4 left!

0

15

Homelite 570766003

Wire Protector

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 660923015

Screw (M3 x 5 mm, T10 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 140173027

Circuit Board Assembly

$35.99

$

Usually ships in 3-7 days

0

18

Homelite 519707018

Control Box

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 290400006

Maxcontrol Wire Harness

$

$

Not available

20

Homelite 290435060

Wire Harness

$7.49

$

Usually ships in 3-7 days

0
