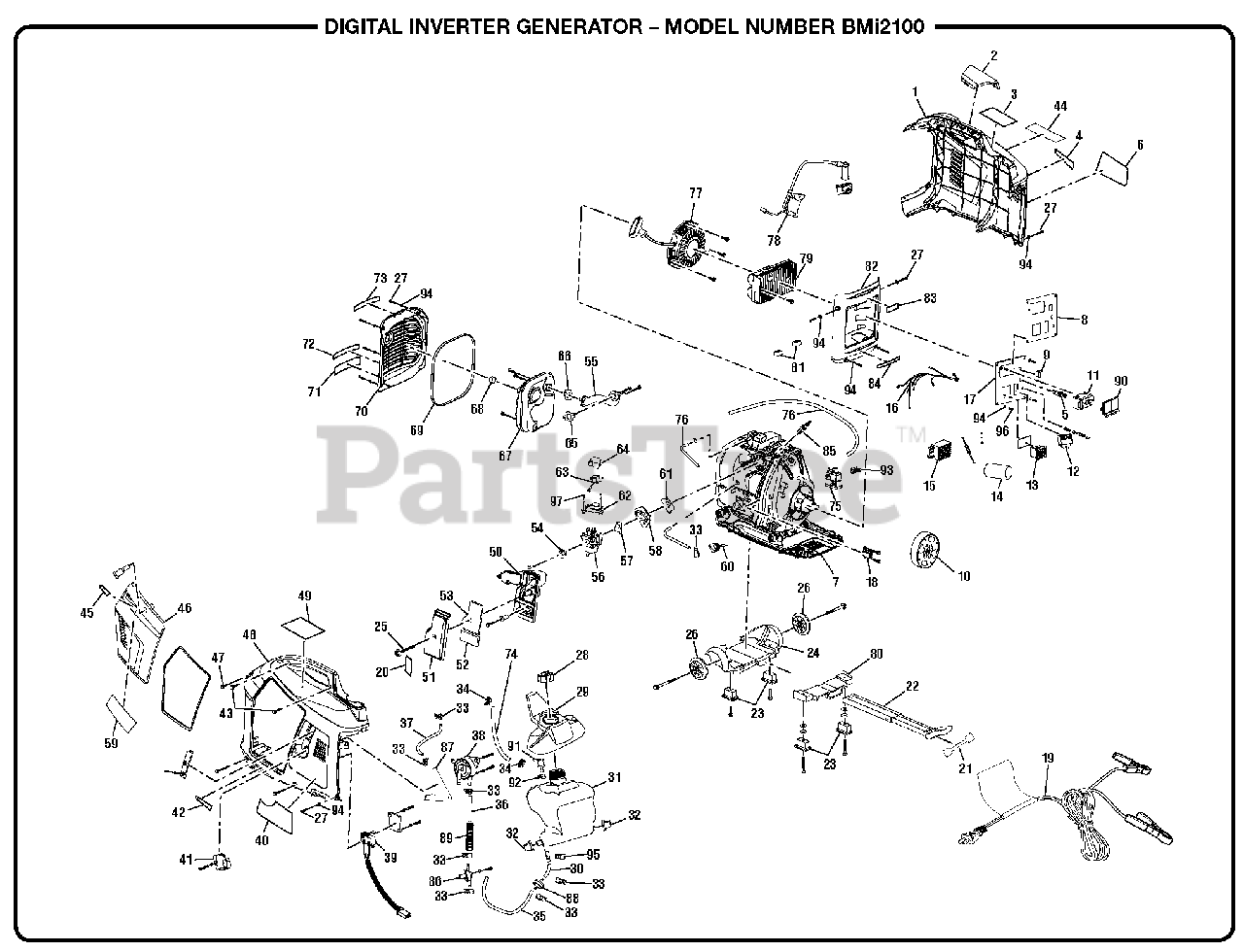

BM i2100 - Black Max Digital Inverter Generator General Assembly Parts Diagram

Digital Inverter Generator

General Assembly Parts Diagram

  • Title

1

Homelite 524003004

Right Housing

$

$

Not available

2

Homelite 638792004

Spark Plug Access Cover

$

$

Not available

3

Homelite 940707095

E85 Label

$

$

Not available

4

Homelite 940974091

Fire Danger Label

$

$

Not available

5

Homelite 760945001

Reset Button

$

$

Not available

6

Homelite 940789013

Features Label

$

$

Not available

7

Homelite 309594061

Engine

$

$

Currently unavailable

8

Homelite 940040037

Control Panel Label

$

$

Not available

9

Homelite 760504009

Auto Idle Switch

$1.99

$

In Stock, Qty 5

0

10

Homelite 310772013

Stator Assembly

$

$

Not available

11

Homelite 290400017

AC Receptacle (120 Volt)

$

$

Not available

12

Homelite 850201002

Ignition Module

$

$

Not available

13

Homelite 290400019

DC Receptacle

$

$

Not available

14

Homelite 570779001

Heat Shrink Tube

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 290433005

Bridge Rectifier

$27.99

$

Usually ships in 3-7 days

0

16

Homelite 290514007

Wiring Harness (Internal)

$

$

Not available

17

Homelite 638496034

Control Panel

$

$

Not available

18

Homelite 760504012

Pick-Up Coil

$9.99

$

Usually ships in 3-7 days

0

19

Homelite 290425003

Battery Charging Cable

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 940708020

Oil Warning Label

$

$

Not available

21

Homelite 940758019

Handle Release Label

$

$

Not available

22

Homelite 308790003

Handle Assembly

$41.99

$

Usually ships in 3-7 days

0

23

Homelite 570355005

Rubber Foot

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 310224027

Rear Handle and Wheel Bracket

$

$

Not available

25

Homelite GB/T 947-1988

Screw

$

$

Not available

26

Homelite 310223005

Wheel

$

$

Not available

27

Homelite 660342009

Screw (M5 x 15 mm)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 519709004

Fuel Cap Assembly

$

$

Not available

29

Homelite 518549002

Fuel Overspill Guard

$6.99

$

Usually ships in 3-7 days

0

30

Homelite 570358115

Fuel Line (Tank to Filter, 6 mm x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 310711118

Fuel Tank

$

$

Not available

32

Homelite 570355007

Fuel Tank Support

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678815010

Clamp (D9 x 1.2 mm)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 678815016

Clamp (D7 x 0.8 mm)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 570358116

Fuel Line (Filter to Valve, 6 mm x 10 mm)

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 570358117

Fuel Line (Valve to Pump, 6 mm x 10 mm)

$

$

Not available

37

Homelite 570358118

Fuel Line (Pump to Carburetor, 6 mm x 10 mm)

$

$

Not available

38

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

39

Homelite 291443001

Engine Shut Off Switch

$

$

Not available

40

Homelite 940617125

Quick Start Label

$

$

Not available

41

Homelite 524002001

Switch Handle

$

$

Not available

42

Homelite 940708021

Lubricant Label

$

$

Not available

43

Homelite 620599021

Bolt (M6 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940748018

Logo Label (Right)

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 940647086

Choke Label

$

$

Not available

46

Homelite 524016003

Maintenance Cover

$

$

Not available

47

Homelite GB/T 16674.1-2004

Bolt (M6 x 100 mm)

$

$

Currently unavailable

48

Homelite 524001004

Left Housing

$

$

Not available

49

Homelite 940515021

CPSC Label

$

$

Not available

50

Homelite ZJ158F.09-01-2

Air Filter Back

$

$

Not available

51

Homelite ZJ158F.09.01-5

Air Filter Cover

$

$

Not available

52

Homelite ZJ158F.09.01-6

Air Filter (Lower)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite ZJ158F.09.01-3

Air Filter (Upper)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 14201-A142-0000

Intake Gasket

$

$

Not available

55

Homelite ZJ158F.10-2

Exhaust Pipe

$

$

Not available

56

Homelite ZJ158F.09.02

Carburetor Assembly

$37.99

$

Usually ships in 3-7 days

0

57

Homelite 14004-A142-0000

Carburetor Gasket

$1.49

$

Usually ships in 3-7 days

0

58

Homelite ZJ158F.09-2

Intake Seat

$

$

Not available

59

Homelite 940748018

Logo Label (Left)

$2.99

$

Usually ships in 3-7 days

0

60

Homelite 11221-A142-0000

Dipstick

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 14001-A142-0000

Insulator Gasket

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 14422-A142-0000

Governor Bottom Cover

$

$

Not available

63

Homelite 230404001

Governor

$

$

Not available

64

Homelite 14421-A142-0000

Governor Top Cover

$

$

Not available

65

Homelite ZJ158F.10-1

Manifold Gasket

$1.49

$

Usually ships in 3-7 days

0

66

Homelite ZJ158F.10-3

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 308990048

Muffler

$132.99

$

Usually ships in 3-7 days

0

68

Homelite 638147005

Spark Arrestor

$4.49

$

Usually ships in 3-7 days

0

69

Homelite 638238003

Muffler Cover Seal

$5.99

$

In Stock, only 1 left!

0

70

Homelite 524012001

Muffler Cover
(Superseded to 524092001)

$17.99

$

Usually ships in 3-7 days

0

71

Homelite 940678338

Data Label

$

$

Currently unavailable

72

Homelite 940947007

Combustion Label

$

$

Not available

73

Homelite 940680046

Hot Surface Label

$0.99

$

Usually ships in 3-7 days

0

74

Homelite 570358120

Vent Hose (Tank to Carbon Canister)

$3.49

$

Usually ships in 3-7 days

0

75

Homelite 310722006

Carbon Canister

$

$

Not available

76

Homelite 570358119

Vent Hose (Carbon Canister to Air-box)

$3.49

$

Usually ships in 3-7 days

0

77

Homelite 310755007

Recoil Starter Assembly

$

$

Not available

78

Homelite 850202001

Ignition Coil

$30.99

$

Usually ships in 3-7 days

0

79

Homelite 290991007

Inverter Module

$352.99

$

Usually ships in 3-7 days

0

80

Homelite 310224026

Foot Brace (Front Handle)

$

$

Not available

81

Homelite 570355008

Inverter Module Support

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 524018001

Control Panel Holder

$3.49

$

Usually ships in 3-7 days

0

83

Homelite 940748016

Logo Label (Small)

$

$

Not available

84

Homelite 940513025

Ground Warning Label

$

$

Not available

85

Homelite 870174004

Spark Plug

$7.49

$

In Stock, Qty 10

0

86

Homelite 519711005

Fuel Shut Off Valve

$

$

Not available

87

Homelite 639138002

Fuel Pump Bracket

$

$

Not available

88

Homelite 308733008

Fuel Filter

$8.49

$

In Stock, Qty 7

0

89

Homelite 672947004

Fuel Line Spring

$

$

Not available

90

Homelite 570412003

Receptacle Cover

$4.99

$

Usually ships in 3-7 days

0

91

Homelite 638710002

Fuel Tank Vent Valve

$21.99

$

Usually ships in 3-7 days

0

92

Homelite 638711004

Grommet

$4.99

$

Usually ships in 3-7 days

0

93

Homelite 678815011

Clip (D9 x 1.2 mm)

$1.49

$

In Stock, only 1 left!

0

94

Homelite 638623005

Flat Washer (ID5.3 x OD10)

$1.49

$

Usually ships in 3-7 days

0

95

Homelite 678815015

Clamp (D10 x 0.8 mm)

$1.49

$

Usually ships in 3-7 days

0

96

Homelite GB/T 845-1985

Screw (M4.8×16 mm)

$1.49

$

Usually ships in 3-7 days

0

97

Homelite GB/T 818-2000

Screw (M3 x 5 mm)

$

$

Not available
