BM i900 LP (090930335) - Black Max Digital Inverter Generator, Rev 03 (2018-06) Figure F Parts Diagram

Digital Inverter Generator, Rev 03

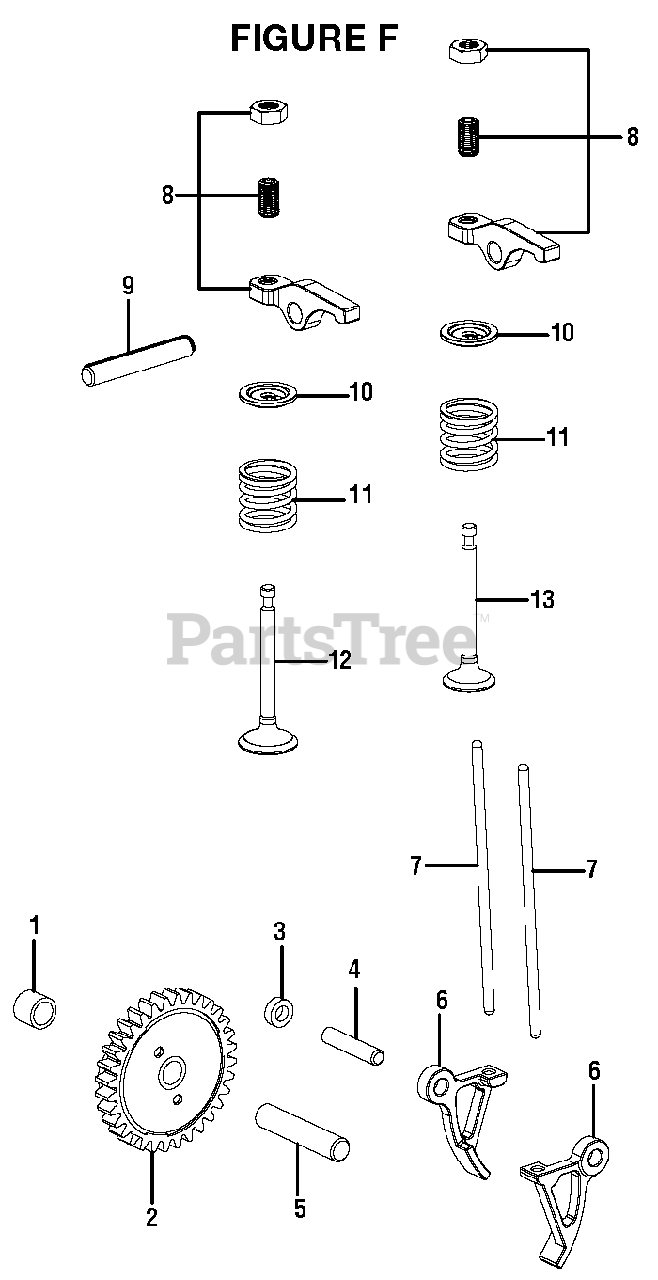

Figure F Parts Diagram

  • Title

1

Homelite 14760100006001

Bushing

$

$

Not available

2

Homelite 14760401100081

Camshaft

$

$

Not available

3

Homelite 14760400010041

Rocker Gasket

$

$

Not available

4

Homelite 00504000402003

Pin (G4 x 20 mm)

$

$

Not available

5

Homelite 00504000603003

Pin (G6 x 30 mm)

$

$

Not available

6

Homelite 14760400006002

Lower Rocker

$

$

Not available

7

Homelite 14760400009002

Tappet

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 14760400005002

Upper Rocker Assembly

$

$

Not available

9

Homelite 00504000503203

Pin (G6 x 32 mm)

$

$

Not available

10

Homelite 14760400003002

Valve Spring Seat

$

$

Not available

11

Homelite 14760400004002

Valve Spring

$

$

Not available

12

Homelite 14760400001101

Intake Valve

$

$

Not available

13

Homelite 14760400002101

Exhaust Valve

$6.99

$

Usually ships in 3-7 days

0
