C1-20OE01 (520-HC) - Toro Garden Tractor (1988) Electrical System 2 Parts Diagram

Garden Tractor

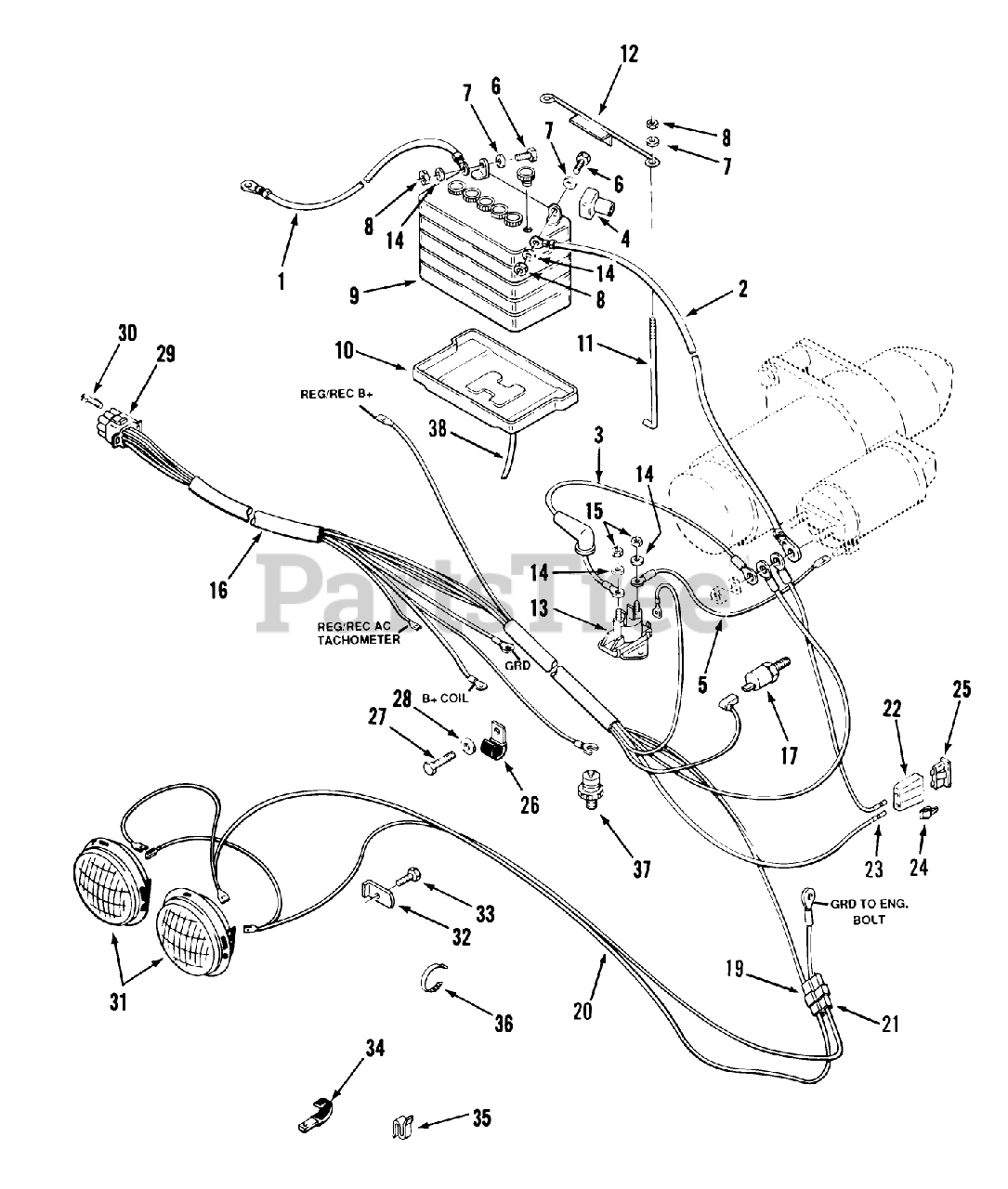

Electrical System 2 Parts Diagram

  • Title

1

Toro 114210

ASS'Y-WIRE

$

$

Not available

2

Toro 113925

ASS'Y-WIRE

$93.99

$

Usually ships in 3-6 days

0

3

Toro 114212

DISCONTINUED

$

$

Not available

4

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 114211

DISCONTINUED

$

$

Not available

6

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

8

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

9

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

9

Toro 110791

OBTAIN LOCALLY

$

$

Not available

9

Toro 112816

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

10

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

11

Toro 113969

HOOK-BATTERY RETAIN

$103.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$28.99

$

In Stock, only 3 left!

0

13

Toro 111674

SOLENOID-STARTER

$

$

Not available

14

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

15

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

16

Toro NN10294

DISCONTINUED

$

$

Not available

17

Toro NN10274

DISCONTINUED

$

$

Not available

18

Toro NN10291

DISCONTINUED

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

DISCONTINUED

$

$

Not available

20

Toro 114045

DISCONTINUED

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

22

Toro 109117

DISCONTINUED

$

$

Not available

23

Toro 108895

TERMINAL FUSE

$

$

Not available

23

Toro 109445

CLIP

$8.99

$

Usually ships in 3-6 days

0

25

Toro NN10277

FUSE-30 AMP

$

$

Not available

26

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available

27

Toro NN10399

See Supercession: 82-1540
(Superseded to 82-1540)

$

$

Not available

28

Toro NN10425

DISCONTINUED

$

$

Not available

29

Toro NN10281

DISCONTINUED

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$18.99

$

In Stock, only 2 left!

0

31

Toro 110792

See Supercession: 99-7310
(Superseded to 99-7310)

$65.99

$

Usually ships in 3-6 days

0

31

Toro 102881

HEADLAMP

$

$

Not available

32

Toro 109459

LOCK-HEADLIGHT

$8.49

$

In Stock, Qty 6

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

34

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

35

Toro 3023

DISCONTINUED

$

$

Not available

36

Toro 100571

DISCONTINUED

$

$

Not available

37

Toro NN10273

DISCONTINUED

$

$

Not available

38

Toro 114720

TUBE-21" BATTERY DRAIN

$8.49

$

Usually ships in 3-6 days

0
