CH1000-2002 - Kohler Command PRO Twin Engine, Basic Version, 37hp, 27.5kW 09 Engine Controls Parts Diagram

Command PRO Twin Engine, Basic Version, 37hp, 27.5kW

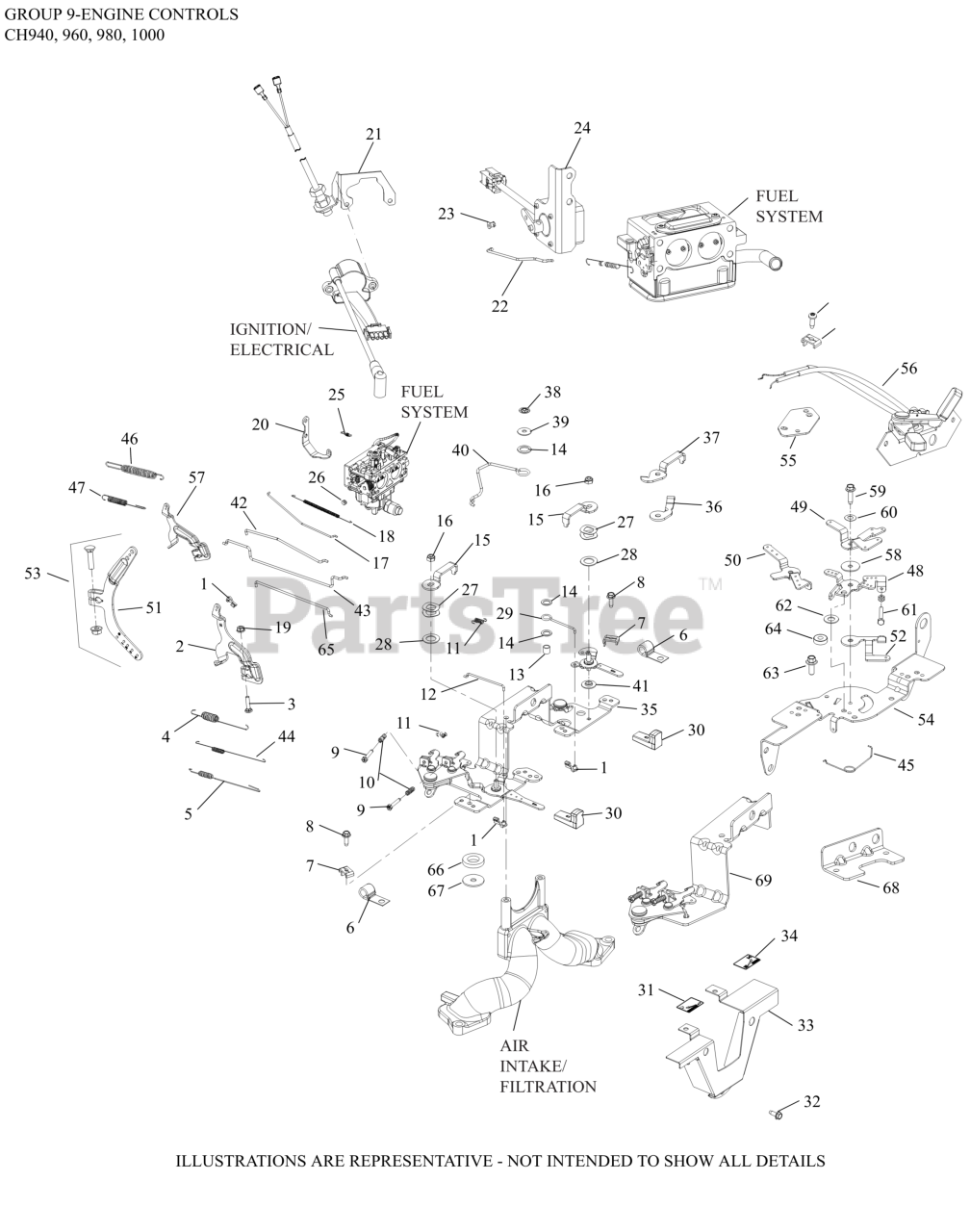

09 Engine Controls Parts Diagram

  • Title

1

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 20+

0

3

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 16

0

4

Kohler 62 089 21-S

SPRING, GOVERNOR IDLE

$9.49

$

In Stock, only 1 left!

0

5

Kohler 62 089 50-S

SPRING, GOVERNOR, HIGH SPEED

$9.49

$

In Stock, only 2 left!

0

7

Kohler 12 237 01-S

CLAMP, CABLE-(#2523753S)
(Superseded to 25 237 53-S)

$3.49

$

In Stock, only 1 left!

0

8

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

9

Kohler 20 086 10-S

SCREW, PHL THD FRM M4X0.7X25

$2.49

$

In Stock, only 3 left!

0

11

Kohler 62 089 20-S

SPRING, RETURN

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 62 079 11-S

LINKAGE, THROTTLE LEVER

$19.99

$

Usually ships in 2-5 days

0

13

Kohler 62 158 03-S

BUSHING

$

$

Not available

14

Kohler 62 468 02-S

WASHER, NYLON

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 62 079 08-S

LINKAGE, THROTTLE

$4.49

$

Usually ships in 2-5 days

0

18

Kohler 62 089 33-S

SPRING, LINKAGE

$7.49

$

In Stock, only 4 left!

0

19

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 17

0

20

Kohler 62 126 15-S

BRACKET, CHOKE ASSIST

$9.99

$

Usually ships in 2-5 days

0

23

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 16

0

25

Kohler 62 089 34-S

SPRING, CHOKE ASSIST

$5.49

$

In Stock, only 1 left!

0

26

Kohler 45 158 03-S

BUSHING-USE 25 158 08-S
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 16

0

29

Kohler 62 079 12-S

LINKAGE, CONTROL

$15.99

$

Usually ships in 2-5 days

0

35

Kohler 62 536 13-S

CONTROL ASSEMBLY, SPEED (HORIZONTAL)

$247.99

$

Usually ships in 2-5 days

0

38

Kohler 62 018 05-S

RETAINER, PALNUT

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 62 468 05-S

WASHER, STEEL

$2.49

$

Usually ships in 2-5 days

0

40

Kohler 62 079 17-S

LINKAGE, CHOKE HORIZONTAL

$11.99

$

Usually ships in 2-5 days

0

41

Kohler 20 468 07-S

WASHER, NYLON SHOULDER

$2.99

$

Usually ships in 2-5 days

0

57

Kohler 62 090 29-S

KIT, GOVERNOR LEVER

$11.99

$

In Stock, only 1 left!

0

62

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 9

0
