CH1006-3011 - Kohler Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW 04 CylinderHead/Breather Parts Diagram

Command PRO Twin Engine, Made for KPS, 37hp, 27.5kW

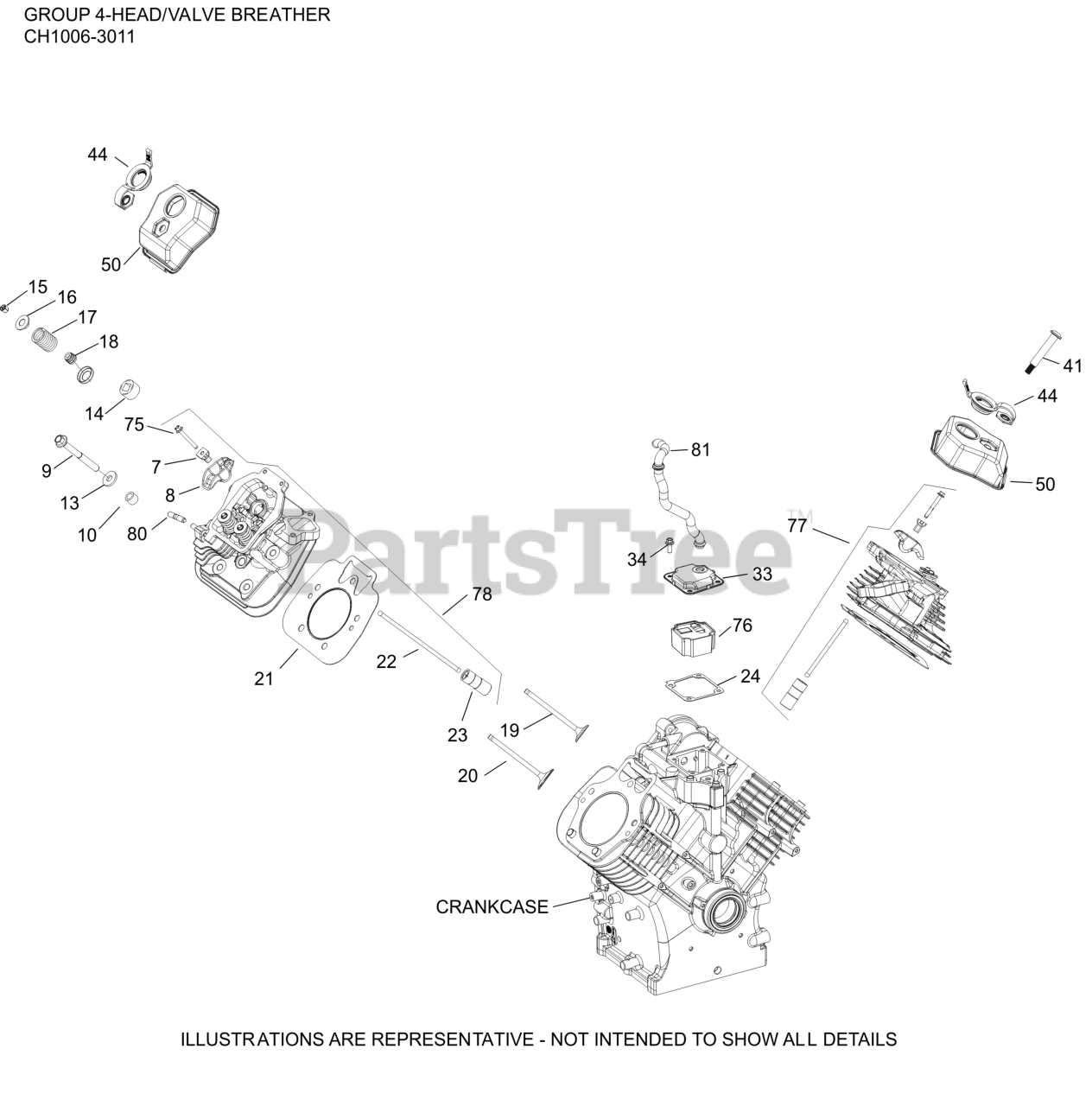

04 CylinderHead/Breather Parts Diagram

  • Title

7

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 7

0

8

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

9

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, only 2 left!

0

10

Kohler 62 112 03-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.99

$

In Stock, only 3 left!

0

14

Kohler 25 139 89-S

PLUG, PIPE 3/4 NPTF SQUARE

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 10

0

16

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

Usually ships in 2-5 days

0

17

Kohler 62 089 54-S

SPRING, VALVE

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

19

Kohler 62 016 06-S

VALVE, EXHAUST (NITRIDE)

$26.99

$

Usually ships in 2-5 days

0

20

Kohler 62 017 03-S

VALVE, INTAKE (NITRIDE)

$17.99

$

Usually ships in 2-5 days

0

21

Kohler 62 841 01-S

KIT, CYLINDER HEAD GASKET

$34.99

$

In Stock, only 2 left!

0

22

Kohler 12 411 04-S

ROD, PUSH

$5.49

$

Usually ships in 2-5 days

0

23

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC-USE 25 351 11-S
(Superseded to 25 351 11-S)

$27.99

$

In Stock, Qty 10

0

24

Kohler 62 041 27-S

GASKET, BREATHER

$2.99

$

In Stock, only 2 left!

0

33

Kohler 62 033 06-S

KIT, BREATHER ASSEMBLY

$65.99

$

Usually ships in 2-5 days

0

34

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 9

0

41

Kohler 25 086 410-S

SCREW, SHOULDER

$4.49

$

Usually ships in 2-5 days

0

44

Kohler 62 313 08-S

GROMMET, OIL FILL

$12.99

$

Usually ships in 2-5 days

0

50

Kohler 62 096 37-S

KIT, VALVE COVER

$26.99

$

Usually ships in 2-5 days

0

75

Kohler 25 086 777-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

76

Kohler 62 050 11-S

FILTER, BREATHER

$15.99

$

In Stock, only 2 left!

0

77

Kohler 62 818 07-S

KIT, #1 CYLINDER HEAD COMPLETE

$363.99

$

Usually ships in 2-5 days

0

78

Kohler 62 818 08-S

KIT, #2 CYLINDER HEAD COMPLETE

$363.99

$

Usually ships in 2-5 days

0

80

Kohler 25 072 24-S

STUD, METRIC EXHAUST

$4.99

$

In Stock, Qty 20+

0

81

Kohler 62 326 52-S

HOSE, BREATHER

$18.99

$

Usually ships in 0 days

0
