CH11-16127 - Kohler Command PRO Single Engine, Made for Netherlands, 11hp, 8.2kW Ignition/Electrical 5-27-189 Parts Diagram

Command PRO Single Engine, Made for Netherlands, 11hp, 8.2kW

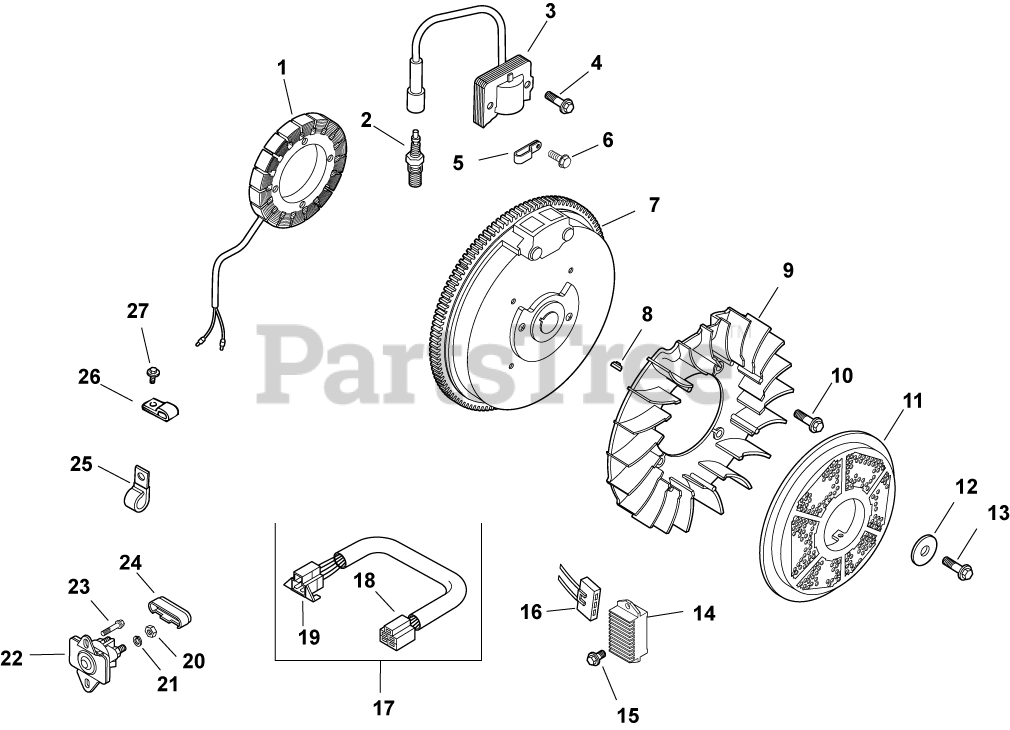

Ignition/Electrical 5-27-189 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 14

0

2

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

3

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

5

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

7

Kohler 12 025 19-S

FLYWHEEL

$393.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

10

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

11

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

12

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 5

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 9

0

14

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$105.99

$

Usually ships in 2-5 days

0

15

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, Qty 14

0

17

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

Note: (includes 18,19)

$55.99

$

Usually ships in 2-5 days

0

18

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

19

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

20

Kohler 25 100 19-S

NUT, JAM 1/4-20 GRADE 2

$4.49

$

Usually ships in 2-5 days

0

21

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 4 left!

0

22

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$84.99

$

In Stock, only 2 left!

0

23

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$4.99

$

In Stock, Qty 10

0

24

Kohler 25 173 07-S

CAP, SOLENOID - DISCONTINUED

$

$

Not available

25

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

26

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

27

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 12

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 2 left!

0

1217605-S

Kohler 12 176 05-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$221.99

$

Usually ships in 2-5 days

0

1251809-S

Kohler 12 518 09-S

LEAD, STARTER SOLENOID - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2551829-S

Kohler 25 518 29-S

LEAD, GROUND SOLENOID

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
