CH11-16128 - Kohler Command PRO Single Engine, Made for Alkota, 11hp, 8.2kW Fuel System 8-27-26 Parts Diagram

Command PRO Single Engine, Made for Alkota, 11hp, 8.2kW

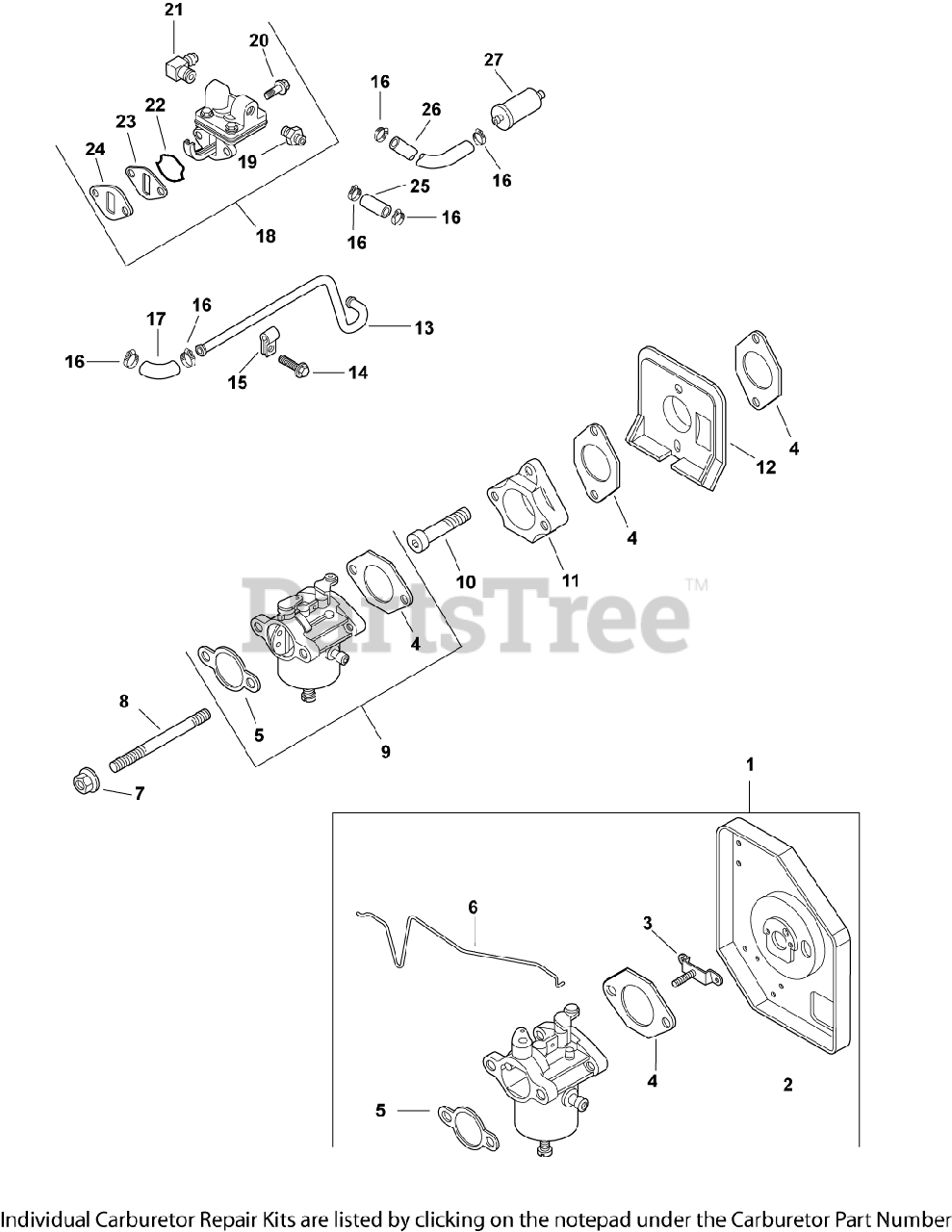

Fuel System 8-27-26 Parts Diagram

  • Title

1

Kohler 12 853 33-S

KIT, CARB. RETROFIT

Note: (includes 2-6)

$224.99

$

Usually ships in 2-5 days

0

2

Kohler 12 094 06-S

BASE, AIR CLEANER

$43.99

$

Usually ships in 2-5 days

0

3

Kohler 12 126 46-S

BRACKET, AIR CLEANER

$121.99

$

Usually ships in 2-5 days

0

4

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

6

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

7

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, only 2 left!

0

8

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 6

0

9

Kohler 12 853 98-S

KIT, CARBURETOR

Note: (includes 4,5)

$298.99

$

In Stock, only 3 left!

0

10

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

12

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

13

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

14

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

15

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, Qty 12

0

17

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

Usually ships in 2-5 days

0

18

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 19-24)

$48.99

$

In Stock, Qty 19

0

19

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, Qty 11

0

20

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 20+

0

21

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$7.99

$

Usually ships in 2-5 days

0

22

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, Qty 7

0

23

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

Usually ships in 2-5 days

0

24

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, Qty 13

0

25

Kohler 12 353 01-S

LINE - DISCONTINUED

$

$

Not available

26

Kohler 41 353 15-S

LINE, FUEL 2" PUMP-FILTER

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

M-664020-S

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 1 left!

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 4 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 6

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$18.99

$

In Stock, Qty 14

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$60.99

$

In Stock, Qty 5

0
