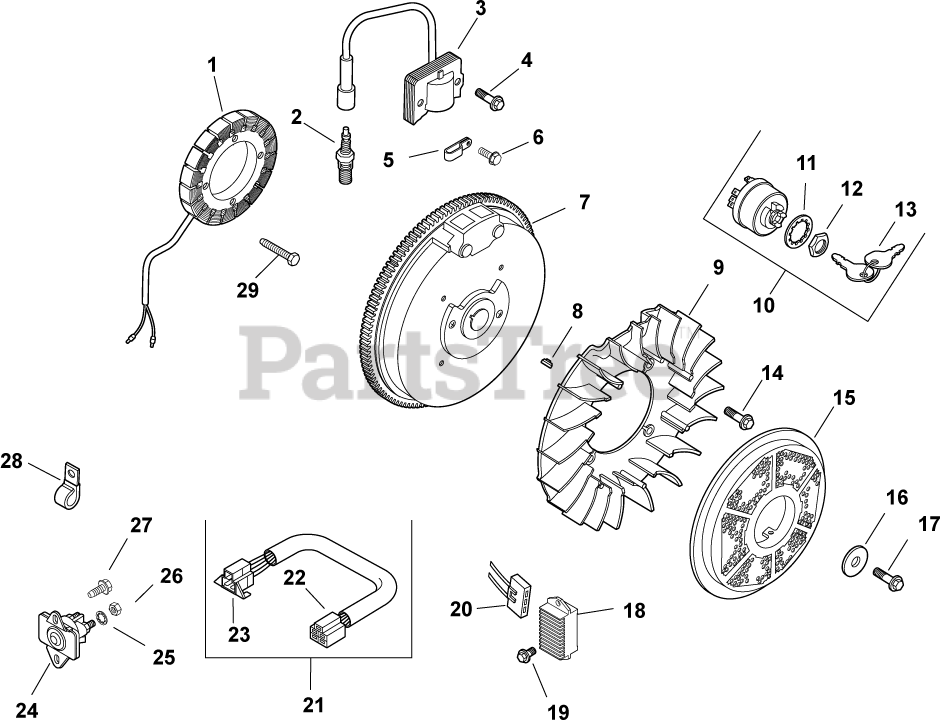

CH11-16134 - Kohler Command PRO Single Engine, Made for Ricona, 11hp, 8.2kW Ignition/Electrical 5-27-224 Parts Diagram

Command PRO Single Engine, Made for Ricona, 11hp, 8.2kW

Ignition/Electrical 5-27-224 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 3 left!

0

2

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

3

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

5

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

7

Kohler 12 025 19-S

FLYWHEEL

$393.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

In Stock, only 2 left!

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 2 left!

0

13

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 2 left!

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

15

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

16

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 5

0

17

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 9

0

18

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 48-S)

$87.99

$

In Stock, Qty 20+

0

19

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

20

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, Qty 14

0

21

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

Note: (includes 22,23)

$55.99

$

Usually ships in 2-5 days

0

22

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

23

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

24

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$84.99

$

In Stock, only 2 left!

0

25

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 4 left!

0

26

Kohler 25 100 19-S

NUT, JAM 1/4-20 GRADE 2

$4.49

$

Usually ships in 2-5 days

0

27

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$4.99

$

In Stock, Qty 9

0

28

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

29

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$2.49

$

Usually ships in 2-5 days

0

1246801-S

Kohler 12 468 01-S

WASHER, FLAT 11/32"

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0

1215406-S

Kohler 12 154 06-S

CLIP, HOSE - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available

1217611-S

Kohler 12 176 11-S

HARNESS, WIRING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

1251809-S

Kohler 12 518 09-S

LEAD, STARTER SOLENOID - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2551829-S

Kohler 25 518 29-S

LEAD, GROUND SOLENOID

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24755144-S

Kohler 24 755 144-S

KIT, FULL WAVE CONVERSION

Note: (INCLUDES 27, 24 518 12-S, 25 403 08-S, & 25 452 01-S)

$209.99

$

Usually ships in 2-5 days

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 2 left!

0

2540308-S

Kohler 25 403 08-S

REG-RECTIFIER (25 AMP)-USE 25 403 21-S
(Superseded to 25 403 48-S)

Note: NOT ILLUSTRATED

$87.99

$

In Stock, Qty 20+

0

2545201-S

Kohler 25 452 01-S

TERMINAL

$5.49

$

In Stock, only 1 left!

0
