CH11-16136 - Kohler Command PRO Single Engine, Made for Crafco, 11hp, 8.2kW Fuel System 8-27-167 Parts Diagram

Command PRO Single Engine, Made for Crafco, 11hp, 8.2kW

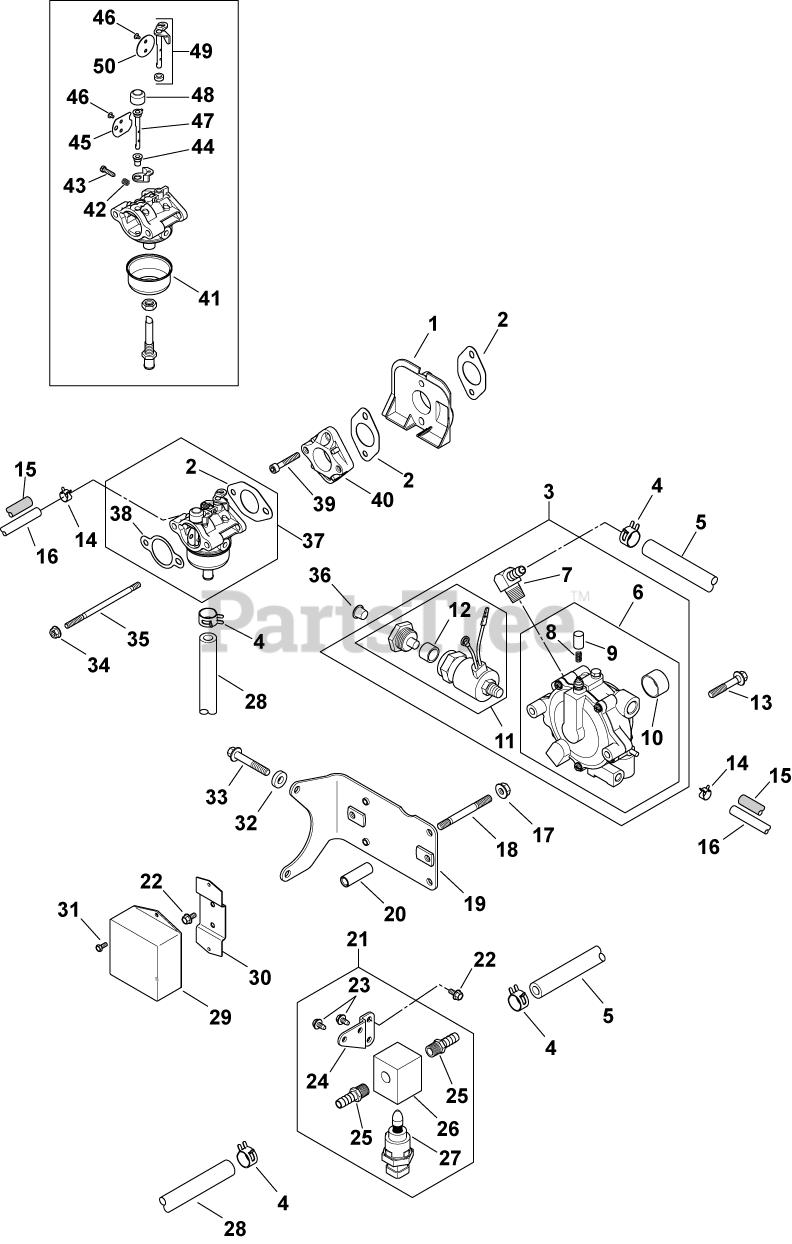

Fuel System 8-27-167 Parts Diagram

  • Title

1

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 3 left!

0

2

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

3

Kohler 12 403 04-S

REGULATOR - DISCONTINUED

$

$

Not available

4

Kohler 25 237 18-S

CLAMP, SPRING HOSE

$2.49

$

In Stock, only 1 left!

0

5

Kohler 12 353 22-S

LINE, LP FUEL

$37.99

$

Usually ships in 2-5 days

0

6

Kohler 24 403 04-S

REGULATOR, 2 STAGE FUEL-USE 24 403 23-S
(Superseded to 24 403 23-S)

$933.99

$

Usually ships in 2-5 days

0

7

Kohler 24 294 10-S

FITTING, 90 BARBED

$20.99

$

Usually ships in 2-5 days

0

8

Kohler 24 089 39-S

SPRING, ANTI-TAMPER

$3.49

$

In Stock, only 1 left!

0

9

Kohler 24 173 05-S

CAP

$29.99

$

Usually ships in 2-5 days

0

10

Kohler 24 173 04-S

CAP

$26.99

$

Usually ships in 2-5 days

0

11

Kohler 24 435 04-S

SOLENOID, 12VDC LOCKOFF
(Superseded to 24 435 10-S)

$279.99

$

Usually ships in 2-5 days

0

12

Kohler 24 050 04-S

FILTER, DRY FUEL
(Superseded to 24 050 26-S)

$29.99

$

In Stock, only 1 left!

0

13

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

14

Kohler 25 237 01-S

CLAMP, HOSE

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

16

Kohler 12 353 17-S

LINE, FLEXIBLE FUEL - DISCONTINUED

$

$

Not available

17

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 20+

0

18

Kohler M-829133-S

STUD, M8X1.25X133-USE 25 755 54-S
(Superseded to 25 755 54-S)

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 12 126 78-S

BRACKET, REGULATOR - DISC.

$

$

Not available

20

Kohler 12 112 19-S

SPACER

$87.99

$

Usually ships in 2-5 days

0

21

Kohler 12 535 01-S

MIXER ASSEMBLY - DISCONTINUED

$

$

Not available

22

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 3 left!

0

23

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

24

Kohler 25 126 03-S

BRACKET, VALVE ASSEMBLY

$39.99

$

Usually ships in 2-5 days

0

25

Kohler 25 294 04-S

FITTING - DISCONTINUED

$

$

Not available

26

Kohler 25 128 01-S

MIXER, VALVE - DISCONTINUED

$

$

Not available

27

Kohler 12 179 01-S

ACTUATOR, LINEAR - DISCONTINUED

$

$

Not available

28

Kohler 12 353 21-S

LINE, LP FUEL - DISCONTINUED

$

$

Not available

29

Kohler 12 526 05-S

CONTROL UNIT, ELECTRONIC - DISCONTINUED

$

$

Not available

30

Kohler 12 126 66-S

BRACKET, ECU

$22.99

$

Usually ships in 2-5 days

0

31

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0

33

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$3.99

$

Usually ships in 2-5 days

0

34

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 5

0

35

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 6

0

36

Kohler 25 139 23-S

PLUG, CAP 1/4 INCH

$2.49

$

Usually ships in 2-5 days

0

37

Kohler 42 853 04-S

KIT, CARBURETOR - DISCONTINUED

Note: (includes 2 [qty 1], 38, 41-50)

$

$

Not available

38

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

39

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

40

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

41

Kohler 12 104 01-S

BOWL

$7.99

$

In Stock, Qty 11

0

42

Kohler 12 089 09-S

SPRING

$2.49

$

In Stock, only 2 left!

0

43

Kohler 12 086 04-S

SCREW

$4.49

$

In Stock, only 2 left!

0

44

Kohler 12 158 01-S

BUSHING, CHOKE

$12.99

$

Usually ships in 2-5 days

0

45

Kohler 12 146 12-S

PLATE, CHOKE

$4.49

$

Usually ships in 2-5 days

0

46

Kohler 25 086 27-S

SCREW, VALVE

$4.49

$

Usually ships in 2-5 days

0

47

Kohler 12 144 20-S

SHAFT, CHOKE

$28.99

$

Usually ships in 2-5 days

0

48

Kohler 12 173 06-S

CAP, CHOKE LEVER

$6.49

$

In Stock, only 2 left!

0

49

Kohler 12 144 09-S

SHAFT, THROTTLE

$14.99

$

In Stock, only 2 left!

0

50

Kohler 12 146 03-S

PLATE

$10.99

$

Usually ships in 2-5 days

0

1275713-S

Kohler 12 757 13-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$47.99

$

Usually ships in 2-5 days

0

1275734-S

Kohler 12 757 34-S

KIT, CHOKE LEVER REPAIR

Note: NOT ILLUSTRATED

$14.99

$

In Stock, only 2 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2511316-S

Kohler 25 113 16-S

DECAL (EMISSION SENTRY) - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2510018-S

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2475724-S

Kohler 24 757 24-S

KIT, REPAIR FUEL REG 1ST STAGE

Note: NOT ILLUSTRATED

$316.99

$

Usually ships in 2-5 days

0

2475725-S

Kohler 24 757 25-S

KIT, REPAIR FUEL REG 2ND STAGE

Note: NOT ILLUSTRATED

$234.99

$

Usually ships in 2-5 days

0

2475726-S

Kohler 24 757 26-S

KIT, REPAIR FUEL REG DIAPHRGMS

Note: NOT ILLUSTRATED

$400.99

$

Usually ships in 2-5 days

0

2475727-S

Kohler 24 757 27-S

KIT, REPAIR FUEL REG LEVERS

Note: NOT ILLUSTRATED

$32.99

$

Usually ships in 2-5 days

0

2475739-S

Kohler 24 757 39-S

KIT, REGULATOR REBUILD

Note: NOT ILLUSTRATED

$683.99

$

Usually ships in 2-5 days

0
