CH12.5-1920 - Kohler Command PRO Single Engine, Made for Cub Cadet, 12.5hp Starting System, Electric 7-27-30 Parts Diagram

Command PRO Single Engine, Made for Cub Cadet, 12.5hp

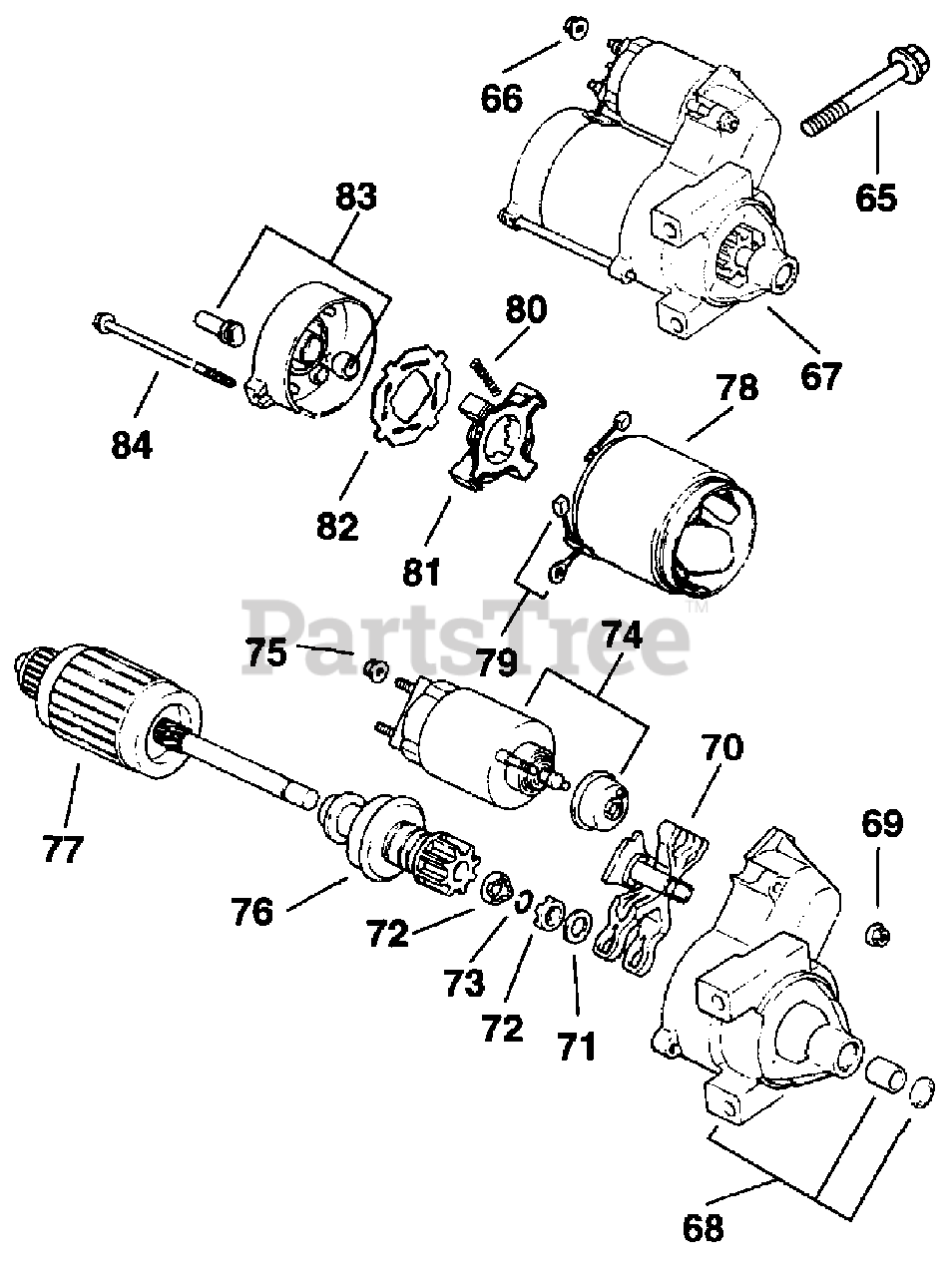

Starting System, Electric 7-27-30 Parts Diagram

  • Title

65

Kohler M-0839080

Screw, hex. flange M8x1.25x80

$

$

Not available

66

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, Qty 20+

0

67

Kohler 12 098 03-S

USE 25 098 08-S STARTER
(Superseded to 25 098 09-S)

Note: Before Serial No. 2330600014. Nippondenso. Includes 68-84

$264.99

$

Usually ships in 2-5 days

0

68

Kohler 12 081 02-S

DRIVE END CAP

Note: Before Serial No. 2330600014

$432.99

$

Usually ships in 2-5 days

0

69

Kohler 52 100 10-S

NUT

Note: Before Serial No. 2330600014

$5.49

$

Usually ships in 2-5 days

0

70

Kohler 12 090 10-S

LEVER, DRIVE

Note: Before Serial No. 2330600014

$91.99

$

Usually ships in 2-5 days

0

71

Kohler 52 468 14

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: Before Serial No. 2330600014

$62.99

$

Usually ships in 2-5 days

0

72

Kohler 52 100 08

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: Before Serial No. 2330600014

$62.99

$

Usually ships in 2-5 days

0

73

Kohler 52 141 03

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: Before Serial No. 2330600014

$62.99

$

Usually ships in 2-5 days

0

74

Kohler 52 435 02-S

SOLENOID

Note: Before Serial No. 2330600014

$566.99

$

Usually ships in 2-5 days

0

75

Kohler 52 100 09-S

NUT

Note: Before Serial No. 2330600014

$5.99

$

Usually ships in 2-5 days

0

76

Kohler 12 239 01-S

DRIVE PINION

Note: Before Serial No. 2330600014

$361.99

$

Usually ships in 2-5 days

0

77

Kohler 12 170 03-S

ARMATURE - DISCONTINUED

Note: Before Serial No. 2330600014

$

$

Not available

78

Kohler 12 471 01-S

FRAME W/BRUSHES - DISCONTINUED

Note: Before Serial No. 2330600014

$

$

Not available

79

Kohler 52 221 01-S

BRUSH & SPRING KIT

Note: Before Serial No. 2330600014. Includes 80

$130.99

$

Usually ships in 2-5 days

0

80

Kohler 52 089 09-S

SPRING, BRUSH

Note: Before Serial No. 2330600014

$7.99

$

Usually ships in 2-5 days

0

81

Kohler 52 323 03-S

BRUSH HOLDER

Note: Before Serial No. 2330600014

$23.99

$

Usually ships in 2-5 days

0

82

Kohler 52 168 01-S

INSULATOR

Note: Before Serial No. 2330600014

$35.99

$

Usually ships in 2-5 days

0

83

Kohler 12 301 01-S

COMMUTATOR END CAP - DISCONTINUED

Note: Before Serial No. 2330600014

$

$

Not available

84

Kohler 52 211 05-S

THRU BOLT

Note: Before Serial No. 2330600014

$11.99

$

Usually ships in 2-5 days

0

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

$

$

Not available
