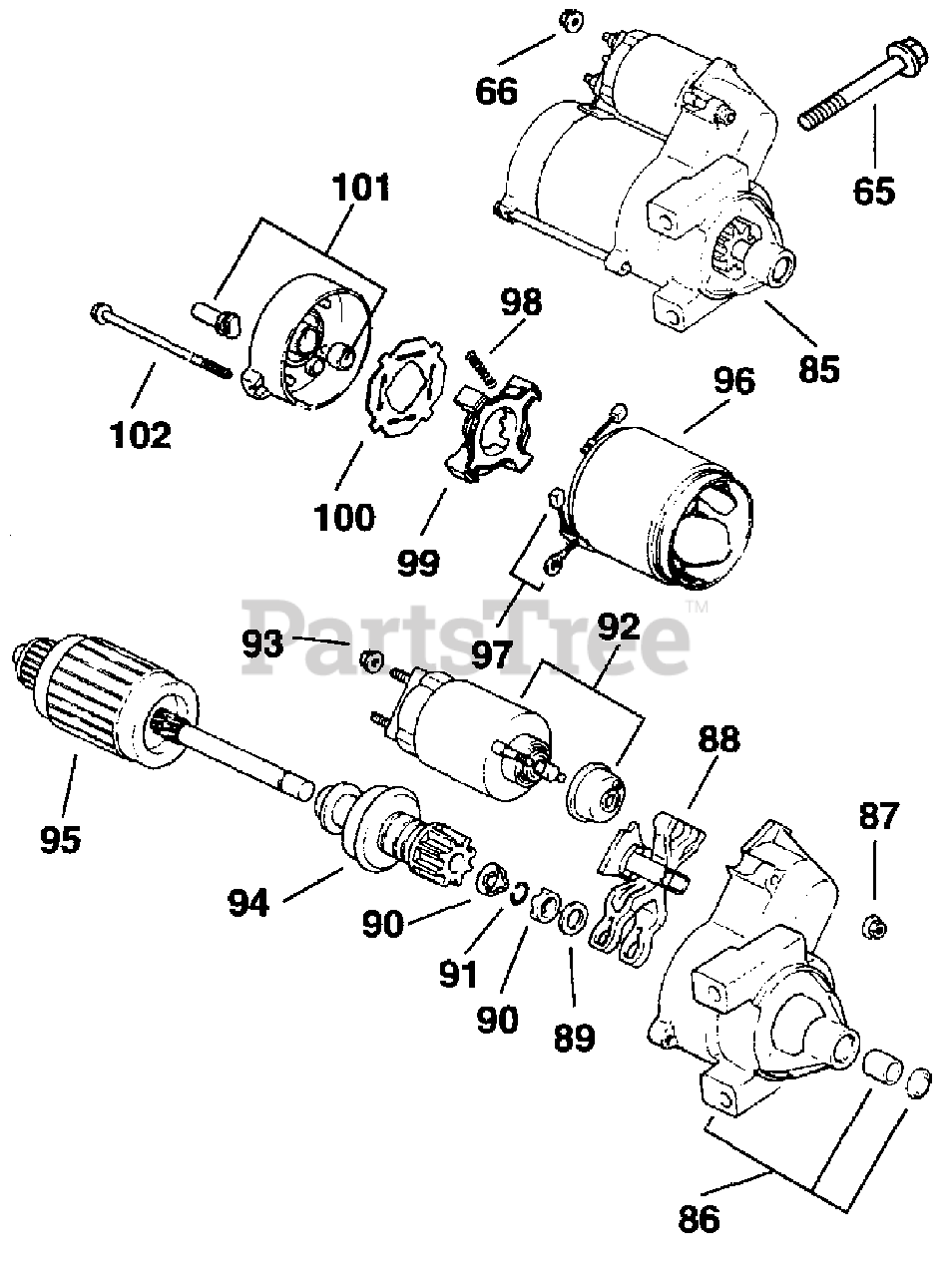

CH12.5-1920 - Kohler Command PRO Single Engine, Made for Cub Cadet, 12.5hp Starting System, Electric (Cont.) 7-27-30 Parts Diagram

Command PRO Single Engine, Made for Cub Cadet, 12.5hp

Starting System, Electric (Cont.) 7-27-30 Parts Diagram

  • Title

65

Kohler M-0839080

Screw, hex. flange M8x1.25x80

$

$

Not available

66

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, Qty 20+

0

85

Kohler 24 098 01-S

USE 25 098 09-S STARTER
(Superseded to 25 098 09-S)

Note: After Serial No. 2330600004. Nippondenso. Includes 86-102

$264.99

$

Usually ships in 2-5 days

0

86

Kohler 24 081 04-S

DRIVE, END CAP

Note: After Serial No. 2330600004

$365.99

$

Usually ships in 2-5 days

0

87

Kohler 52 100 10-S

NUT

Note: After Serial No. 2330600004

$5.49

$

Usually ships in 2-5 days

0

88

Kohler 12 090 10-S

LEVER, DRIVE

Note: After Serial No. 2330600004

$91.99

$

Usually ships in 2-5 days

0

89

Kohler 52 468 14

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: After Serial No. 2330600004

$62.99

$

Usually ships in 2-5 days

0

90

Kohler 52 100 08

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: After Serial No. 2330600004

$62.99

$

Usually ships in 2-5 days

0

91

Kohler 52 141 03

KIT - USE 24 755 84
(Superseded to 24 755 84)

Note: After Serial No. 2330600004

$62.99

$

Usually ships in 2-5 days

0

92

Kohler 52 435 02-S

SOLENOID

Note: After Serial No. 2330600004

$566.99

$

Usually ships in 2-5 days

0

93

Kohler 52 100 09-S

NUT

Note: After Serial No. 2330600004

$5.99

$

Usually ships in 2-5 days

0

94

Kohler 12 239 01-S

DRIVE PINION

Note: After Serial No. 2330600004

$361.99

$

Usually ships in 2-5 days

0

95

Kohler 12 170 03-S

ARMATURE - DISCONTINUED

Note: After Serial No. 2330600004

$

$

Not available

96

Kohler 12 471 01-S

FRAME W/BRUSHES - DISCONTINUED

Note: After Serial No. 2330600004

$

$

Not available

97

Kohler 52 221 01-S

BRUSH & SPRING KIT

Note: After Serial No. 2330600004. Includes 98

$130.99

$

Usually ships in 2-5 days

0

98

Kohler 52 089 09-S

SPRING, BRUSH

Note: After Serial No. 2330600004

$7.99

$

Usually ships in 2-5 days

0

99

Kohler 52 323 03-S

BRUSH HOLDER

Note: After Serial No. 2330600004

$23.99

$

Usually ships in 2-5 days

0

100

Kohler 52 168 01-S

INSULATOR

Note: After Serial No. 2330600004

$35.99

$

Usually ships in 2-5 days

0

101

Kohler 24 301 01-S

COMMUTATOR, END CAP - DISCONTINUED

Note: After Serial No. 2330600004

$

$

Not available

102

Kohler 52 211 05-S

THRU BOLT

Note: After Serial No. 2330600004

$11.99

$

Usually ships in 2-5 days

0

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

$

$

Not available
