CH13-22509 - Kohler Command PRO Single Engine, Basic Version, 13hp, 9.7kW Oil Pan/Lubrication 3-27-125 Parts Diagram

Command PRO Single Engine, Basic Version, 13hp, 9.7kW

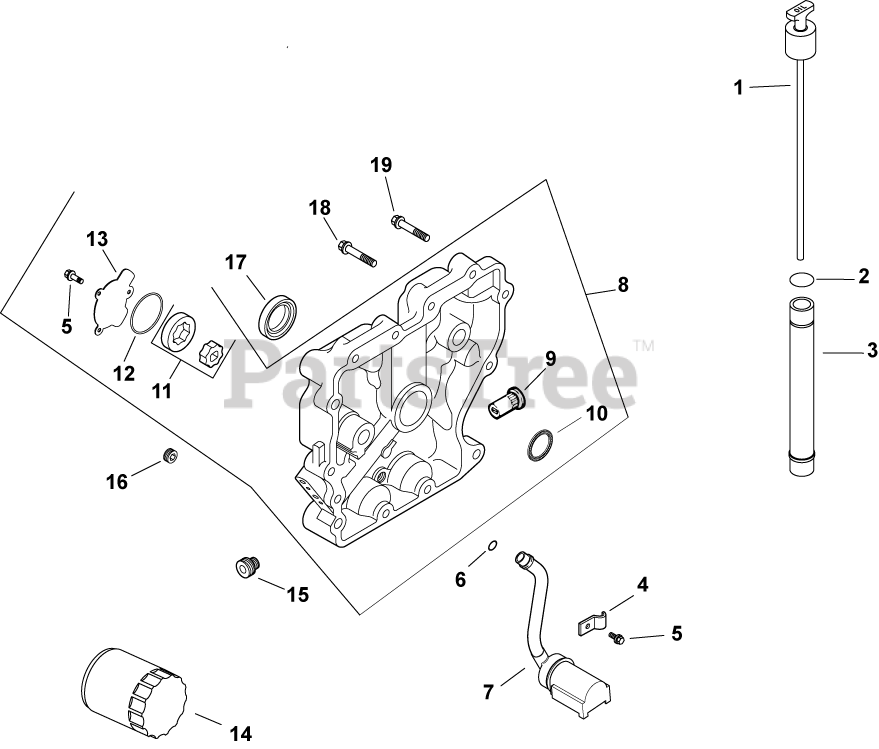

Oil Pan/Lubrication 3-27-125 Parts Diagram

  • Title

1

Kohler 12 038 14-S

DIPSTICK ASSEMBLY, OIL FILL

$

$

Not available

2

Kohler 41 153 01-S

O-RING

$6.99

$

In Stock, Qty 6

0

3

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

Note: (includes 2)

$43.99

$

In Stock, only 1 left!

0

4

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

5

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.99

$

In Stock, only 1 left!

0

7

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

8

Kohler 12 009 49-S

CLOSURE PLATE ASSEMBLY

Note: (includes 5 [qty 3], 9-15)

$494.99

$

Usually ships in 2-5 days

0

9

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

10

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

11

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

12

Kohler 12 153 05-S

O-RING (1.78" DIA)

$9.99

$

In Stock, only 2 left!

0

13

Kohler 12 096 21-S

COVER, OIL PUMP

$16.99

$

Usually ships in 2-5 days

0

14

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$16.99

$

In Stock, Qty 20+

0

15

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

16

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

17

Kohler 12 032 03-S

SEAL, OIL

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.99

$

In Stock, Qty 20+

0

19

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0
