CH13-22527 - Kohler Command PRO Single Engine, Made for Wood Mizer, 13hp, 9.7kW Starting System 7-27-57 Parts Diagram

Command PRO Single Engine, Made for Wood Mizer, 13hp, 9.7kW

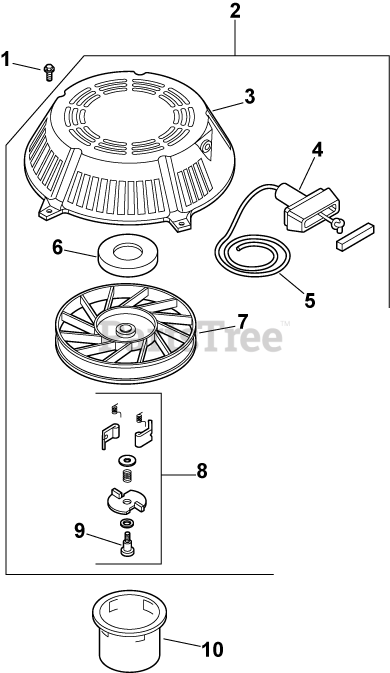

Starting System 7-27-57 Parts Diagram

  • Title

1

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$4.99

$

In Stock, only 3 left!

0

2

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

$125.99

$

In Stock, only 1 left!

0

3

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

4

Kohler 25 166 01-S

HANDLE, RECOIL STARTER

$19.99

$

In Stock, Qty 8

0

5

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

6

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

7

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

8

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

$

$

Not available

9

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

10

Kohler 15 109 01-S

CUP

$27.99

$

Usually ships in 2-5 days

0

1205002-S

Kohler 12 050 02-S

FILTER

Note: NOT ILLUSTRATED

$75.99

$

Usually ships in 2-5 days

0

1229001-S

Kohler 12 290 01-S

FASTENER

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0
