CH13-22539 - Kohler Command PRO Single Engine, Made for Dynamic Power Source, 13hp, 9.7kW Fuel System 8-27-227 Parts Diagram

Command PRO Single Engine, Made for Dynamic Power Source, 13hp, 9.7kW

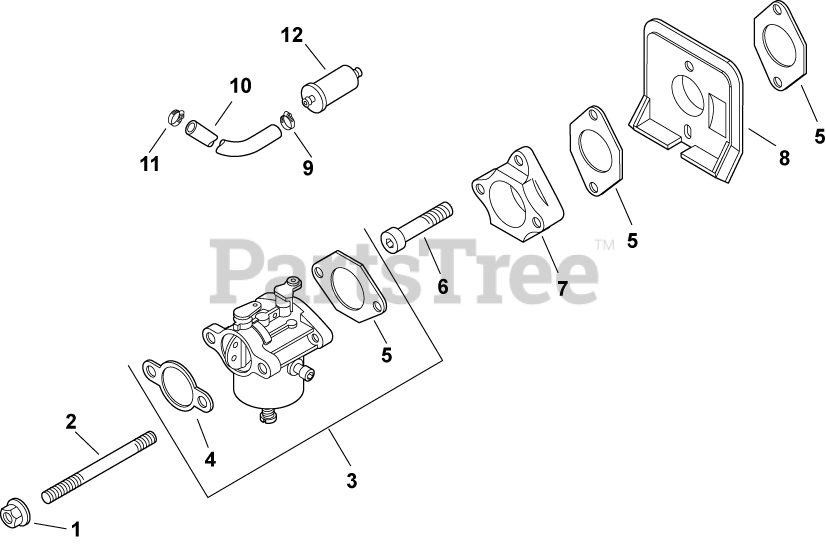

Fuel System 8-27-227 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$

$

Not available

3

Kohler 12 853 140-S

KIT, CARBURETOR w/GASKETS

Note: (includes 4,5)

$306.99

$

In Stock, only 2 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 5

0

6

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

8

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 2 left!

0

10

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 8

0

11

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 12

0

12

Kohler 24 050 03-S

FILTER, FUEL

$83.99

$

In Stock, only 2 left!

0

1275592-S

Kohler 12 755 92-S

KIT, HIGH ALTITUDE (+10,000 FT)

Note: NOT ILLUSTRATED

$27.99

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 2 left!

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$45.99

$

In Stock, only 2 left!

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$47.99

$

In Stock, only 1 left!

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$20.99

$

Usually ships in 2-5 days

0

2555901-S

Kohler 25 559 01-S

KIT, ELECTRIC FUEL PUMP

Note: NOT ILLUSTRATED

$370.99

$

Usually ships in 2-5 days

0
