CH15-44520 - Kohler Command PRO Single Engine, Made for E.P. Barrus, Ltd, 15hp, 11.2kW Fuel System 8-27-173 Parts Diagram

Command PRO Single Engine, Made for E.P. Barrus, Ltd, 15hp, 11.2kW

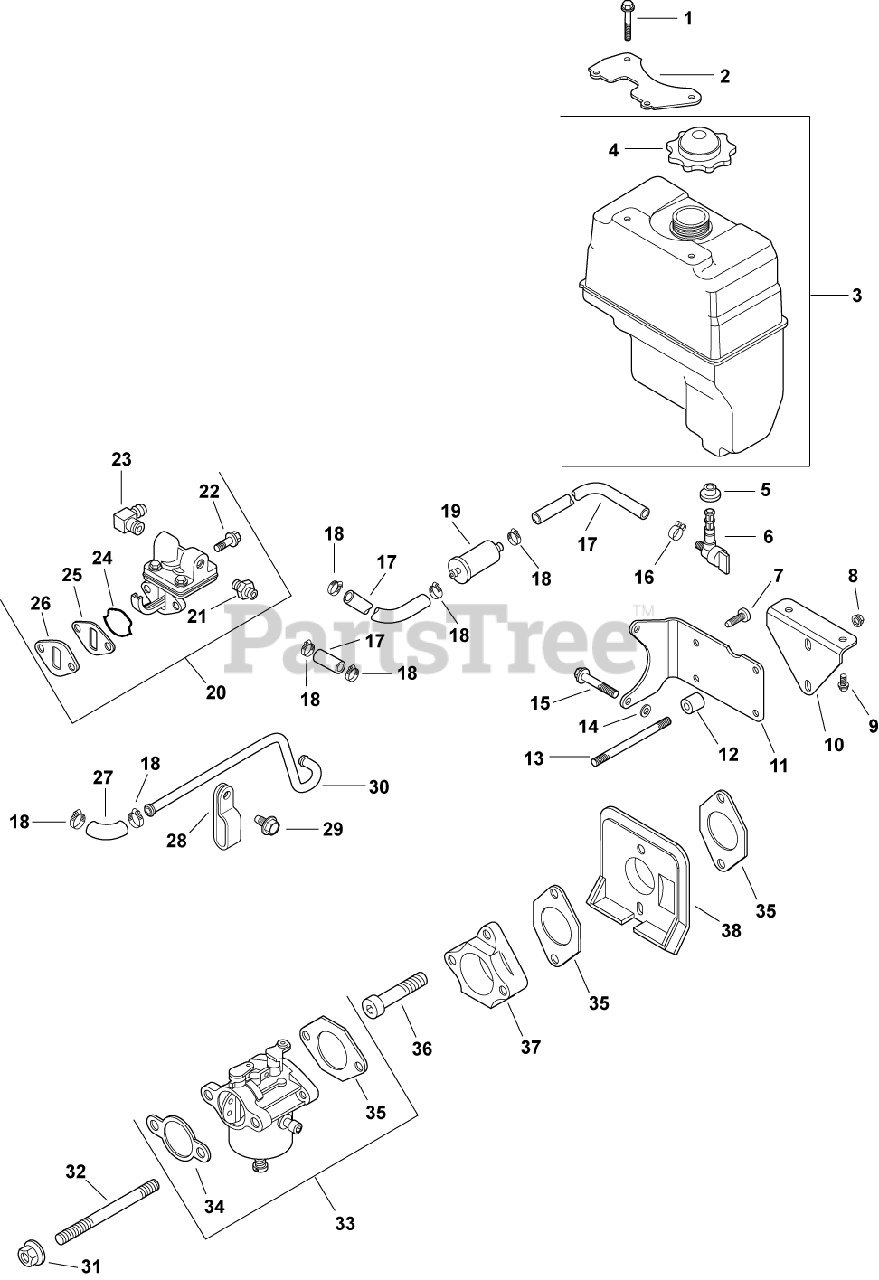

Fuel System 8-27-173 Parts Diagram

  • Title

1

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

2

Kohler 12 126 62-S

BRACKET, FUEL TANK

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 12 760 01-S

KIT, FUEL TANK

Note: (includes 4)

$

$

Not available

4

Kohler 25 173 20-S

CAP, FUEL TANK

$34.99

$

In Stock, only 1 left!

0

5

Kohler 25 313 01-S

BUSHING, FUEL TANK

$5.99

$

In Stock, Qty 9

0

6

Kohler 25 462 03-S

VALVE, FUEL SHUT-OFF

$26.99

$

In Stock, Qty 7

0

7

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

8

Kohler M-852080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

10

Kohler 12 126 18-S

BRACKET

$37.99

$

Usually ships in 2-5 days

0

11

Kohler 12 126 58-S

BRACKET, FUEL TANK

$21.99

$

In Stock, only 1 left!

0

12

Kohler 12 112 20-S

SPACER

$7.99

$

In Stock, only 3 left!

0

13

Kohler M-829133-S

STUD, M8X1.25X133-USE 25 755 54-S
(Superseded to 25 755 54-S)

$2.99

$

Usually ships in 2-5 days

0

14

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

15

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

16

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

17

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

18

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 12

0

19

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

20

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 21-26 & 25 141 06-S)

$48.99

$

In Stock, Qty 20+

0

21

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

22

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, Qty 20+

0

23

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.49

$

In Stock, only 1 left!

0

24

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 1 left!

0

25

Kohler 12 112 11-S

SPACER, FUEL TANK

$6.49

$

Usually ships in 2-5 days

0

26

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, Qty 14

0

27

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.49

$

In Stock, only 2 left!

0

28

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

29

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

30

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

31

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 17

0

32

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 7

0

33

Kohler 12 853 158-S

KIT, CARB W/GASKETS - USE 12 853 169-S
(Superseded to 12 853 169-S)

Note: (includes 34,35)

$263.99

$

In Stock, only 1 left!

0

34

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 20+

0

35

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 18

0

36

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

37

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

38

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 3 left!

0

2408616-S

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 20+

0

4715401-S

Kohler 47 154 01-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$4.99

$

In Stock, Qty 7

0

1211321-S

Kohler 12 113 21-S

DECAL, FUEL TANK - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$59.99

$

In Stock, only 1 left!

0
