CH15-44527 - Kohler Command PRO Single Engine, Made for Pitteri Violini, 15hp, 11.2kW Oil Pan/Lubrication 3-27-168 Parts Diagram

Command PRO Single Engine, Made for Pitteri Violini, 15hp, 11.2kW

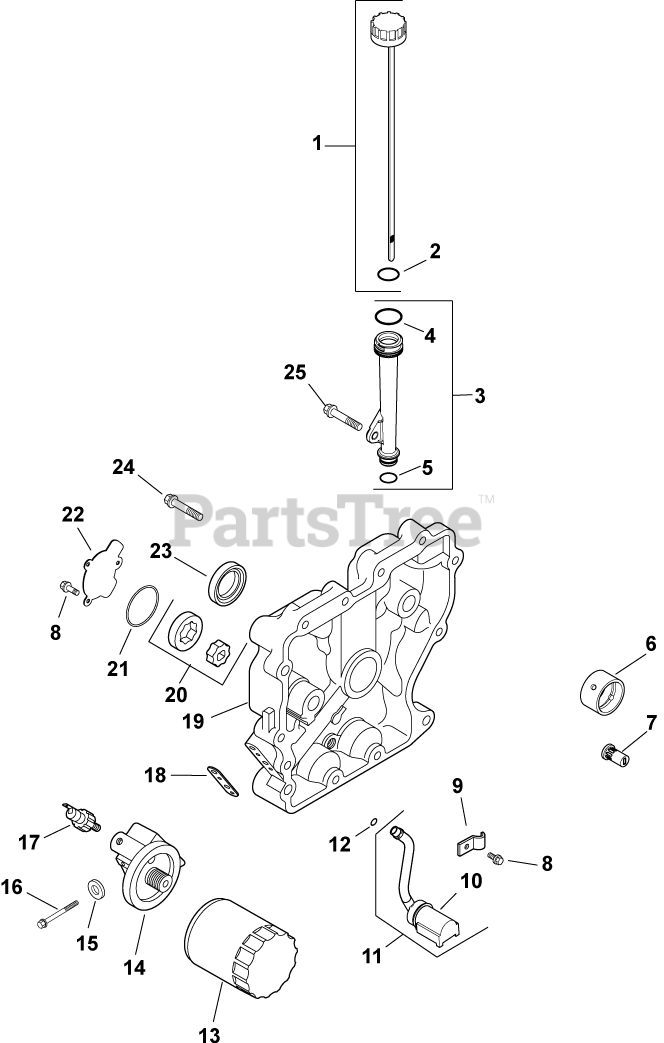

Oil Pan/Lubrication 3-27-168 Parts Diagram

  • Title

1

Kohler 12 038 23-S

KIT, OIL FILL CAP ASSEMBLY

Note: (includes 2)

$19.99

$

Usually ships in 2-5 days

0

2

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, only 3 left!

0

3

Kohler 12 123 34-S

KIT, OIL FILL TUBE - USE 12 755 113-S
(Superseded to 12 755 113-S)

Note: (includes 4,5)

$

$

Not available

4

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, only 3 left!

0

5

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 7

0

6

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

7

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$12.99

$

In Stock, only 1 left!

0

8

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

9

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 25 381 01-S

PICK-UP, OIL SCREEN

$53.99

$

Usually ships in 2-5 days

0

11

Kohler 12 755 73-S

KIT, OIL PICK-UP

Note: (includes 10)

$88.99

$

Usually ships in 2-5 days

0

12

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

14

Kohler 12 029 01-S

ADAPTER - DISCONTINUED

$

$

Not available

15

Kohler X-25-12-S

WASHER

$3.49

$

In Stock, only 2 left!

0

16

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

18

Kohler 12 041 07-S

GASKET, OIL FILTER ADAPTER

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 009 36-S

CLOSURE PLATE ASSEMBLY - DISCONTINUED

Note: (includes 6,7,8 [qty 3], 20-22)

$

$

Not available

20

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

21

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, Qty 7

0

22

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

23

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

In Stock, only 4 left!

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

25

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
