CH15-44546 - Kohler Command PRO Single Engine, Basic Version, 15hp, 11.2kW Ignition/Electrical 5-27-345 Parts Diagram

Command PRO Single Engine, Basic Version, 15hp, 11.2kW

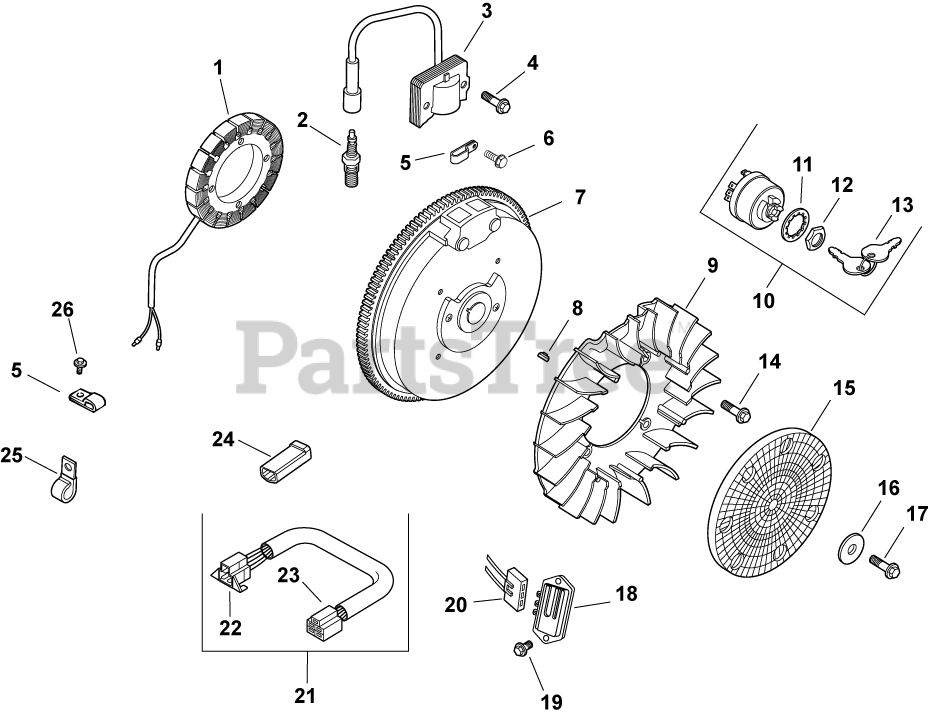

Ignition/Electrical 5-27-345 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

2

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

3

Kohler 12 584 04-S

MODULE, IGNITION

$32.99

$

In Stock, Qty 17

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

5

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

7

Kohler 12 025 84-S

FLYWHEEL ASSY PAINTED - USE 12 025 74-S
(Superseded to 12 025 74-S)

$392.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 2 left!

0

9

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

In Stock, only 1 left!

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

13

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.49

$

Usually ships in 2-5 days

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, only 4 left!

0

15

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

16

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

17

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

18

Kohler 25 403 08-S

REG-RECTIFIER (25 AMP)-USE 25 403 21-S
(Superseded to 25 403 39-S)

$85.99

$

In Stock, Qty 13

0

19

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

20

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 10

0

21

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

Note: (includes 22,23)

$55.99

$

Usually ships in 2-5 days

0

22

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

23

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

24

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

25

Kohler 47 154 01-S

CLIP, CABLE

$4.99

$

In Stock, Qty 7

0

26

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

1217656-S

Kohler 12 176 56-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$89.99

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4130401-S

Kohler 41 304 01-S

FUSE

Note: NOT ILLUSTRATED

$

$

Not available
