CH15-44548 - Kohler Command PRO Single Engine, Made for Dynamic Power, 15hp, 11.2kW Ignition/Electrical 5-27-281 Parts Diagram

Command PRO Single Engine, Made for Dynamic Power, 15hp, 11.2kW

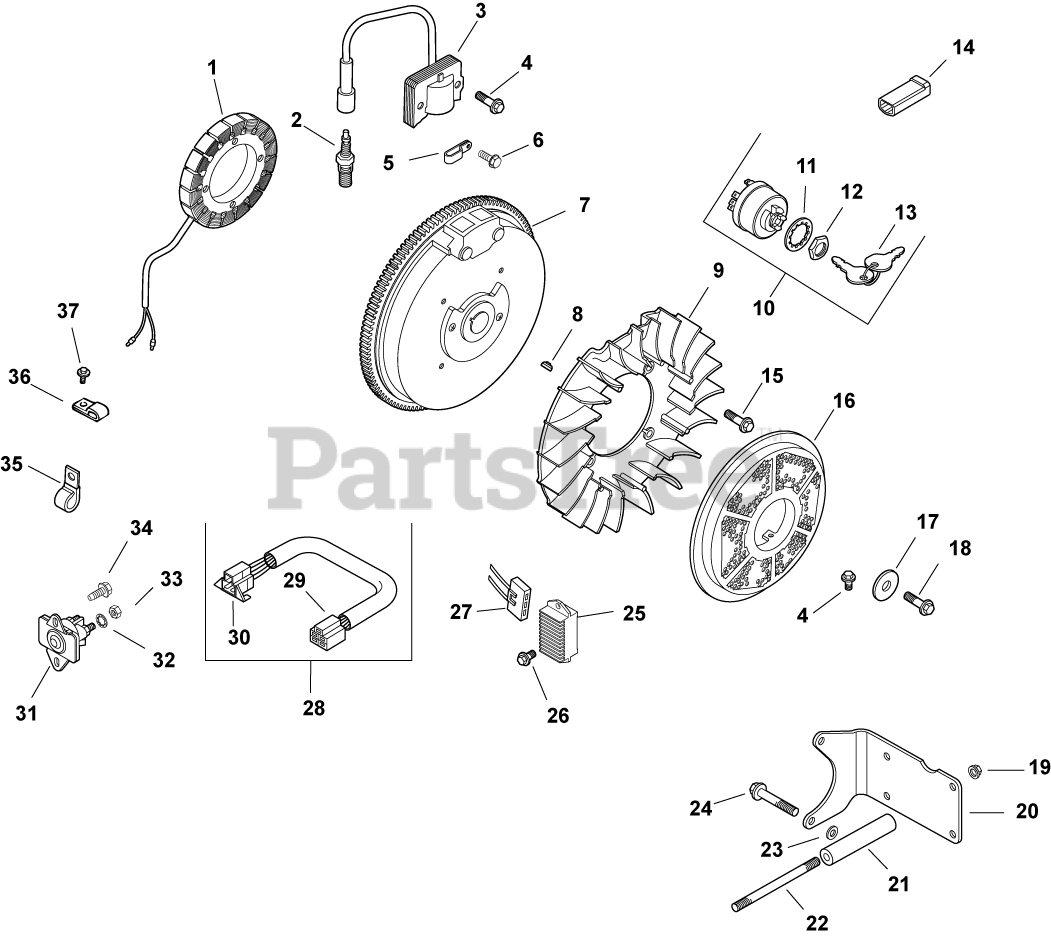

Ignition/Electrical 5-27-281 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

2

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

3

Kohler 12 584 04-S

MODULE, IGNITION

$32.99

$

In Stock, Qty 19

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

5

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

7

Kohler 12 025 32-S

FLYWHEEL

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 4 left!

0

9

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

Usually ships in 2-5 days

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

13

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.49

$

Usually ships in 2-5 days

0

14

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

15

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

17

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

18

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

Usually ships in 2-5 days

0

19

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 11

0

20

Kohler 12 126 58-S

BRACKET, FUEL TANK

$21.99

$

In Stock, only 1 left!

0

21

Kohler 12 112 19-S

SPACER

$85.99

$

Usually ships in 2-5 days

0

22

Kohler M-829133-S

STUD, M8X1.25X133-USE 25 755 54-S
(Superseded to 25 755 54-S)

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

25

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 39-S)

$85.99

$

In Stock, Qty 17

0

26

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

27

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 11

0

28

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

Note: (includes 29,30)

$55.99

$

Usually ships in 2-5 days

0

29

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

30

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

31

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$75.99

$

In Stock, Qty 6

0

32

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, Qty 6

0

33

Kohler 25 100 19-S

NUT, JAM 1/4-20 GRADE 2

$3.49

$

Usually ships in 2-5 days

0

34

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

35

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

36

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

37

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

X-25-78-S

Kohler X-25-78-S

WASHER, PLAIN 1/4"

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 2 left!

0

1208613-S

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0

2517606-S

Kohler 25 176 06-S

HARNESS, WIRING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251809-S

Kohler 12 518 09-S

LEAD, STARTER SOLENOID - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1251834-S

Kohler 12 518 34-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1217602-S

Kohler 12 176 02-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$128.99

$

Usually ships in 2-5 days

0

2545218-S

Kohler 25 452 18-S

TERMINAL

Note: NOT ILLUSTRATED

$7.49

$

Usually ships in 2-5 days

0

2545219-S

Kohler 25 452 19-S

TERMINAL

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

5217618-S

Kohler 52 176 18-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$62.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551829-S

Kohler 25 518 29-S

LEAD, GROUND SOLENOID

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4130401-S

Kohler 41 304 01-S

FUSE

Note: NOT ILLUSTRATED

$

$

Not available
