CH15-44549 - Kohler Command PRO Single Engine, Made for Koeppl, 15hp, 11.2kW Blower Housing & Baffles 6-27-156 Parts Diagram

Command PRO Single Engine, Made for Koeppl, 15hp, 11.2kW

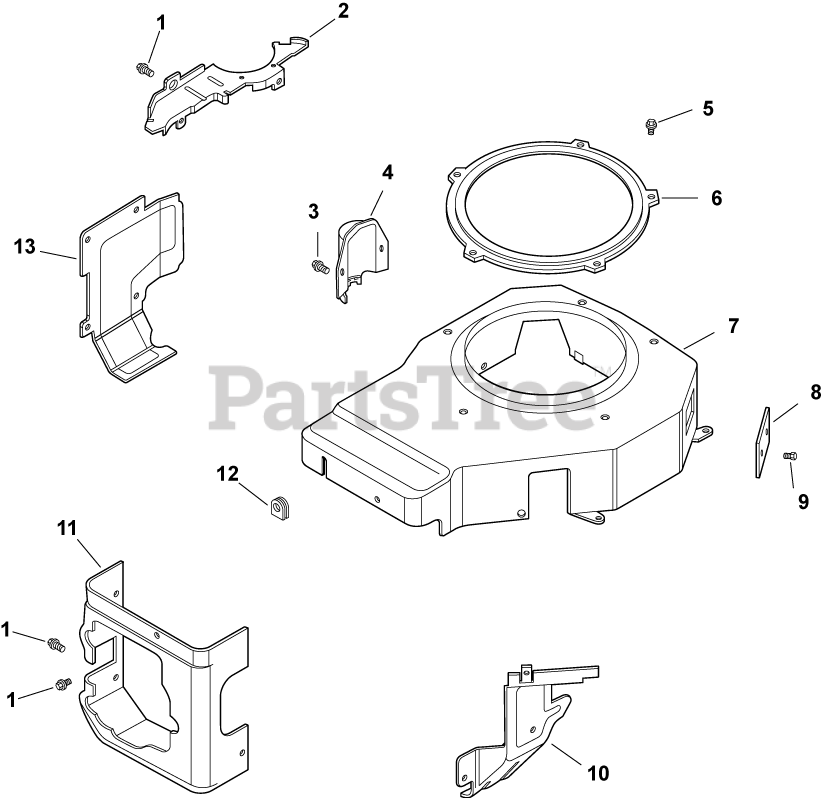

Blower Housing & Baffles 6-27-156 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 146 07-S

PLATE, BACKING

$

$

Not available

3

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$4.99

$

In Stock, only 3 left!

0

4

Kohler 12 096 39-S

COVER, STARTER

$29.99

$

In Stock, only 1 left!

0

5

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$4.99

$

In Stock, only 3 left!

0

6

Kohler 12 314 10-S

GUARD, GRASS SCREEN - DISCONTINUED

$

$

Not available

7

Kohler 12 027 69-S

KIT, BLOWER HOUSING - DISCONTINUED

$

$

Not available

8

Kohler 12 096 27-S

COVER, REG/RECTIFIER - DISCONTINUED

$

$

Not available

9

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 1 left!

0

10

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$72.99

$

Usually ships in 2-5 days

0

11

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

12

Kohler 12 313 03-S

GROMMET

$

$

Not available

13

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 3 left!

0

1231305-S

Kohler 12 313 05-S

GROMMET

Note: NOT ILLUSTRATED

$24.99

$

Usually ships in 2-5 days

0

2513916-S

Kohler 25 139 16-S

PLUG, BUTTON 9/16

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0

2513917-S

Kohler 25 139 17-S

PLUG, BUTTON 1/2

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$12.99

$

Usually ships in 2-5 days

0
