CH15-44549 - Kohler Command PRO Single Engine, Made for Koeppl, 15hp, 11.2kW Fuel System 8-27-279 Parts Diagram

Command PRO Single Engine, Made for Koeppl, 15hp, 11.2kW

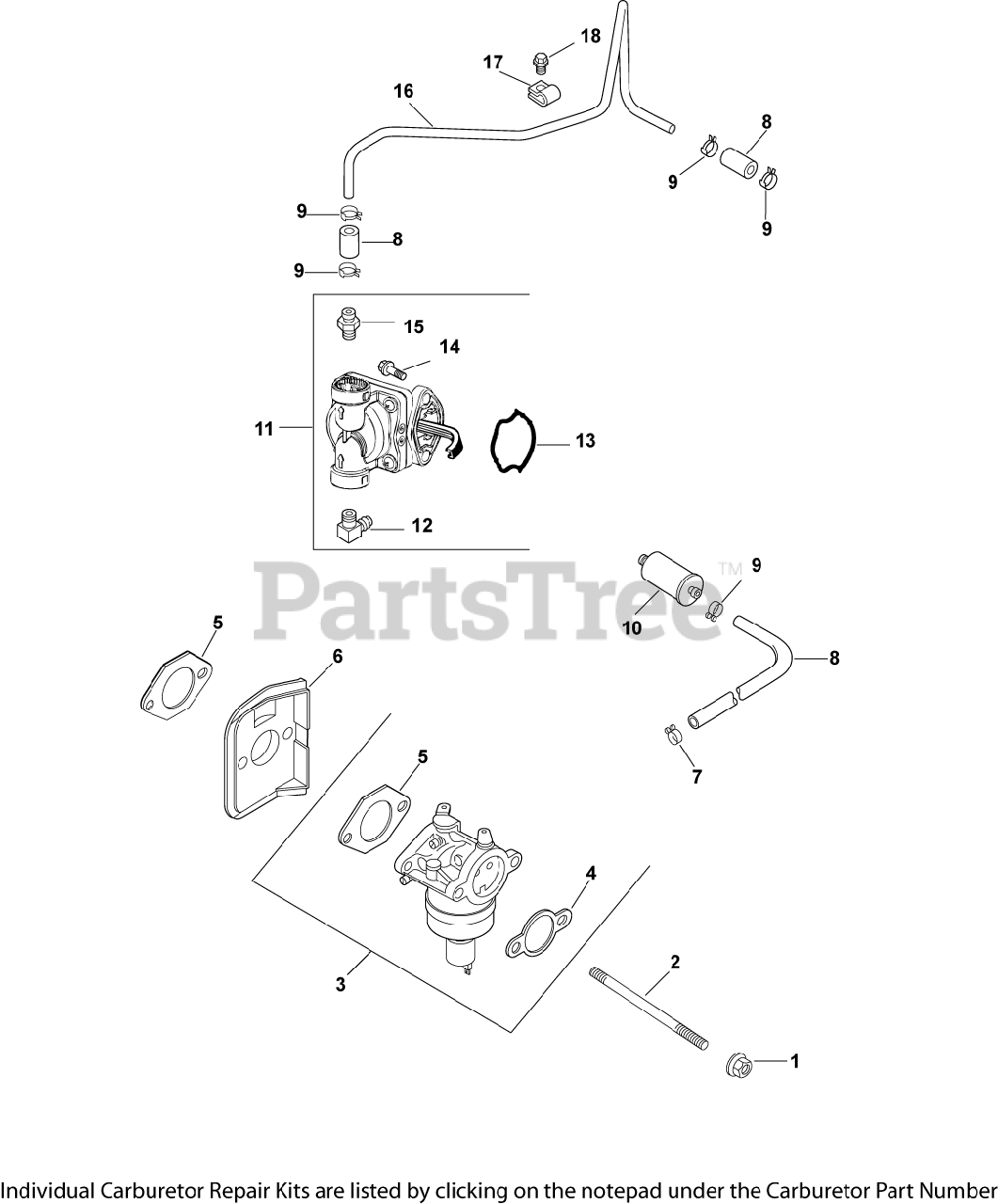

Fuel System 8-27-279 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$

$

Not available

3

Kohler 12 853 158-S

KIT, CARB W/GASKETS - USE 12 853 169-S
(Superseded to 12 853 169-S)

Note: (includes 4,5)

$298.99

$

Usually ships in 2-5 days

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 12

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 12

0

6

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

7

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 14

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

10

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$12.99

$

In Stock, Qty 20+

0

11

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 12-15)

$56.99

$

In Stock, only 3 left!

0

12

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.99

$

Usually ships in 2-5 days

0

13

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, Qty 6

0

14

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.99

$

In Stock, only 1 left!

0

15

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.99

$

In Stock, Qty 8

0

16

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

17

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

18

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$78.99

$

In Stock, Qty 5

0
