CH15-44551 - Kohler Command PRO Single Engine, Made for Gardner, 15hp, 11.2kW Fuel System 8-27-126 Parts Diagram

Command PRO Single Engine, Made for Gardner, 15hp, 11.2kW

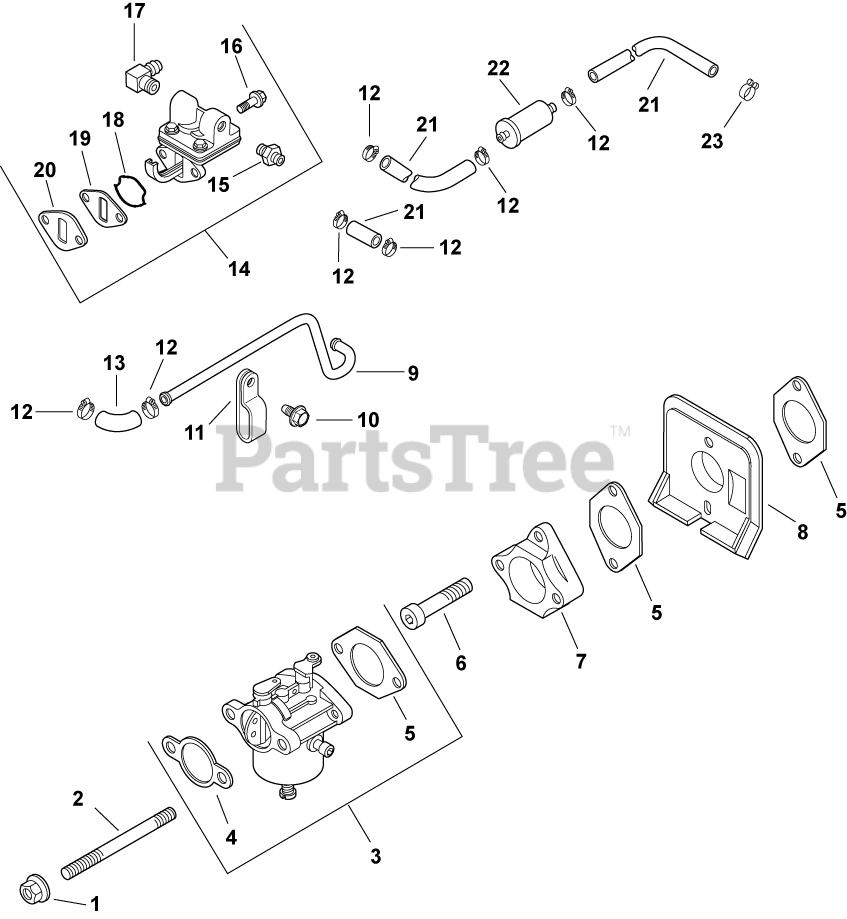

Fuel System 8-27-126 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, Qty 6

0

3

Kohler 12 853 158-S

KIT, CARB W/GASKETS - USE 12 853 169-S
(Superseded to 12 853 169-S)

Note: (After S/N 3536500001)

$298.99

$

In Stock, only 1 left!

0

1285375-S

Kohler 12 853 75-S

KIT, CARBURETOR W/GASKET - (#DSC)

Note: (Before S/N 3536500011)

$

$

Not available

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

6

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

8

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, Qty 6

0

9

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

10

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 5

0

11

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

13

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

In Stock, only 2 left!

0

14

Kohler 12 559 02-S

KIT, FUEL PUMP

$48.99

$

In Stock, Qty 20+

0

15

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, Qty 11

0

16

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$3.49

$

In Stock, only 2 left!

0

17

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$7.99

$

Usually ships in 2-5 days

0

18

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, Qty 8

0

19

Kohler 12 112 11-S

SPACER, FUEL TANK

$6.49

$

Usually ships in 2-5 days

0

20

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, Qty 17

0

21

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

22

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

23

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 20+

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1275702-S

Kohler 12 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$13.99

$

In Stock, Qty 7

0

1275703-S

Kohler 12 757 03-S

KIT, REPAIR CARBURETOR (PUMP FEED)

Note: NOT ILLUSTRATED

$35.99

$

In Stock, Qty 19

0

1275708-S

Kohler 12 757 08-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$36.99

$

Usually ships in 2-5 days

0

1275737-S

Kohler 12 757 37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$18.99

$

In Stock, Qty 20+

0

1275733-S

Kohler 12 757 33-S

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$149.99

$

In Stock, only 4 left!

0

1252104-S

Kohler 12 521 04-S

KIT, INLET SEAT (PRESSURE) CMD

Note: NOT ILLUSTRATED

$60.99

$

In Stock, Qty 5

0
