CH15-44551 - Kohler Command PRO Single Engine, Made for Gardner, 15hp, 11.2kW Oil Pan/Lubrication 3-27-128 Parts Diagram

Command PRO Single Engine, Made for Gardner, 15hp, 11.2kW

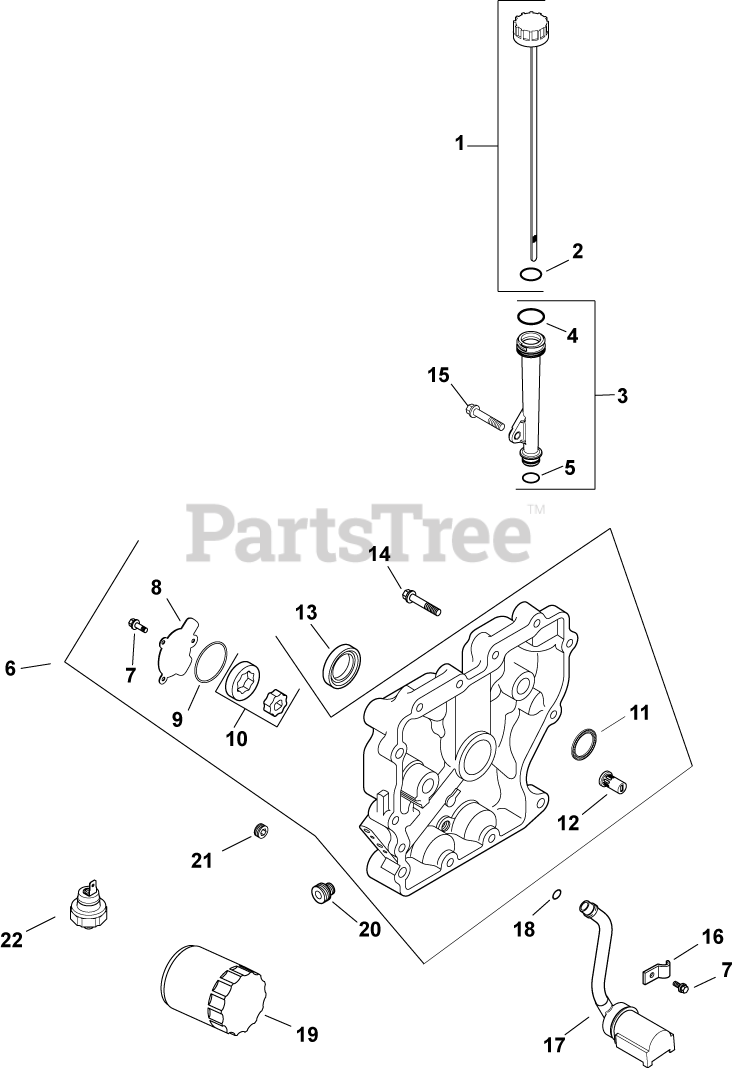

Oil Pan/Lubrication 3-27-128 Parts Diagram

  • Title

1

Kohler 12 038 23-S

KIT, OIL FILL CAP ASSEMBLY

Note: (includes 2)

$19.99

$

Usually ships in 2-5 days

0

2

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, only 3 left!

0

3

Kohler 12 123 34-S

KIT, OIL FILL TUBE - USE 12 755 113-S
(Superseded to 12 755 113-S)

Note: (includes 4,5)

$

$

Not available

4

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, only 3 left!

0

5

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 7

0

6

Kohler 12 009 49-S

CLOSURE PLATE ASSEMBLY

Note: (includes 7 [qty 3], 8-12)

$494.99

$

Usually ships in 2-5 days

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

8

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

9

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, Qty 7

0

10

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

11

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

12

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$12.99

$

In Stock, only 1 left!

0

13

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

In Stock, only 2 left!

0

14

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

15

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

16

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

17

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

18

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 28 050 01-S

FILTER, OIL

$22.99

$

In Stock, only 2 left!

0

20

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

21

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

22

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 3 left!

0

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
