CH16-45509 - Kohler Command PRO Single Engine, Made for Cub Cadet, 16hp, 11.9kW Ignition/Electrical 5-27-253 Parts Diagram

Command PRO Single Engine, Made for Cub Cadet, 16hp, 11.9kW

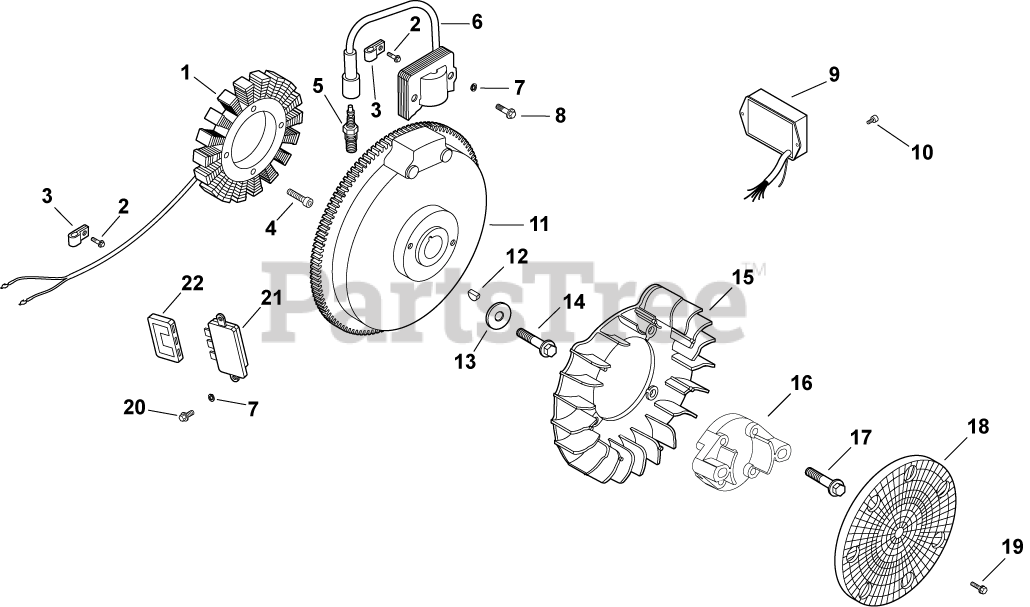

Ignition/Electrical 5-27-253 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (Includes 25 452 01)

$149.99

$

In Stock, Qty 10

0

2

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

3

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

4

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 1 left!

0

5

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

6

Kohler 12 584 17-S

MODULE, IGNITION

$123.99

$

In Stock, only 2 left!

0

7

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

8

Kohler 12 086 35-S

SCREW, SCKT THRD FRMM5X0.8X20 - DISCONTINUED

$

$

Not available

9

Kohler 12 584 12-S

MODULE, DIGITAL SPD ADV-USE 12 707 01-S
(Superseded to 12 707 01-S)

$216.99

$

In Stock, only 1 left!

0

10

Kohler M-461013-S

SCREW, PHL THD FRM M4.2X13

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 12 025 46-S

FLYWHEEL - DISCONTINUED

$

$

Not available

12

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

13

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

14

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

16

Kohler 24 029 12-S

ADAPTER, DRIVE SHAFT

$40.99

$

In Stock, only 2 left!

0

17

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0

18

Kohler 12 162 05-S

SCREEN, GRASS

$

$

Not available

19

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

20

Kohler 12 086 42-S

SCREW, WSH HD TAP #8-18X1"-DISC.

$

$

Not available

21

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$126.99

$

Usually ships in 2-5 days

0

22

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$29.99

$

In Stock, only 2 left!

0

1245202-S

Kohler 12 452 02-S

TERMINAL - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1217651-S

Kohler 12 176 51-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

2451812-S

Kohler 24 518 12-S

LEAD

Note: (6"-12 gauge-insulated grip barrel eyelet terminals) NOT ILLUSTRATED

$5.99

$

In Stock, only 2 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

M-445010-S

Kohler M-445010-S

SCREW, THRD FRM M4X0.7X10

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 4 left!

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

No Description

$

$

Not available
