CH18-62501 - Kohler Command PRO Twin Engine, Basic Version, 18hp, 13.4kW Air Intake Group 10-24-291 Parts Diagram

Command PRO Twin Engine, Basic Version, 18hp, 13.4kW

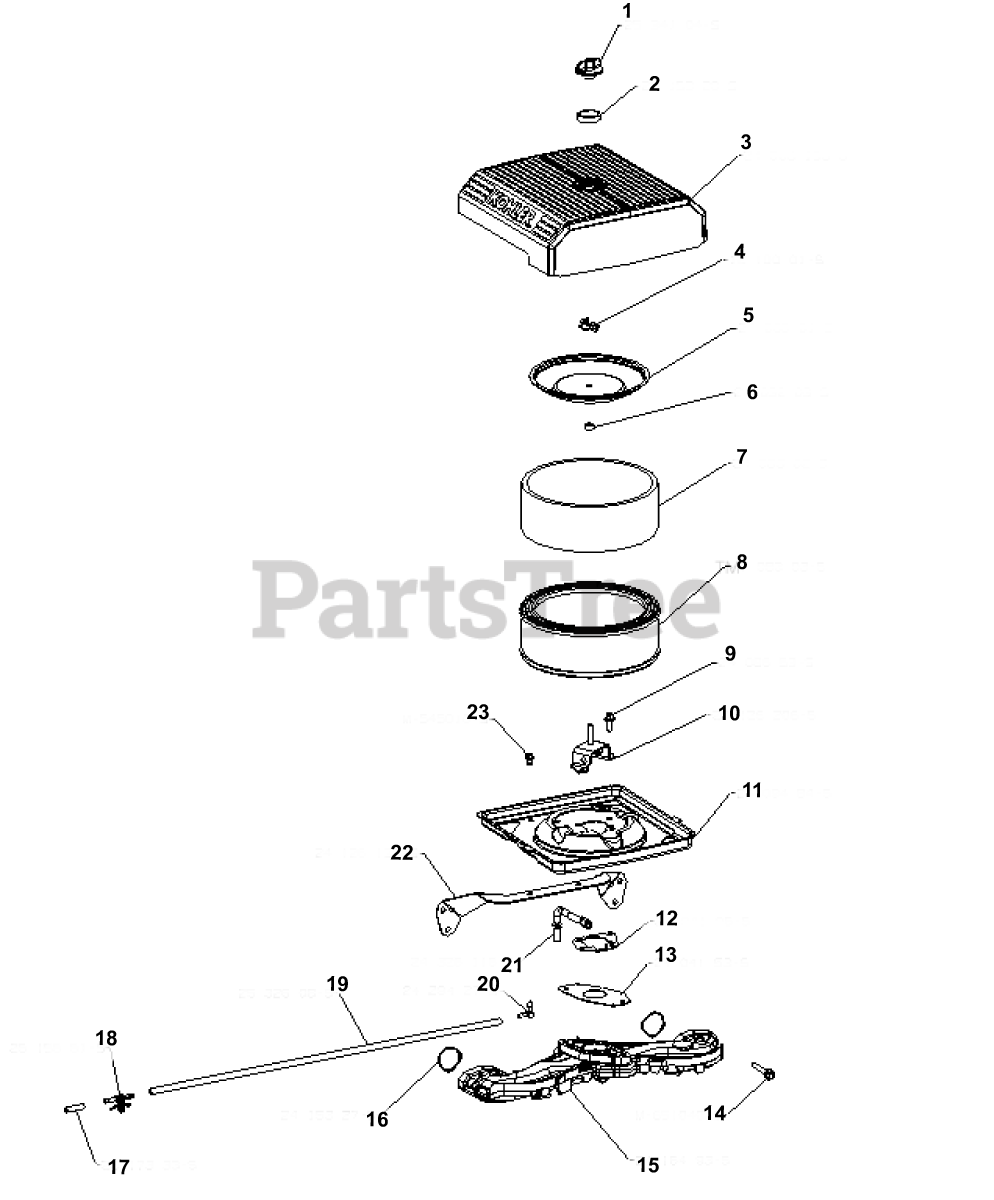

Air Intake Group 10-24-291 Parts Diagram

  • Title

1

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

In Stock, Qty 12

0

2

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 12

0

3

Kohler 24 096 26-S

COVER, AIR CLEANER

$58.99

$

Usually ships in 2-5 days

0

4

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 12

0

5

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, Qty 9

0

6

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 17

0

7

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, Qty 14

0

8

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

9

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.49

$

In Stock, Qty 10

0

10

Kohler 24 126 206-S

BRACKET, AIR CLEANER

$10.99

$

In Stock, Qty 5

0

11

Kohler 24 094 84-S

KIT, AIR CLEANER BASE

$18.99

$

In Stock, only 3 left!

0

12

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 10

0

14

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 13

0

15

Kohler 24 164 93-S

KIT, INTAKE MANIFOLD
(Superseded to 24 164 276-S)

$184.99

$

Usually ships in 2-5 days

0

16

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.49

$

In Stock, Qty 9

0

17

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

18

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"
(Superseded to 24 326 143-S)

$5.49

$

In Stock, Qty 12

0

20

Kohler 24 294 27-S

CONNECTOR, EVAPORATIVE HOSE

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 24 326 116-S

HOSE, EVAPORATIVE-USE 24 326 131-S
(Superseded to 24 326 131-S)

$4.49

$

In Stock, only 1 left!

0

22

Kohler 24 126 130-S

BRACKET, AIR CLEANER BASE

$10.99

$

In Stock, Qty 5

0

23

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

5475501-S

Kohler 54 755 01-S

KIT, KNOB W/SEAL

$9.49

$

In Stock, Qty 17

0
