CH18-62509 - Kohler Command PRO Twin Engine, Made for MTD, 18hp, 13.4kW Ignition/ Charging Group 5-24-2 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Made for MTD, 18hp, 13.4kW

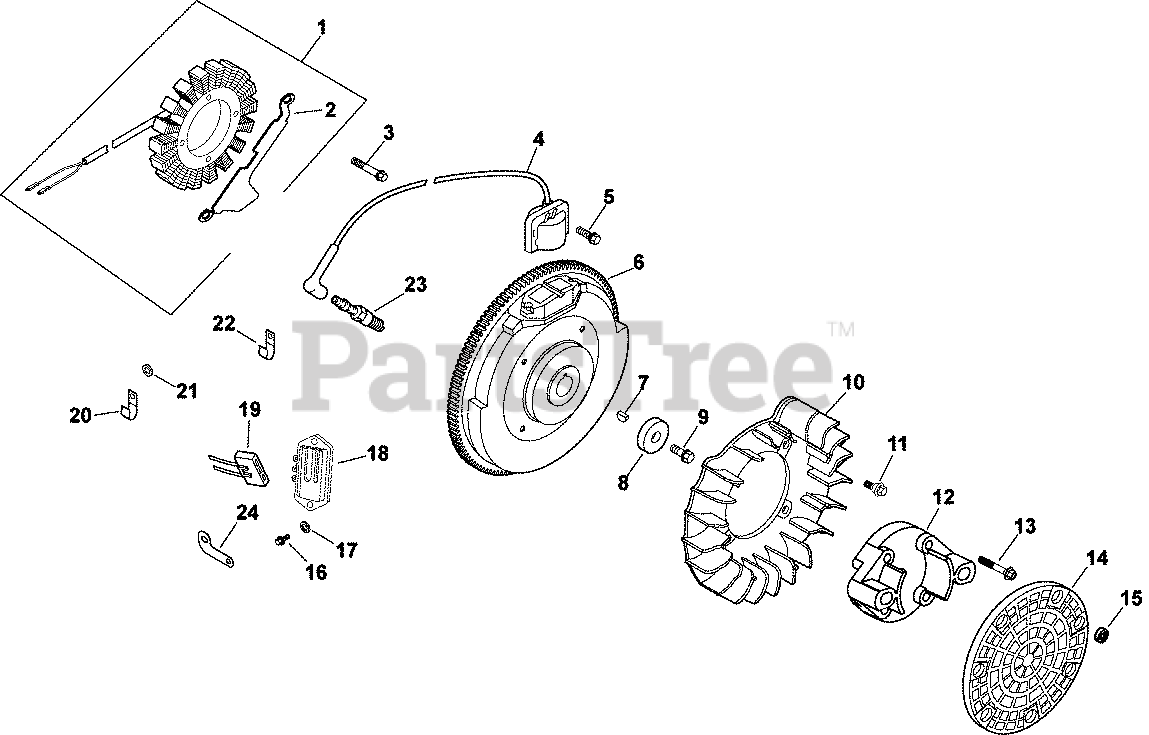

Ignition/ Charging Group 5-24-2 (TP-2439-C) Parts Diagram

  • Title

1

Kohler 54 755 09-S

STATOR KIT - USE 237878-S
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 14

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 12

0

4

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$93.99

$

Usually ships in 2-5 days

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

6

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$310.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 5

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 9

0

10

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 8

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

12

Kohler 24 029 09-S

ADAPTER, FRONT DRIVE

$81.99

$

Usually ships in 2-5 days

0

13

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

14

Kohler 24 162 02-S

SCREEN, GRASS (#DSC)
(Superseded to 24 162 36-S)

$25.99

$

Usually ships in 2-5 days

0

15

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, Qty 20+

0

16

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

17

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

18

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$105.99

$

Usually ships in 2-5 days

0

19

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, Qty 14

0

20

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

23

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

24

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

In Stock, only 1 left!

0

2417608-S

Kohler 24 176 08-S

HARNESS, WIRE-USE 24 176 171-S
(Superseded to 24 176 171-S)

Note: NOT ILLUSTRATED

$117.99

$

In Stock, only 1 left!

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

No Description

$

$

Not available
