CH18-62509 - Kohler Command PRO Twin Engine, Made for MTD, 18hp, 13.4kW Starting System 7-24-200 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Made for MTD, 18hp, 13.4kW

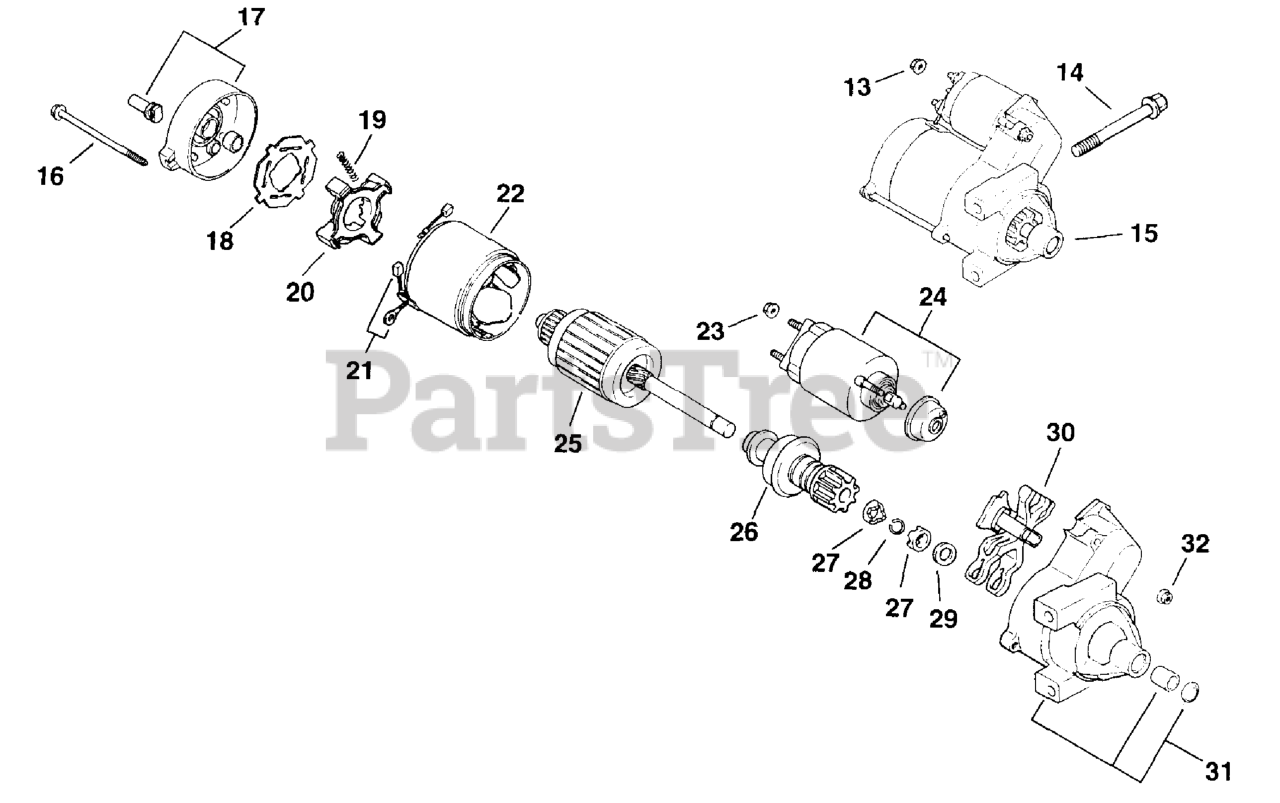

Starting System 7-24-200 (TP-2439-C) Parts Diagram

  • Title

13

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, Qty 20+

0

14

Kohler M-0839080

Screw, hex. flange M8x1.25x80.6

$

$

Not available

15

Kohler 12 098 03-S

USE 25 098 08-S STARTER
(Superseded to 25 098 09-S)

Note: Includes 16-32. Use before Serial No. 2309800017

$264.99

$

Usually ships in 2-5 days

0

16

Kohler 52 211 05-S

THRU BOLT

$11.99

$

Usually ships in 2-5 days

0

17

Kohler 12 301 01-S

COMMUTATOR END CAP - DISCONTINUED

$

$

Not available

18

Kohler 52 168 01-S

INSULATOR

$35.99

$

Usually ships in 2-5 days

0

19

Kohler 52 089 09-S

SPRING, BRUSH

$7.99

$

Usually ships in 2-5 days

0

20

Kohler 52 323 03-S

BRUSH HOLDER

$23.99

$

Usually ships in 2-5 days

0

21

Kohler 52 221 01-S

BRUSH & SPRING KIT

Note: Includes 19

$130.99

$

Usually ships in 2-5 days

0

22

Kohler 12 471 01-S

FRAME W/BRUSHES - DISCONTINUED

$

$

Not available

23

Kohler 52 100 09-S

NUT

$5.99

$

Usually ships in 2-5 days

0

24

Kohler 52 435 02-S

SOLENOID

$566.99

$

Usually ships in 2-5 days

0

25

Kohler 12 170 03-S

ARMATURE - DISCONTINUED

$

$

Not available

26

Kohler 12 239 01-S

DRIVE PINION

$361.99

$

Usually ships in 2-5 days

0

27

Kohler 52 100 08

KIT - USE 24 755 84
(Superseded to 24 755 84)

$62.99

$

Usually ships in 2-5 days

0

28

Kohler 52 141 03

KIT - USE 24 755 84
(Superseded to 24 755 84)

$62.99

$

Usually ships in 2-5 days

0

29

Kohler 52 468 14

KIT - USE 24 755 84
(Superseded to 24 755 84)

$62.99

$

Usually ships in 2-5 days

0

30

Kohler 12 090 10-S

LEVER, DRIVE

$91.99

$

Usually ships in 2-5 days

0

31

Kohler 12 081 02-S

DRIVE END CAP

$432.99

$

Usually ships in 2-5 days

0

32

Kohler 52 100 10-S

NUT

$5.49

$

Usually ships in 2-5 days

0
