CH18-62553 - Kohler Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW Air Intake/Filtration Parts Diagram

Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW

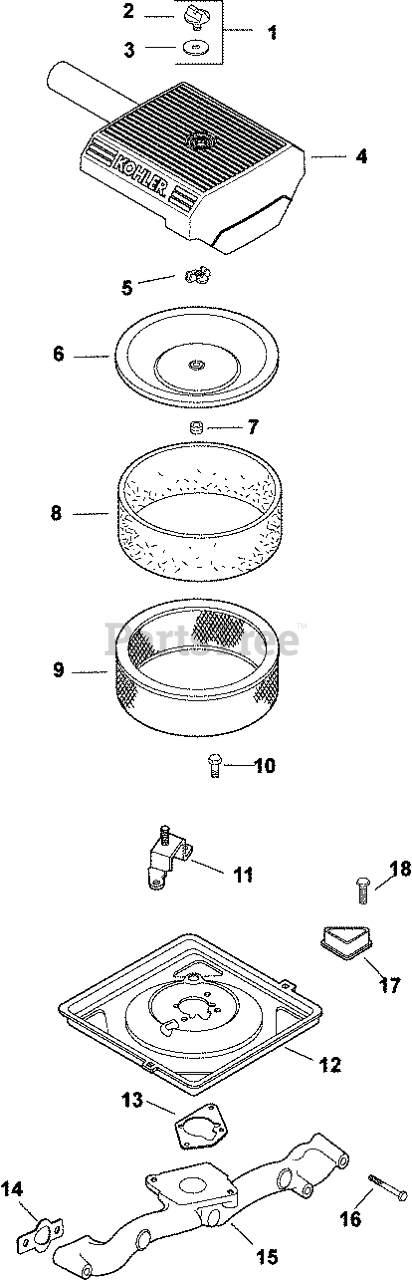

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler 54 755 01-S

KIT, KNOB W/SEAL

Note: (includes 2,3)

$9.49

$

In Stock, Qty 18

0

2

Kohler 25 341 03-S

KNOB, COVER
(Superseded to 25 341 04-S)

$7.99

$

In Stock, only 2 left!

0

3

Kohler 24 153 20-S

O-RING

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 096 46-S

COVER, AIR CLEANER

$122.99

$

Usually ships in 2-5 days

0

5

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 20+

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

7

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

9

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$24.99

$

In Stock, Qty 15

0

10

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 10

0

11

Kohler 24 126 21-S

BRACKET,AIR CLEANERBASE-USE 24 126 206-S
(Superseded to 24 126 206-S)

$10.99

$

In Stock, only 2 left!

0

12

Kohler 24 094 07-S

BASE ASSY, AIR CLEANER-USE 24 094 89-S
(Superseded to 24 094 89-S)

$266.99

$

Usually ships in 2-5 days

0

13

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

14

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, only 4 left!

0

15

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$291.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, only 3 left!

0

17

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$5.99

$

In Stock, Qty 9

0

18

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

2411206-S

Kohler 24 112 06-S

SPACER, AIR CLEANER

Note: NOT ILLUSTRATED

$119.99

$

Usually ships in 2-5 days

0
