CH18-62553 - Kohler Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW Engine Controls 9-24-57 Parts Diagram

Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW

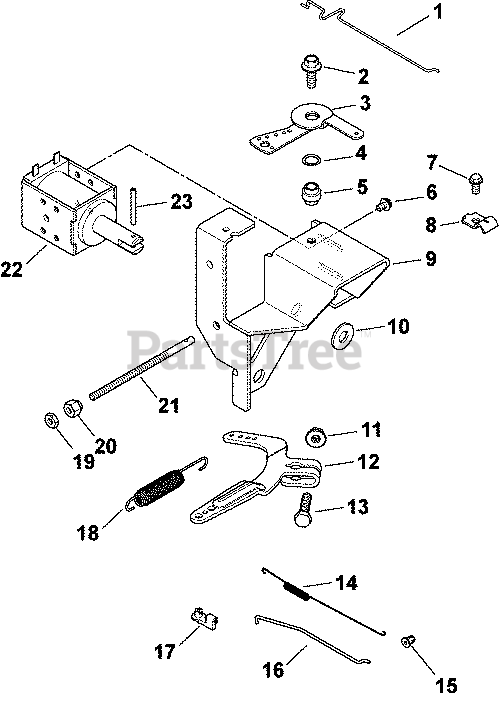

Engine Controls 9-24-57 Parts Diagram

  • Title

1

Kohler 24 079 21-S

LINKAGE, CHOKE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

2

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

3

Kohler 47 090 40-S

LEVER

$73.99

$

In Stock, only 1 left!

0

4

Kohler 275690-S

WASHER, SPRING 11/32"

$6.49

$

In Stock, only 2 left!

0

5

Kohler 47 112 19-S

SPACER
(Superseded to 25 112 34-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 25 086 96-S

SCREW, WSH HD TAP #8-32X1/4"

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 109-S

SCREW,WSH HD TAP #10-24X13/32"

$3.49

$

Usually ships in 2-5 days

0

8

Kohler 235778-S

CLAMP

$10.99

$

Usually ships in 2-5 days

0

9

Kohler 24 126 51-S

BRACKET, SOLENOID - DISCONTINUED

$

$

Not available

10

Kohler X-25-5-S

WASHER

$2.49

$

Usually ships in 2-5 days

0

11

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 16

0

12

Kohler 24 090 23-S

LEVER, GOVERNOR - DISCONTINUED

$

$

Not available

13

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

14

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 8

0

15

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 14

0

16

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, only 1 left!

0

17

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 20+

0

18

Kohler 24 089 15-S

SPRING, GOVERNOR (CLEAR)

$6.99

$

In Stock, only 1 left!

0

19

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

$3.49

$

In Stock, only 1 left!

0

20

Kohler 25 100 06-S

NUT, ADJUSTING

$8.49

$

Usually ships in 2-5 days

0

21

Kohler 24 411 03-S

ROD, SPEED CONTROL

$15.99

$

Usually ships in 2-5 days

0

22

Kohler 24 435 06-S

SOLENOID, IDLE

$156.99

$

In Stock, only 3 left!

0

23

Kohler X-280-25-S

PIN

$3.49

$

In Stock, Qty 11

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 20+

0
